Connecting Earth Ground to an MX150
To connect earth ground to the MX150:
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in
which the router is mounted.
2. Place the grounding lug attached to the grounding cable over the protective earthing
terminal. See Figure 16 on page 86.

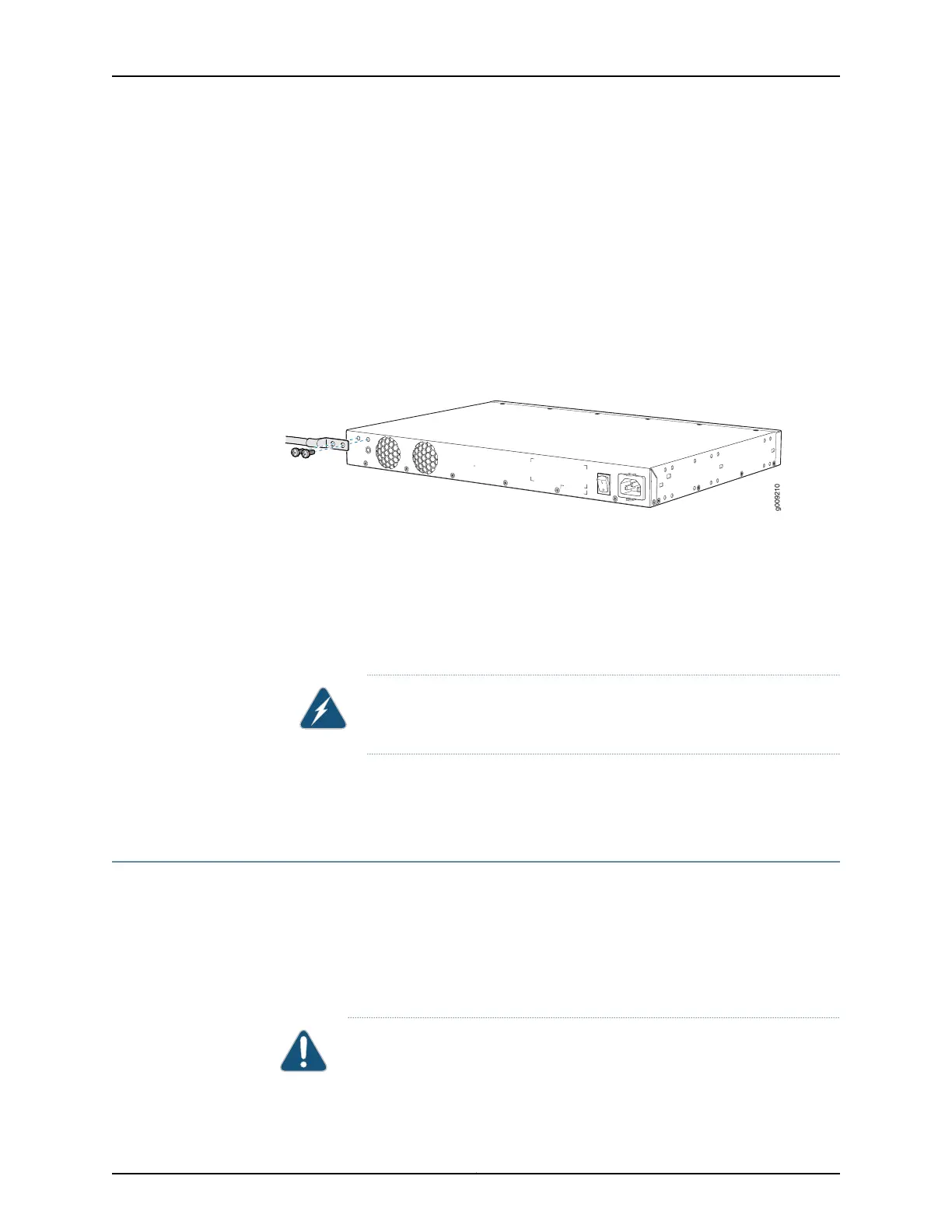

Figure 16: Connecting a Grounding Cable to an MX150
g009210
3. Secure the grounding lug to the protective earthing terminal with the washers and
screws.
4. Dress the grounding cable and ensure that it does not touch or block access to other
device components.
WARNING: Ensure that the cable does not drape where people could trip
over it.
Related
Documentation
Connecting AC Power to an MX150 on page 86•
Connecting AC Power to an MX150
The power supply in an MX150 is located on the rear panel.
Ensure that you have the following parts and tools available:
•
A power cord appropriate for your geographical location
•
A power cord retainer clip
CAUTION: An MX150 gets additional grounding when you plug the power
supply in the device into a grounded AC power outlet by using the AC power
