Juniper MX150 Hardware Guide

Table 5: Link activity LED on the Network Ports and Uplink Ports in MX150
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link activity.
•
On steadily—The port and the link are active, but there is no link activity.
•
Off—The port is not active.
GreenLink activity
Figure 6 on page 9 shows the LEDs that indicate the status of one of the three port
parameters—speed, duplex mode, and administrative status. Use the Mode button on
the far right side of the front panel to display the status LED for the different port
parameters. You can tell which port parameter (speed, duplex mode, or administrative
status) is indicated by the ST LED by looking at which port parameter LED (SPD, DX, or
EN) is lit.

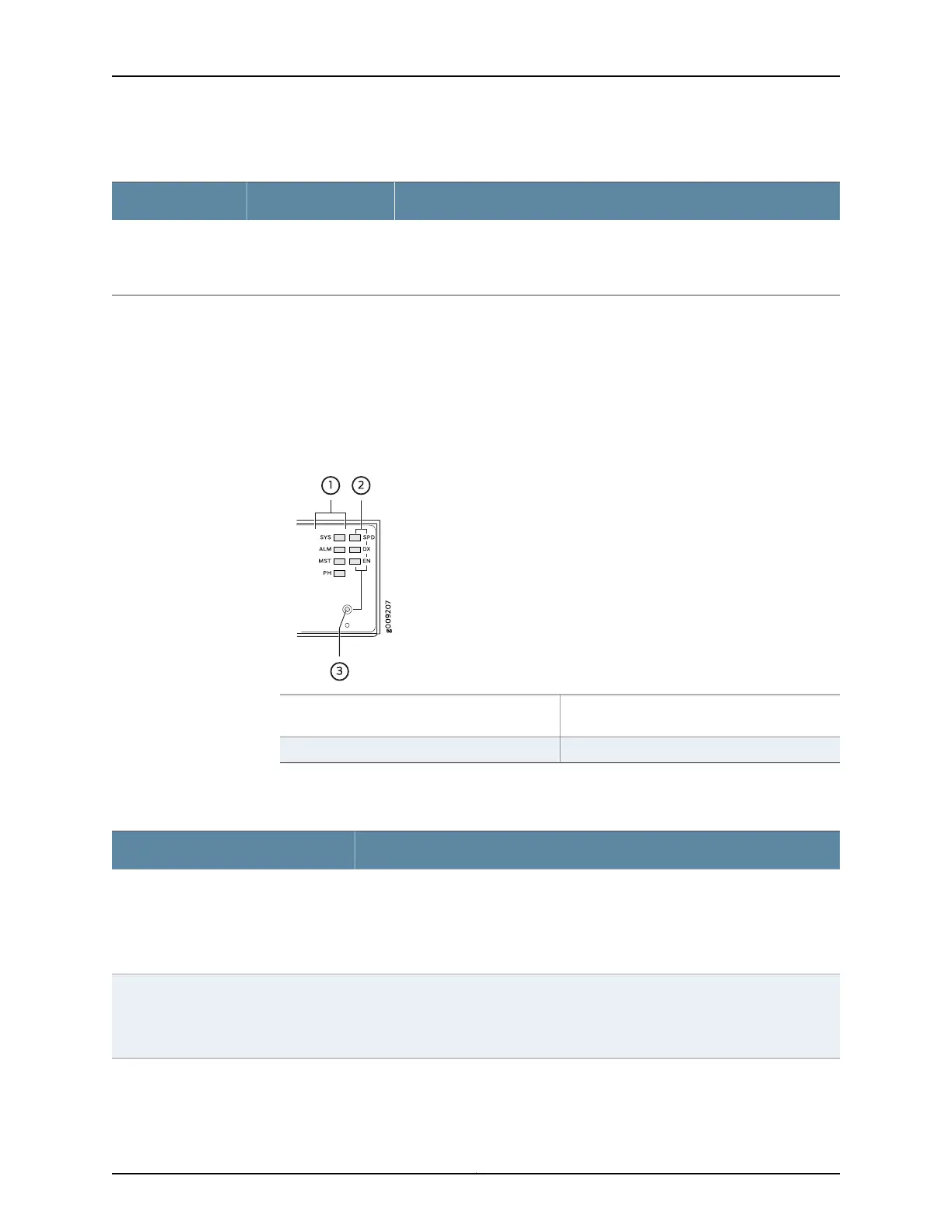

Figure 6: Port Parameter LEDs of an MX150
3—1— Mode button
Chassis status LEDs (ALM, SYS, MST, and
PH)
2—
Port parameter LEDs (SPD, DX, and EN)
Table 6 on page 9 describes the port parameters LED.
Table 6: Port Parameter LED on the Network Ports and Uplink Ports in MX150
State and DescriptionPort Parameter LED
Indicates the speed. The speed indicators for network ports and uplink ports are:
•
One blink per second—10 Mbps
•
Two blinks per second—100 Mbps
•
Three blinks per second—1000 Mbps
SPD (speed)
Indicates the duplex mode. The status indicators are:
•
On steadily—Port is set to full-duplex mode.
•
Off—Port is set to half-duplex mode.
DX (duplex mode)
9Copyright © 2017, Juniper Networks, Inc.
Chapter 2: Chassis Components and Descriptions

Juniper MX150 Specifications

General

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	12
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	14
Ethernet LAN data rates	10, 100, 480, 800, 1000, 1200, 2500, 3000, 5000, 6000, 10000 Mbit/s
MAC address table	- entries
DHCP features	DHCP client, DHCP server, DHCPv6 client, DHCPv6 server, DHCPv6 snooping
Security algorithms	256-bit AES, 802.1x RADIUS, HTTPS, MD5, SHA-1, SHA-256, SSH, SSL/TLS, TLS
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 portal
Form factor	1U
Product color	Silver
Fanless	No
Flash memory	400000 MB
Internal memory	32768 MB
Processor model	Intel® Xeon®
Operating altitude	0 - 4000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	304.8 mm
Width	440.9 mm
Height	43.7 mm
Weight	4300 g
