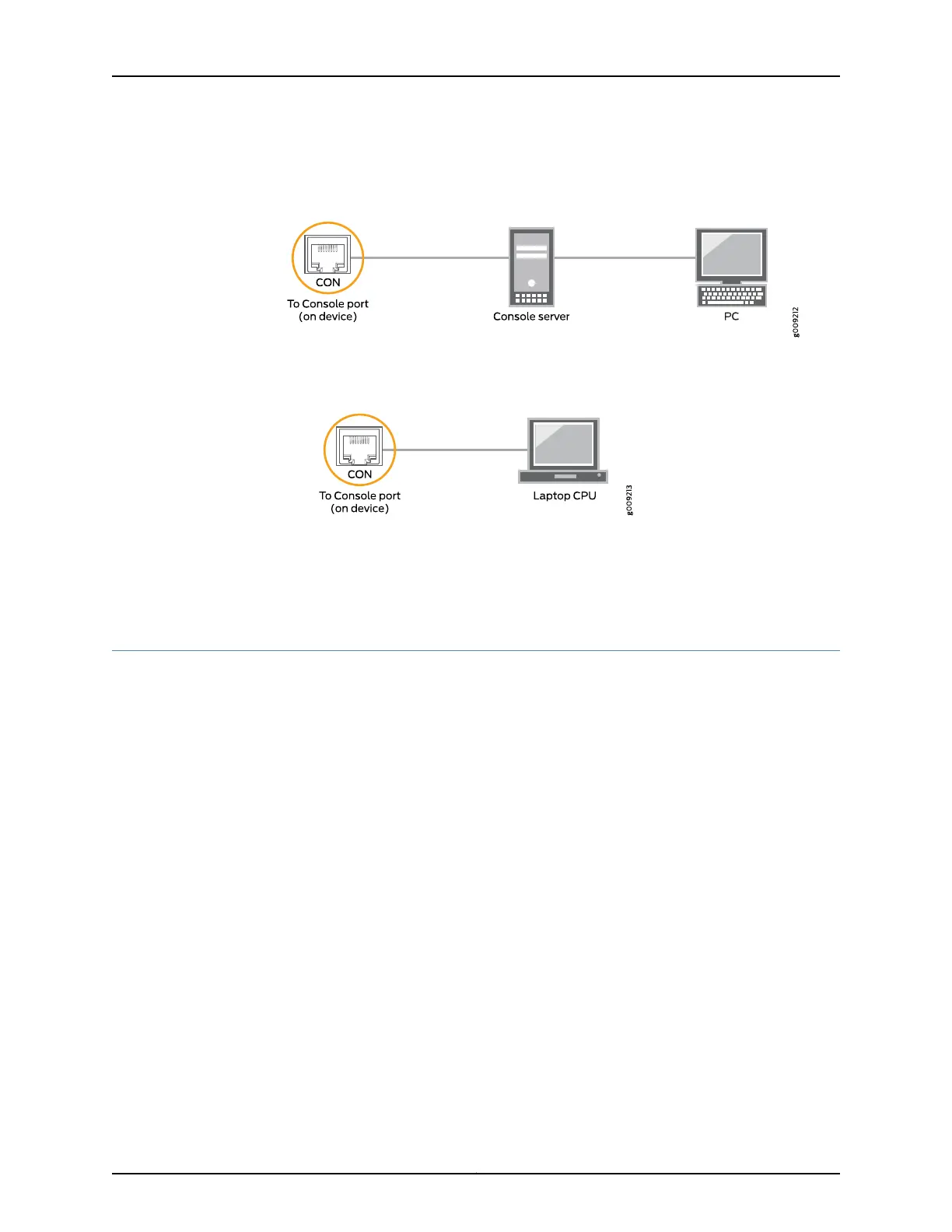

Figure 19: Connecting the MX150 to a Management Console Through a
Console Server
Figure 20: Connecting the MX150 Directly to a Management Console
Related
Documentation
Console Port Connector Pinouts for MX150 on page 32•
Connecting an MX150 to a Management Console Using Mini-USB Type-B Console Port
You can configure and manage the MX150 by using the RJ-45 console port or the Mini-USB
Type-B console port. However, the console input will be active only on one port at a
time—only one port will be set active at a time.
By default, the RJ-45 port is set as an active console port and the Mini-USB Type-B port
is the passive console port. For information about configuring the console port type, see
Configuring the Console Port Type (CLI Procedure).
If your laptop or PC does not have a DB-9 male connector pin or RJ-45 connector pin,
you can connect your laptop or PC directly to an MX150 device by using a mini-USB cable
that has a Standard-A USB connector on one end and a Mini-USB Type-B (5 pin)
connector on the other end.
This section describes the process of connecting an MX150 to the management console
by using the Mini-USB Type-B console port.
For information about configuring and managing an MX150 by using the RJ-45 console
port, see “Connecting an MX150 to a Management Console” on page 90.
Before you begin connecting an MX150 by using the Mini-USB Type-B console port:
•
Ensure that the USB to Serial driver is installed on the host machine. You can download
the driver fromhttps://webdownload.juniper.net/swdl/dl/secure/site/1/record/5029.html
91Copyright © 2017, Juniper Networks, Inc.
Chapter 12: Connecting the MX150 to the Network
