CHAPTER 3
Cooling System and Airflow
•
Cooling System and Airflow in an MX150 on page 13
Cooling System and Airflow in an MX150
The MX150 has front-to-back airflow. The air intake to cool the chassis is located at the
front of the chassis. Air is pulled into the chassis and pushed toward the fans, which are
built-in. Hot air exhausts from the rear of the chassis. See Figure 8 on page 13.

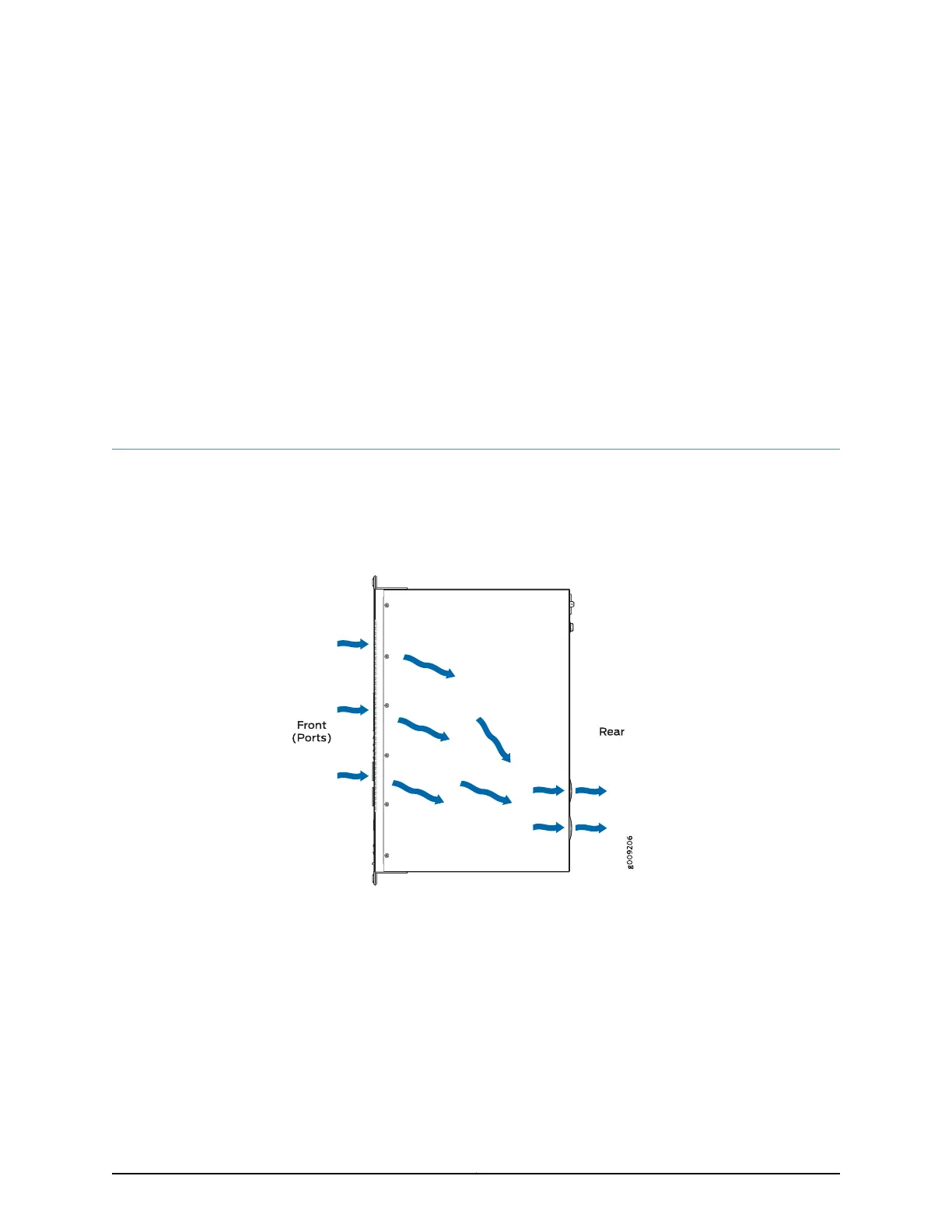

Figure 8: Front-to-Back Airflow Through the MX150 Chassis
Related
Documentation
• Rear Panel of an MX150 on page 6
• Prevention of Electrostatic Discharge Damage on page 151
