Juniper SRX110 H2 User Manual

Table 24: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (1 Gbps) (continued)
SignalPin
BI_DB-6
BI_DD+7
BI_DD-8
Related
Documentation
Interface Cable and Wire Specifications for the SRX110 Services Gateway on page 41•
• RJ-45 Connector Pinouts for the SRX110 Services Gateway Console Port on page 43

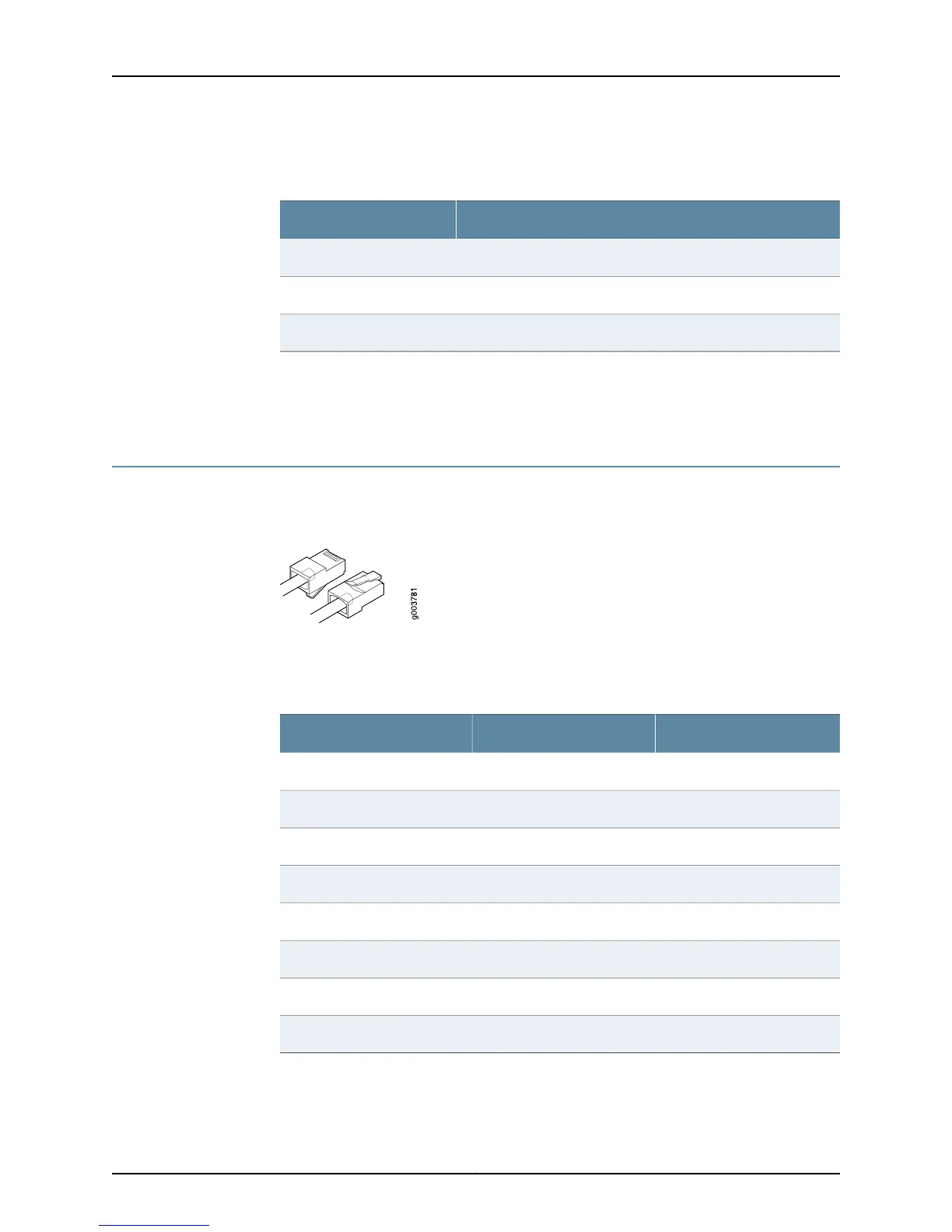

RJ-45 Connector Pinouts for the SRX110 Services Gateway Console Port
Figure 11 on page 43 shows the RJ-45 connector pinouts for the console port.
Figure 11: Console Cable Connector
Table 25 on page 43 describes the RJ-45 connector pinouts for the console port.
Table 25: RJ-45 Connector Pinouts for the Services Gateway Console
Port
DescriptionSignalPin
Request to SendRTS1
Data Terminal ReadyDTR2
Transmit DataTXD3
Signal GroundGround4
Signal GroundGround5
Receive DataRXD6
Data Set ReadyDSR/DCD7
Clear to SendCTS8
43Copyright © 2015, Juniper Networks, Inc.
Chapter 6: Cable Specifications and Pinouts

Juniper SRX110 H2 Specifications

General

Form Factor	Desktop
VPN Throughput	65 Mbps
Maximum Concurrent Sessions	16, 000
Memory	1 GB DRAM
Flash Memory	256 MB
Power Supply	External AC adapter
Humidity	10% to 90% non-condensing
Weight	2.5 lbs
Operating Temperature	32°F to 104°F (0°C to 40°C)
Ports	8 x 10/100/1000BASE-T
