Juniper SRX110 H2 - Figure 17: SRX110 Services Gateway Desk Installation - Attaching the Vertical

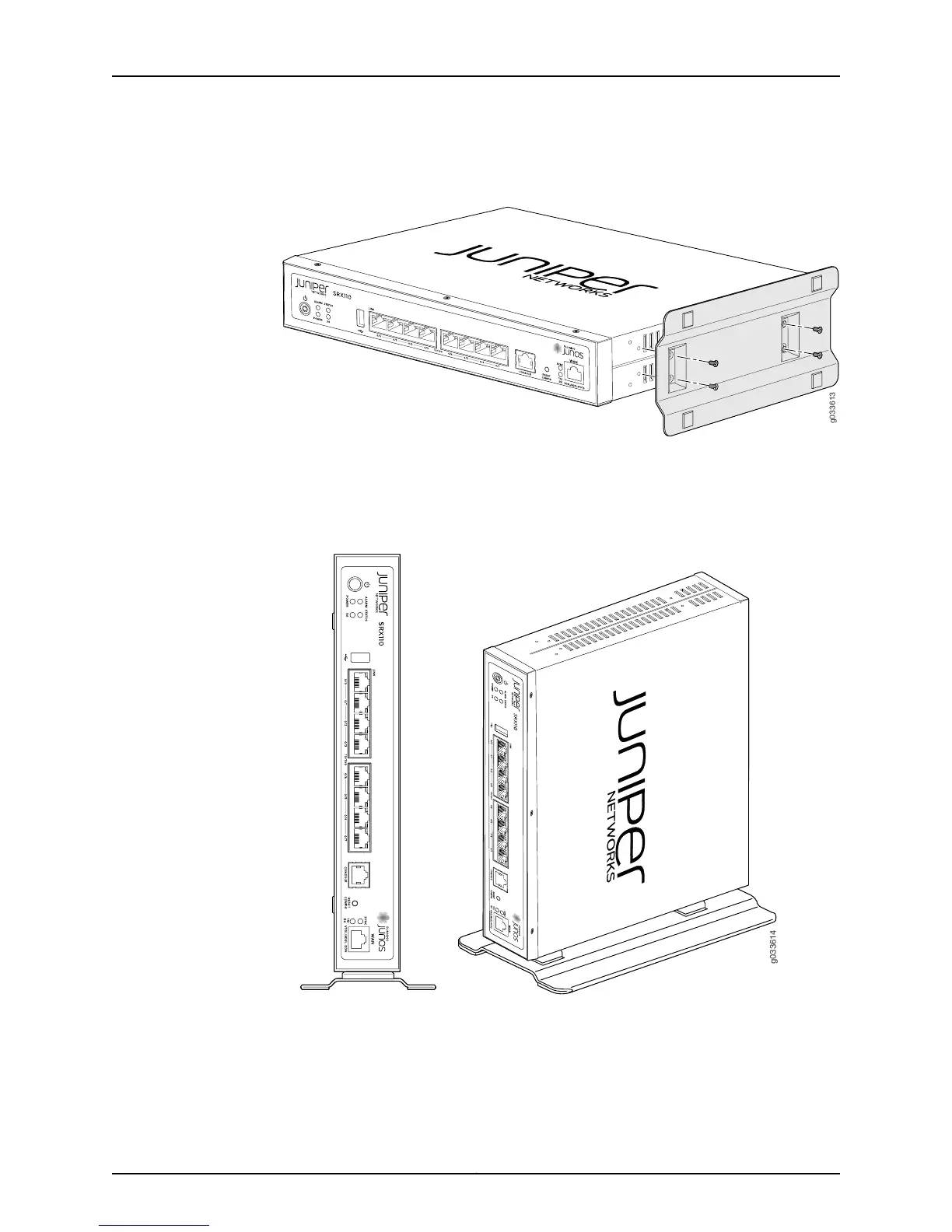

Figure 17: SRX110 Services Gateway Desk Installation — Attaching the
Vertical Stand
g033613
3. Place the chassis vertically on the desk with the stand resting on the desk as shown
in Figure 18 on page 64.
Figure 18: SRX110 Services Gateway Desk Installation — Placing the
Services Gateway on a Desk
g033614
