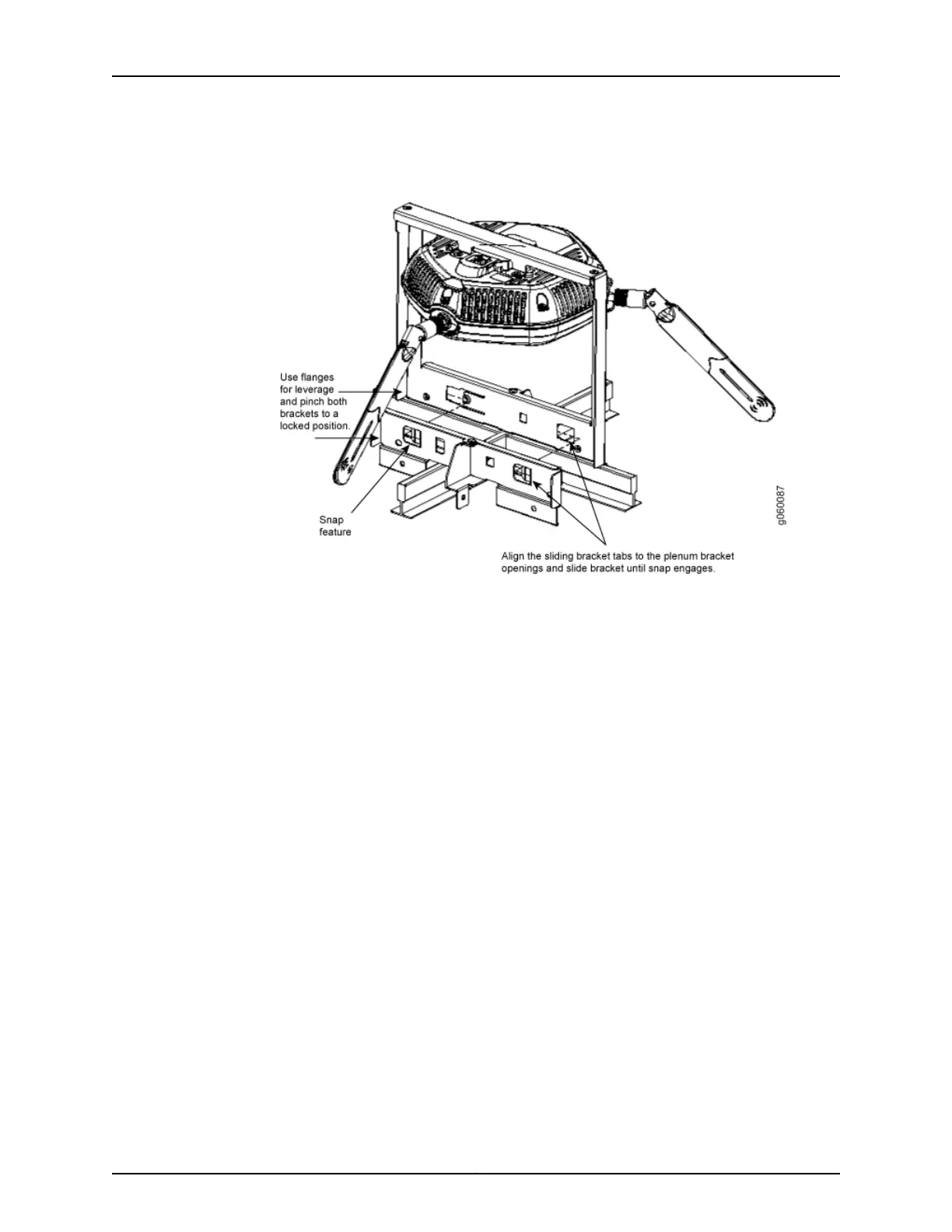

Figure 15: Aligning the Plenum Bracket Tabs to Bracket Openings
8. Slide the plenum bracket forward using flanges for leverage until both snaps engage.
Listen for simultaneous clicks that indicate that the snaps have closed and the plenum
bracket is locked.
9. Secure the locked plenum bracket by inserting two M4 screws (not provided) into the
openings on the plenum bracket (see Figure 16 on page 56) using a Phillips number
2 screwdriver.
55Copyright © 2012, Juniper Networks, Inc.
Chapter 7: Installing and Connecting the Access Point
