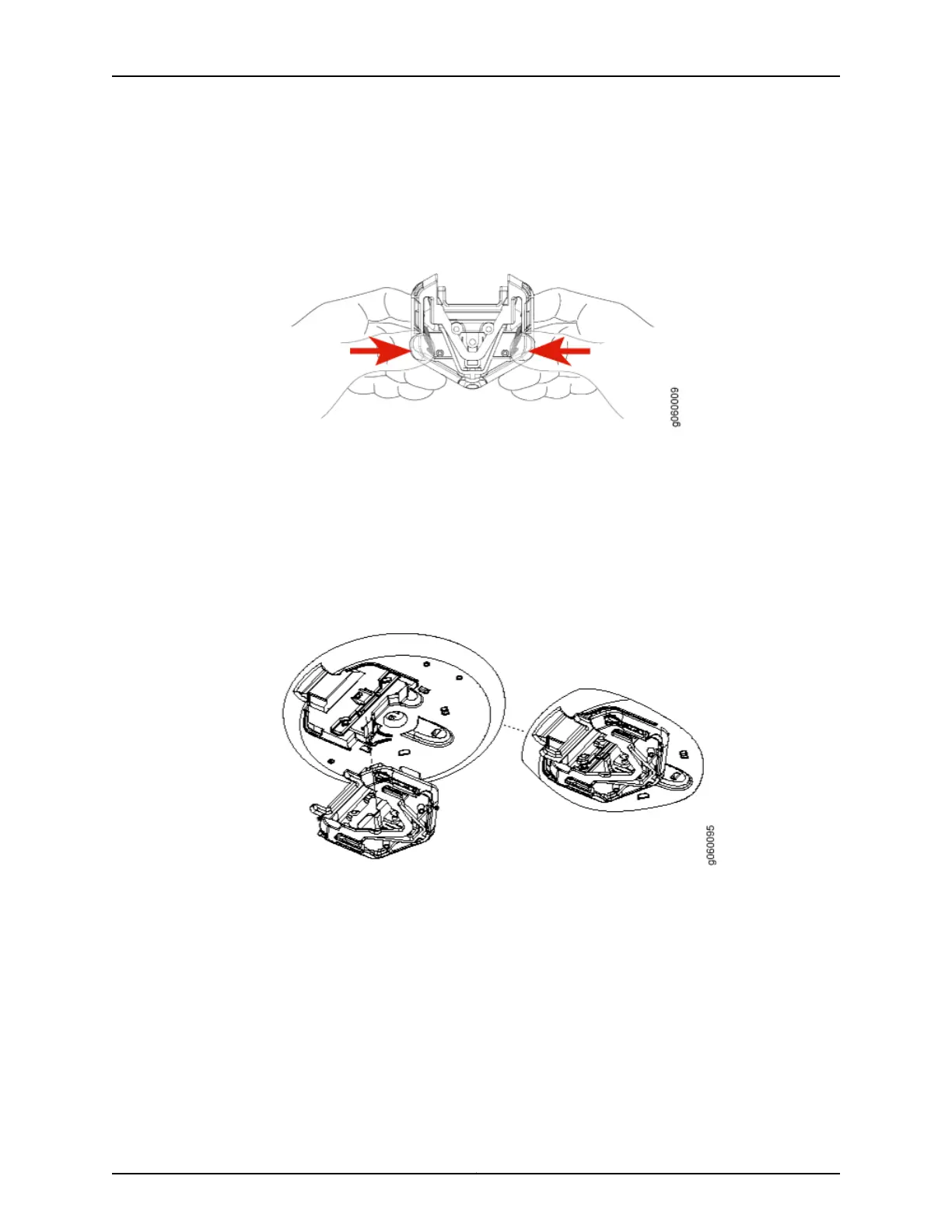

Figure 25: Opening the Ceiling Bracket Snaps
10. Align the ceiling-mount bracket with the opening of the legacy mounting bracket
adapter and push in on the top and bottom of the bracket until the clips lock into the
legacy mounting bracket adapter (see Figure 26 on page 61). Listen for a click that
indicates that the clips have locked.
Figure 26: Aligning the Ceiling Mount Bracket with the Legacy Mounting
Bracket Adapter
11. Grasp the Category 5e cable that extends from the ceiling and plug it into the access
point.
12. Attach three supported external omnidirectional and paddle antennas to the external
antenna ports of the access point. For antenna specifications and ordering information
see the WLA Series Wireless LAN Access Points product information at
http://www.juniper.net/us/en/products-services/wireless/wla-series.
13. Orient the antennas for the best antenna reception. See Figure 12 on page 53.
61Copyright © 2012, Juniper Networks, Inc.
