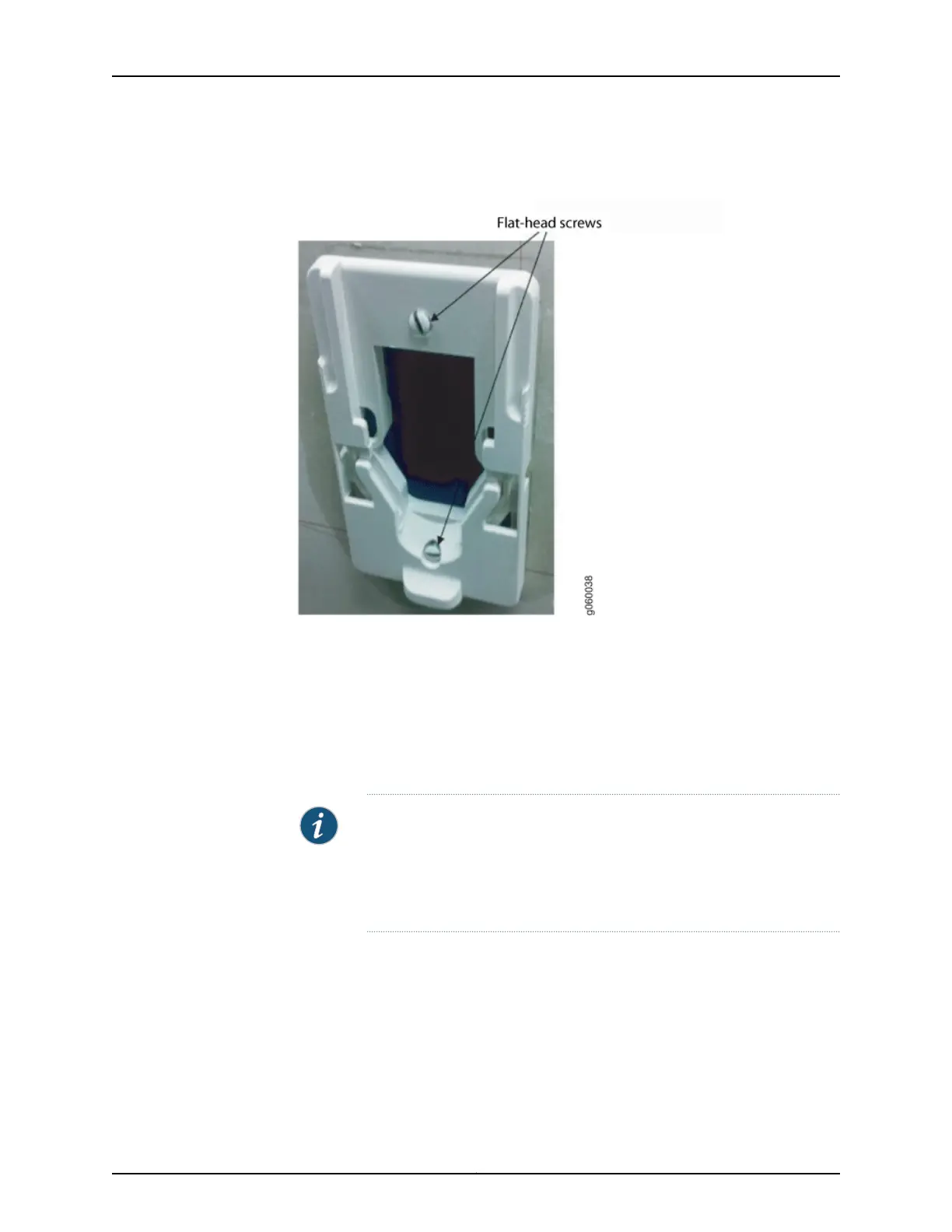

Figure 43: NA Faceplate Secured to the Outlet Box
3. Plug the Category 5 cable from the NA outlet box into the access point.
4. Align the access point with the installed faceplate and push down on the access point
until you hear it click into place. Be sure the device is seated correctly in the bracket
by gently pulling up the access point and then pushing it down.
5. If the access point is not properly secured, press the release button on the bottom of
the bracket to release the device. Realign the unit, making sure the cable is still
connected, and push down until the access point clicks securely into place.
NOTE: We recommend that you use the optional security kit (separately
orderable) to secure the access point. The kit includes a special tool and
a security screw. Be sure that you retain the tool so that you can unlock
and move the access point. Never use a power tool to insert or remove
the security screw.
6. To lock the access point into place, secure the security screw in through the release
button by using the tool provided with the security kit (see Figure 38 on page 69). Do
not overtighten the screw.
Related
Documentation
Installing the WLA532E Access Point on a Ceiling Rail on page 46•
• Installing the WLA532E Access Point Using the Plenum Bracket Kit on page 51
75Copyright © 2012, Juniper Networks, Inc.
Chapter 7: Installing and Connecting the Access Point
