European-standard faceplate – (provided in the WLA-BRKT-WALL kit)
The EU faceplate included in the kit covers the wall box and cables and has a minimum
extension plastic body that conforms to the EU faceplate standard (see Figure 39 on
page 71).

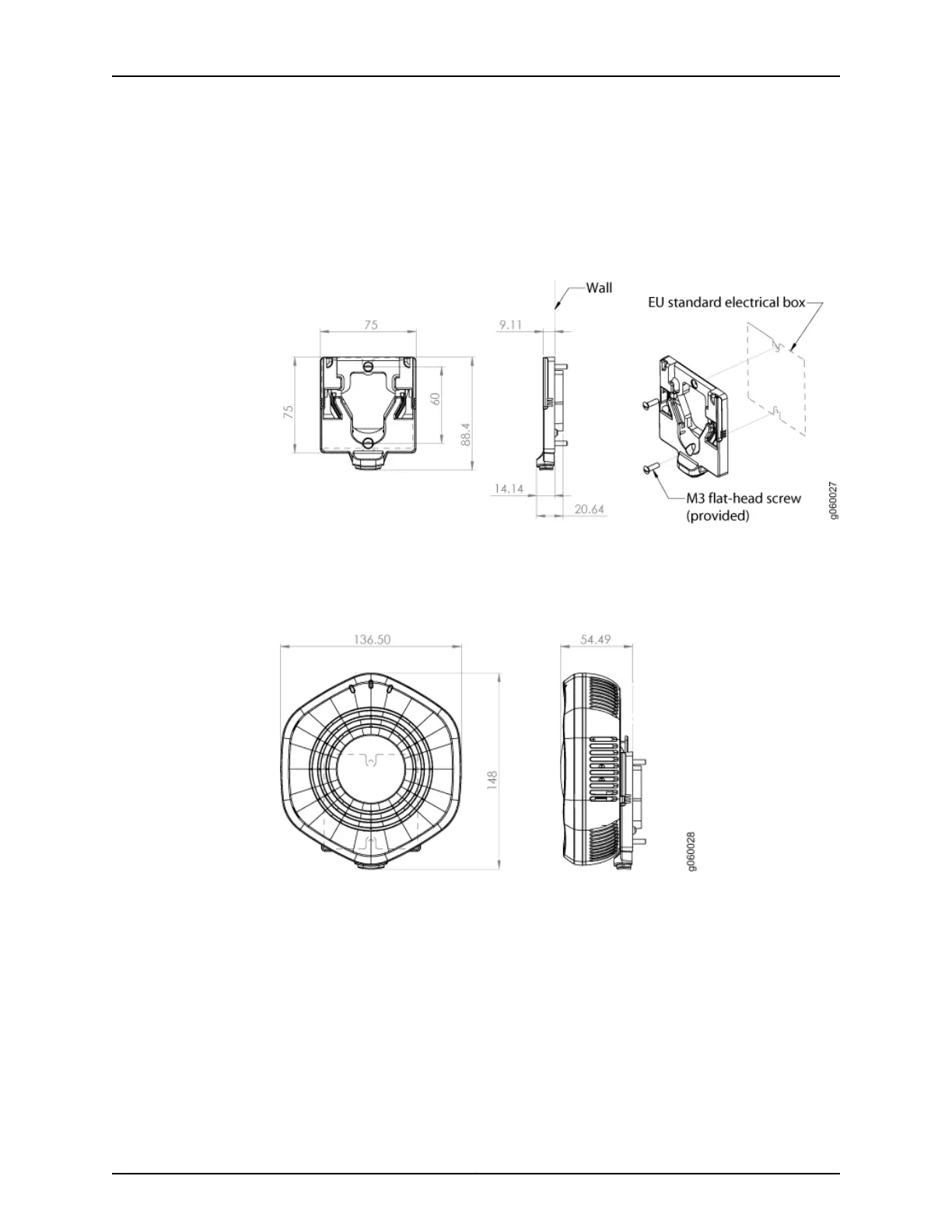

Figure 39: EU Faceplate Dimensions
Figure 39 on page 71 and Figure 40 on page 71 show the dimensions of the installed
WLA532 on the EU-standard faceplate in millimeters.
Figure 40: Dimensions of the Installed WLA532 Access Point on an
EU-Standard Faceplate
•
Two M3 flat-head, flat-tip, screws (provided in the WLA-GNGWLBX-ADP-EU kit)
•
Flat-head screwdriver (not provided)
•
Category 5 cable, installed (not provided)
•
Two M3 or 6-32 wall anchors (not provided)
•
Wall-mount template (part number 530-043682, provided in the WLA-BRKT-WALL
kit)
•
(Optional) Security kit, which includes a security tool and a security screw (The kit is
not provided; you can order it separately at
https://www.juniper.net/customers/support/.)
71Copyright © 2012, Juniper Networks, Inc.
Chapter 7: Installing and Connecting the Access Point
