Connecting External
Monitor
0

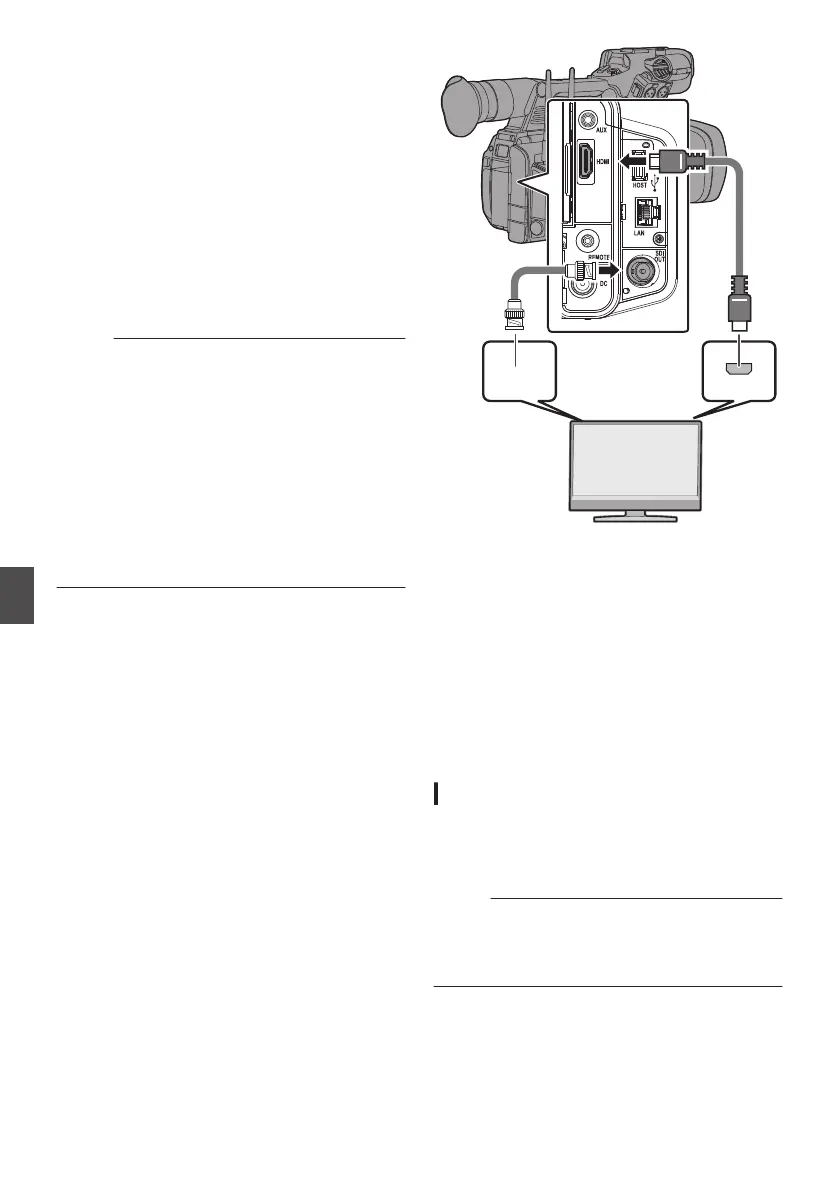

To output live or playback video images and
audio sound to an external monitor, select the
output signals from the camera recorder, and
connect
using an appropriate cable according to
the monitor to be used.
0
Choose the most suitable terminal according to
the monitor in use.
0
[SDI OUT] terminal:
Outputs either the 3G-SDI/HD-SDI signal or SD-
SDI signal.
0
[HDMI] terminal:
Outputs HDMI signals.
Memo :
0
If the [
SDI OUT] terminal or [HDMI] terminal is
connected, configure the settings in the [A/V
Set] menu according to the monitor to be
connected.
(A P132 [HDMI/SDI OUT] )
(A P132 [ SDI OUT ] )
(A P133 [ HDMI OUT ] )
0
To connect the output signal in the 4K(2160p)
setting,
use a Premium High Speed HDMI cable
(supports 18Gbps).
When connecting in the 4K(2160p) 59.94p or
50p setting, it is recommended that the cable
used does not exceed 2 m.
.
*
Select the output signal in
[A/V Set] B
[HDMI/SDI OUT]/[SDI OUT]/[HDMI OUT].
(A P132 [HDMI/SDI OUT] )
(A P132 [ SDI OUT ] )
(A P133 [ HDMI OUT ] )
*
When [Record Format]
B
[System] is set to “SD”,
only SD-SDI signals are output.
(A P156 [ System ] )
* To display the menu screen or display screen on
the external monitor, set [A/V Set] B [Video
Set] B [SDI OUT] B [Character] to “On”.
(A P132 [ Character ] )
Connecting via SDI
0
Digital video signals, together with embedded
(superimposed) audio signals and time code
signals, are output for both the 3G-SDI/HD-SDI
and SD-SDI signals.
Memo :
0
The sampling frequency for embedded
(superimposed) audio signals is 48 kHz. Time
code of the built-in time generator as well as
playback time code are also output.
182
Connecting External Monitor
Connecting External Devices
