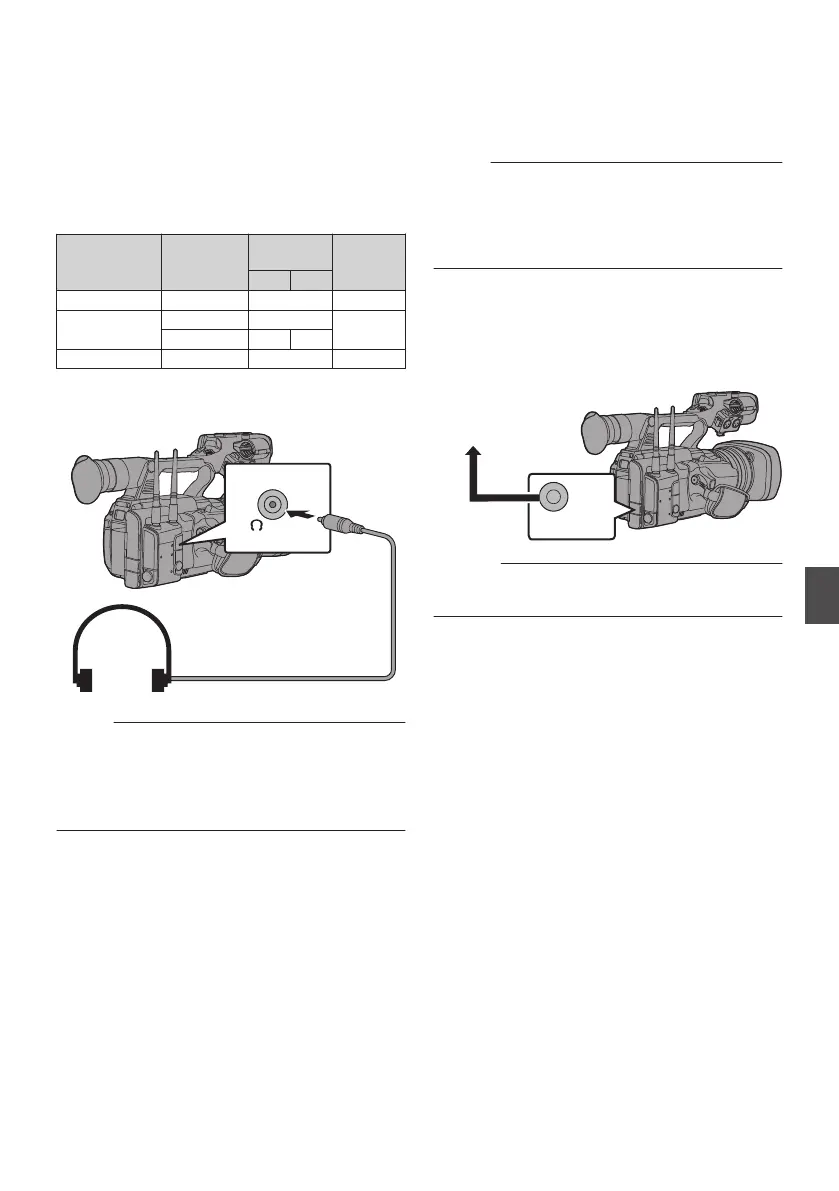

Connect the headphone
0
Audio output from the [x] terminal can be
selected using the
[A/V Set] B [Monitor] item or
the [MONITOR] selection switch on the camera
recorder.
(A P
136 [ Monitor ] )
0
The different combinations of settings that are
output from the [x] terminal and monitor
speaker are as follows.
[MONITOR]
Selection
Switch Setting
[Monitor]
Setting
[x]
Terminal
Speaker *
L R
[CH1] - CH1 CH1
[BOTH] [Mix] CH1+CH2 CH1+CH2
[Stereo] CH1 CH2
[CH2] - CH2 CH2
* Audio is output from the speaker only in Media
mode. Does not output in the Camera mode.
.
Memo :
0
If both CH1 and CH2 are set to built-in
microphone and the [MONITOR]
selection
switch has been set to “BOTH”, stereo sound is
output from the [x] terminal regardless of the
[Monitor] setting.
Connecting Wired Remote
Control
You can operate the functions of this unit with a
wired remote control.
Memo :
0
When the switches of the camera recorder and
remote control unit are operated at the same
time, the switch operation of the remote control
unit takes priority over that of the camera
recorder.
1
Connect a wired remote control to the
camera recorder.
Connect the wired remote control (sold
separately) to the
[REMOTE] terminal of this
camera recorder.
.
REMOTE
Connect the wired
remote control
Caution :
0
Turn
off the power of the camera recorder when
connecting a wired remote control.
2
Turn on the power of the camera recorder.
Connect the headphone
183
Connecting External Devices
