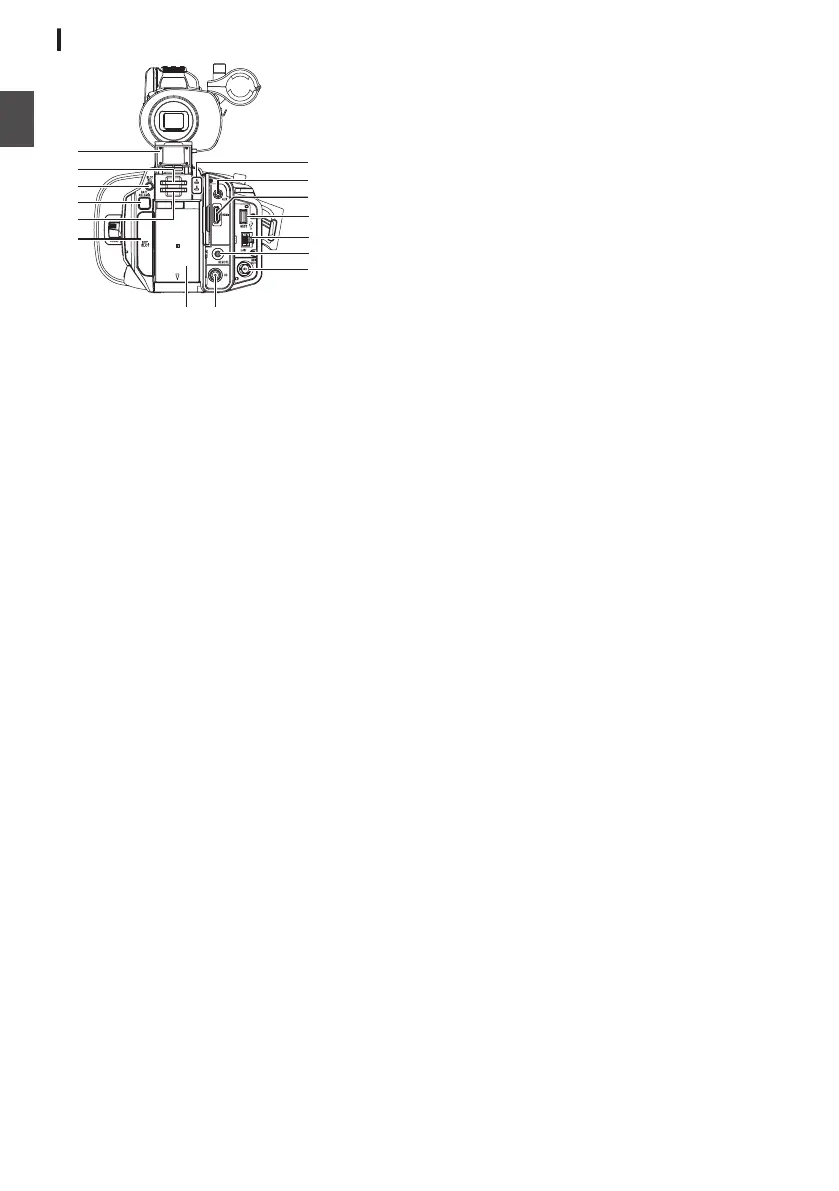

Rear Terminal
.
OPEN
BATTERY
BATTERIE:
7.2V
N
L
M
I
J
K
C
D
E
B
A
O
G
H
F
A
SD Card Cover
B
Card Slot A
C
[SLOT SEL
] Button
For switching the active card slot during
shooting and playback.
D
[BATT.RELEASE] Button
(A P35 [Removing the Battery] )
E
Card Slot B
F
[EXT.SLOT
]
SSD Media Adapter (sold separately) such as
KA-MC100 can be inserted into the slot.
(A P51 [Inserting the SSD Media Adapter] )
G
Battery
(A P35 [Using a Battery Pack] )
H
[DC] Terminal
Input terminal for DC 12 V power supply. For
connecting with the supplied AC adapter.
(A P36 [Using AC Power (DC IN Power)] )
I
[SDI OUT] Terminal
(A P182 [Connecting External Monitor] )
J
[REMOTE] Terminal
(A P183 [Connecting Wired Remote Control] )
K
[LAN] Terminal
For connecting the LAN cable.
L
[HOST] USB Host Terminal
For connecting a USB adapter according to the
intended purpose when you are connecting the
unit to a network.
(A P185 [Camera Setup for Network
Connection] )
M
[HDMI] Terminal
(A P182 [Connecting External Monitor] )
N
[AUX] Terminal (Φ3.5 mm)
For connecting to receiver such as wireless
microphone.
O
Access Lamp A/B
30
Names of Parts
Introduction
To Next Page
