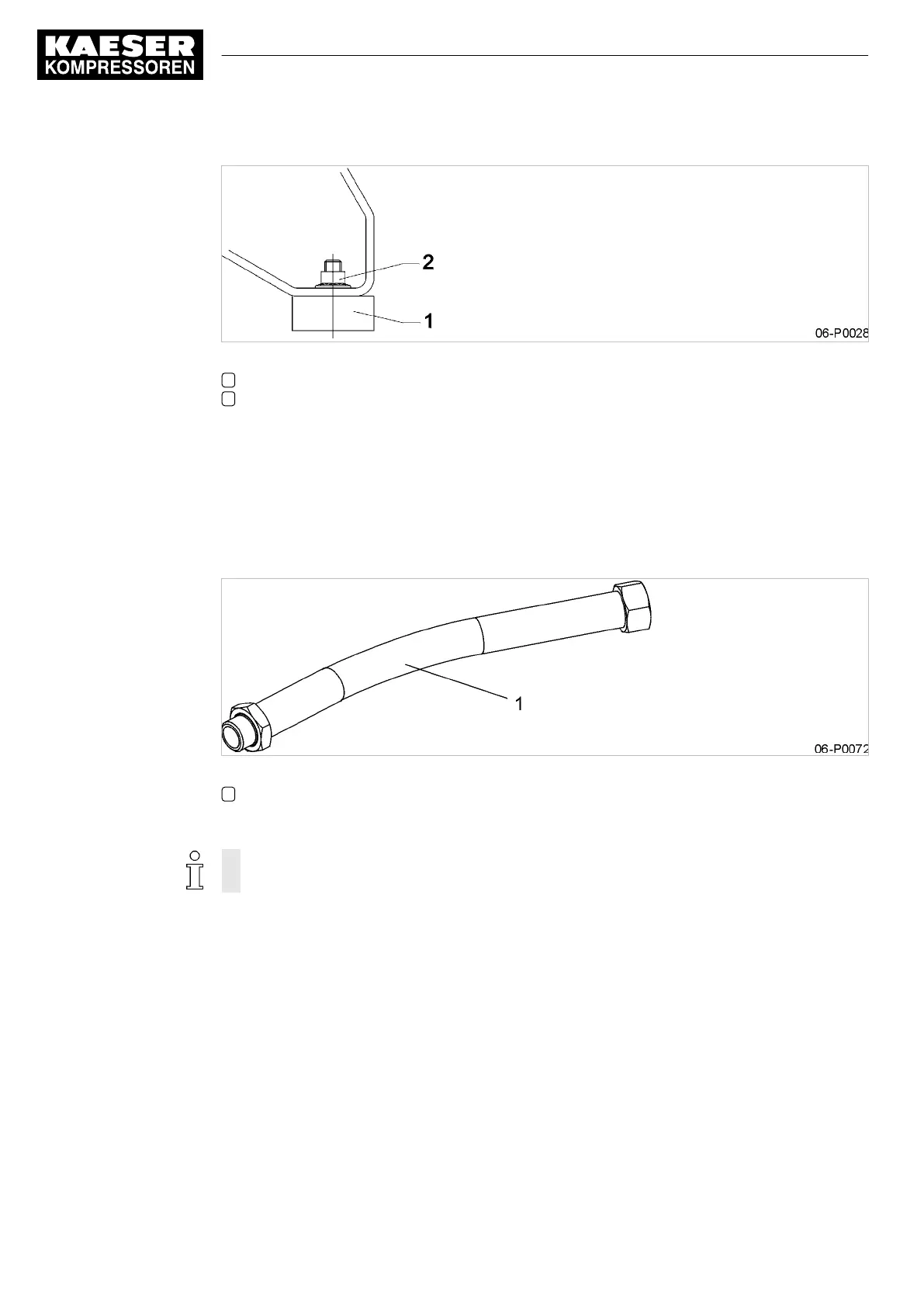

Fig. 12 Fitting the Antivibration Mounts
1 Antivibration mount
2 Hexagon nut
➤ Remove the wooden frame from the air receiver feet.
➤ Secure the antivibration mounts to the feet with hexagon nuts.
6.4 Compressed Air Connection
Precondition The compressed air system is vented completely to atmospheric pressure.
Fig. 13 Compressed air connection
1 Prepared hose
➤ Make the connection to the compressed air network with a prepared hose.
To isolate the machine completely from the compressed air network, install a shut-off valve to
prevent the need to vent the whole of the network.
6.5 Connecting the Power Supply
Precondition The machine is disconnected from all power supply phases.
The disconnecting device is locked in the off position.
A check has been made that no voltage is present.
1. Have the power supply connected only by authorized installation personnel or an authorized
electrician.
2. Carry out safety measures as stipulated in relevant regulations (IEC 364, for example or
DIN VDE 0100) and in national accident prevention regulations (BGV A3 in Germany). In addition,
observe the regulations of the local electricity supplier.
3. Check the permitted disconnect time for the overload protection cut-out if a fault arises.
6 Installation
6.4 Compressed Air Connection
30
Service Manual 2-stage piston compressor
EPC No.: 9_9431_02 E
