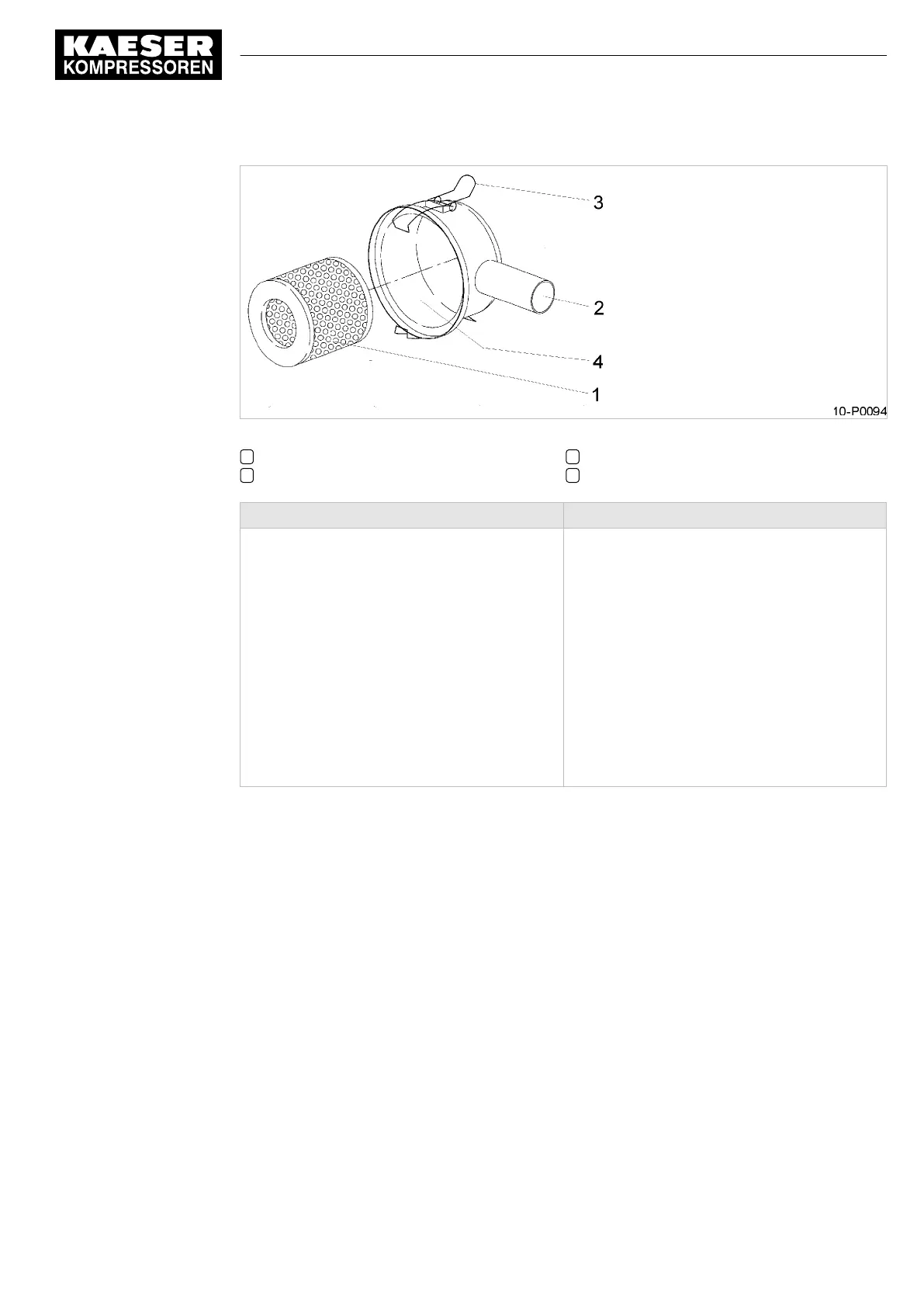

Fig. 23 Air Filter (noise absorbing) Maintenance
1 Air filter element
2 Inlet air opening
3 Retaining clip
4 Cover
Cleaning the air filter element by tapping. Cleaning the filter element with compressed air
1. Release the retaining clip and take off the
cover.
2. Withdraw the filter element.
3. Tap the element at the front a number of times
with the palm of the hand.
4. Clean the housing and sealing faces.
5. Replace the filter element.
6. Position the cover and close the retaining
clips.
7. Switch on the power supply disconnecting
device.
1. Release the retaining clip and take off the
cover.
2. Withdraw the filter element.
3. Use dry compressed air at not more than
5 bar to blow dirt from the air filter element
from inside to outside.
4. Clean the housing and sealing faces.
5. Replace the filter element.
6. Position the cover and close the retaining
clips.
7. Switch on the power supply disconnecting
device.
10.6 Option H10
Air filter (with plastic casing)
Check that all sealing surfaces match each other. The use of an unsuitable air filter element can
permit dirt to ingress the pressure system and cause damage to the machine.
Material Compressed air for blowing out
Spares as required
Precondition The supply disconnecting device is switched off,
the device is locked off,
a check has been made that no voltage is present.
The machine has cooled down.
10 Maintenance
10.6 Air filter (with plastic casing)
No.: 9_9431_02 E
Service Manual 2-stage piston compressor
EPC
51
