DANGER
Electric shock!
Danger of fatal injury caused by contact with live components.
➤ Switch off and lock out the power supply disconnecting device and verify the absence of voltage.
2. Open the switch cover.
3. Loosen the screw and move the sensing contact.
4. Retighten the screw.
5. Close the cover until it latches.
6. Switch on the machine.
6.6.2 Options
6.6.2.1 Option H1
Anchoring the machine

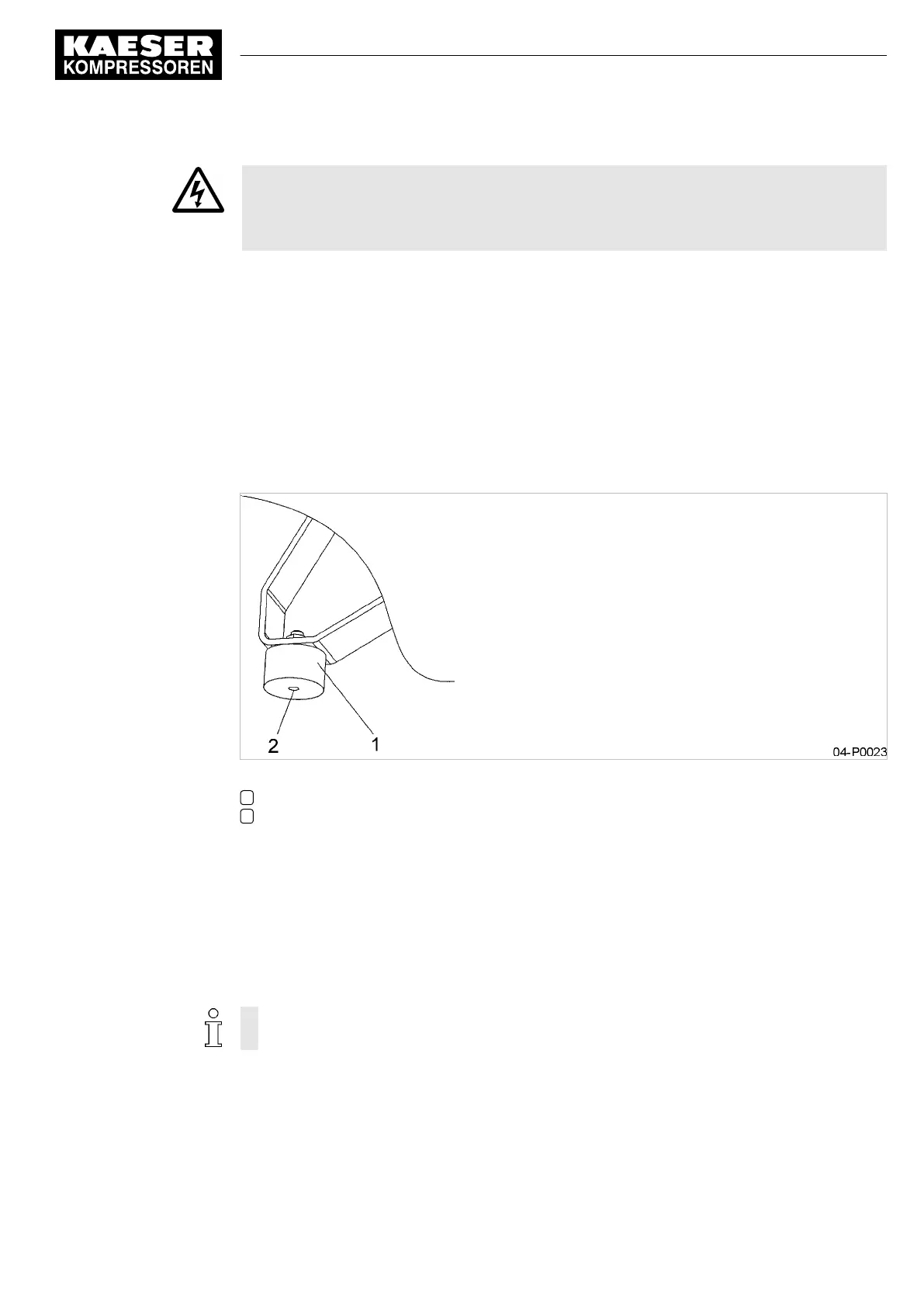

Fig. 16 Securing the adjustable machine mounts
1 Adjustable machine mountings
2 Threaded joint
➤ Use appropriate fixing bolts to anchor the machine.
Further information Details of the anchoring holes are shown in the dimensional drawing in chapter 13.2.
6.6.3 Option K5 / K6
Connecting the ECO-Drain automatic condensate drain
The ECO-Drain is delivered not fitted.
Fit the ECO-Drain vertically.
➤ Do not bond the plug-in nipple.
6 Installation
6.6 Options
No.: 9_9431_02 E
Service Manual 2-stage piston compressor
EPC
33
