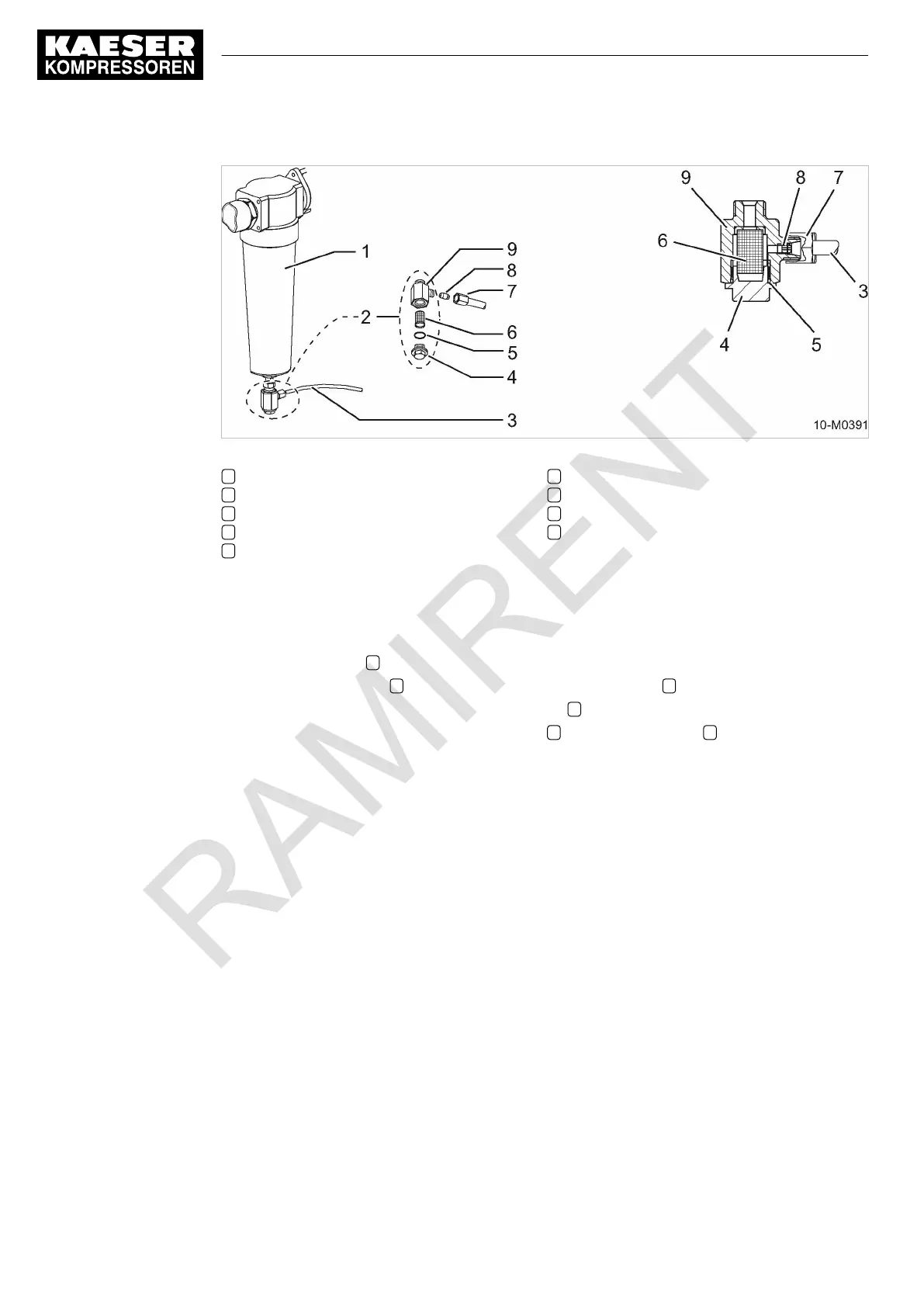

Fig. 72 Cleaning the dirt trap
1 Cyclone separator
2 Dirt trap
3 Condensate drain hose
4 Filler plug
5 O-ring
6 Strainer
7 Condensate drain hose union nut
8 Nozzle
9 Dirt trap housing
Open the left-hand door.
Cleaning the dirt trap:
1.
Unscrew the plug 4
and remove the strainer.
2.
Loosen the union nut 7
and detach the condensate drain hose 3 from the dirt trap.
3.
Use the small screwdriver to unscrew the nozzle 8
from the dirt trap housing.
4.
Clean the nozzle, strainer, screw plug, O-ring 5
and dirt trap housing 9 with cleaning solvent
or spirit.
5.
Check the nozzle, strainer and O-ring for wear.
Replace components if they are heavily worn.
6. Place the strainer on the screw plug.
7. Screw in the plug making sure the O-ring seats properly.
8. Screw in the nozzle and re-attach the condensate drain hose.
Making operational:
1. Reconnect the negative cable to the batteries.
2. Close the access door.
Starting the machine and performing a test run:
1. Switch the machine on and run it in IDLE mode for approx. 5 minutes.
2. Shut down the machine.
3. Wait until the machine has automatically vented.
Pressure gauge reads 0 bar!
4. Open the outlet valves.
5. Open the left-hand door.
10 Maintenance
10.8 Maintenance of Optional Items
136
Service manual Portable compressor
M122
No.: 9_6974 20 E
