Fitting the jockey wheel of the non-adjustable towbar:

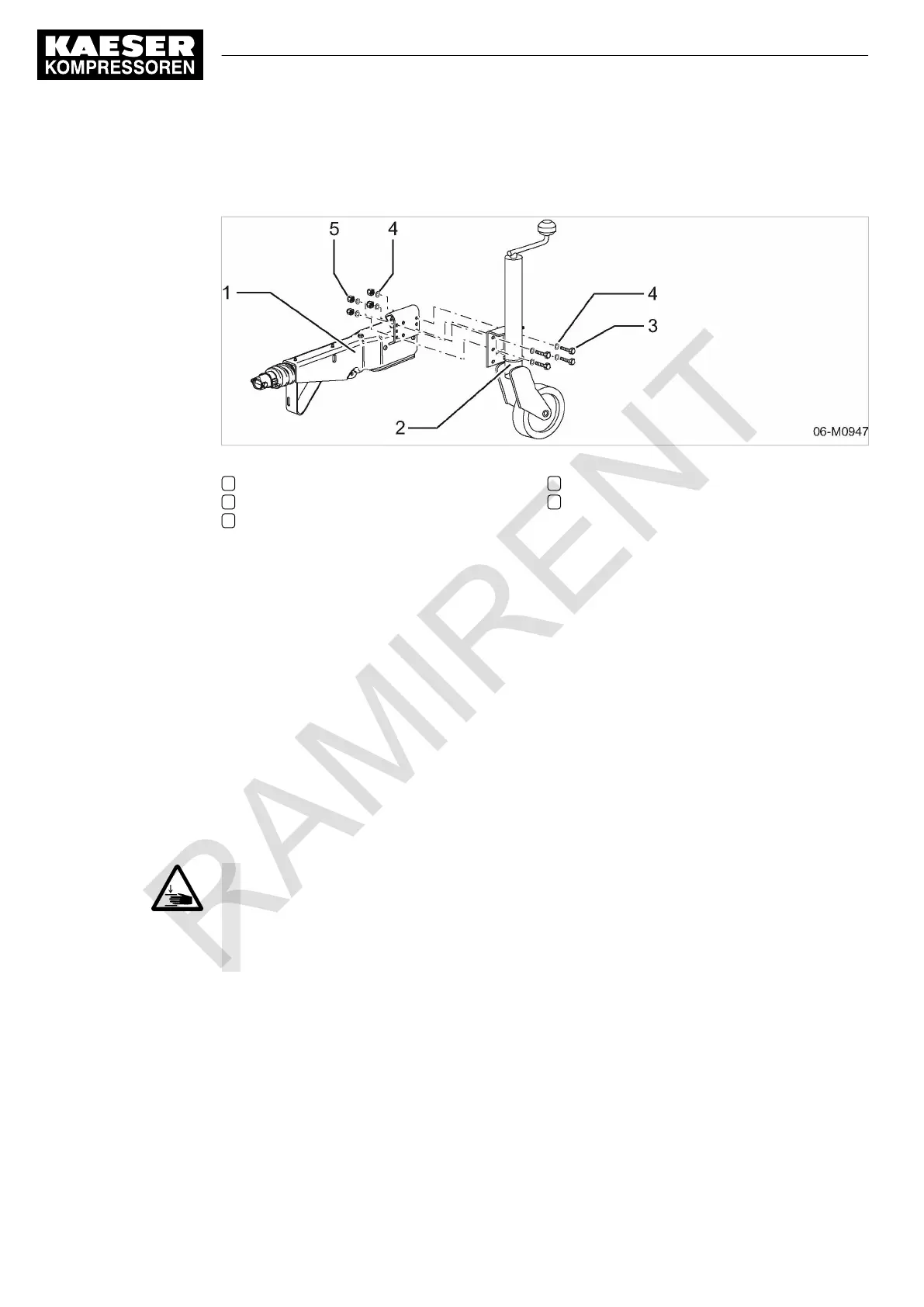

Fig. 22 Fitting the jockey wheel of the non-adjustable towbar
1 Overrun braking mechanism
2 Jockey wheel
3 Fixing screw
4 Washer
5 Hexagon nut (self-locking)
1. Place a U-washer on each securing screw and insert each of these into the top four securing
holes on the jockey wheel mounting plate.
2.
Raise the overrun braking mechanism and position such that the securing holes of the jockey
wheel mounting plate and the overrun braking mechanism coincide.
3. Push through the securing screws and push on the U-washers.
4. Secure the bolts with self-locking nuts.
6.4 Adjusting the chassis
Material Pliers
Hard rubber hammer
Precondition The machine is shut down.
The machine is disconnected from the towing vehicle and safely parked.
CAUTION
Danger of pinching!
Severe injury to fingers is possible if they become trapped in the adjusting mechanism.
➤
Wear safety gloves.
➤ Work with caution.
6 Installation
6.4 Adjusting the chassis
52
Service manual Portable compressor
M122 No.: 9_6974 20 E
Option sd, sh
