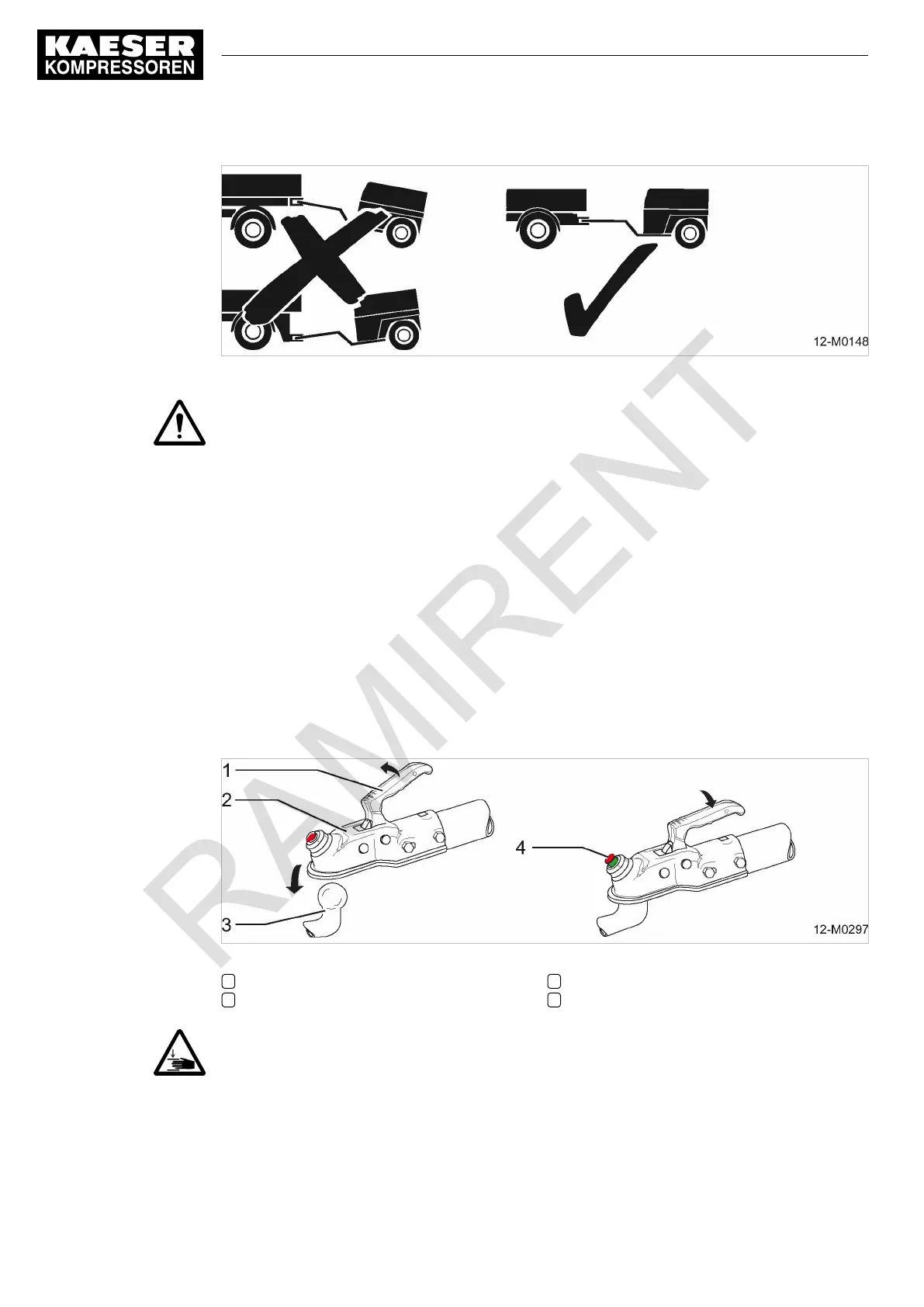

Fig. 80 Towing alignment
1. WARNING!
Danger from problematic driving dynamics!
The permissible loading range may be exceeded or undercut.
Personal injury may result from towing.
Damage to the machine and/or towing vehicle is possible.
➤
Do not couple up the machine at an angle to the towing vehicle.
➤ Ensure that the towbar is horizontal when coupled to the towing vehicle.
2. Adjust the towbar height to suit the height of the hitch on the towing vehicle.
Further information See chapter 6.4.1 for tow bar height adjustment.
12.2.2.2 Coupling-up
Coupling machine with ball coupling (EC version):
To hitch up the machine, lower the open coupling onto the ball of the towing vehicle so that it clicks
into place. The coupling is fully locked when the green locking indicator protrudes and is visible
from the side.
Fig. 81 Ball coupling (ALKO-EU)
1 Coupling handle
2 Ball coupling
3 Towing vehicle ball hitch
4 Locking indicator (protruding)
1.
NOTICE!
High risk of injury by trapped fingers!
They can be trapped in the spring-loaded closing mechanism.
➤ Never place your fingers inside an open ball coupling.
➤ Wear safety gloves.
2. Pull up the coupling handle.
The coupling opens.
12 Decommissioning, Storage and Transport
12.2 Transport
228
Service manual Portable compressor
M122
No.: 9_6974 20 E
Option sa, sd
