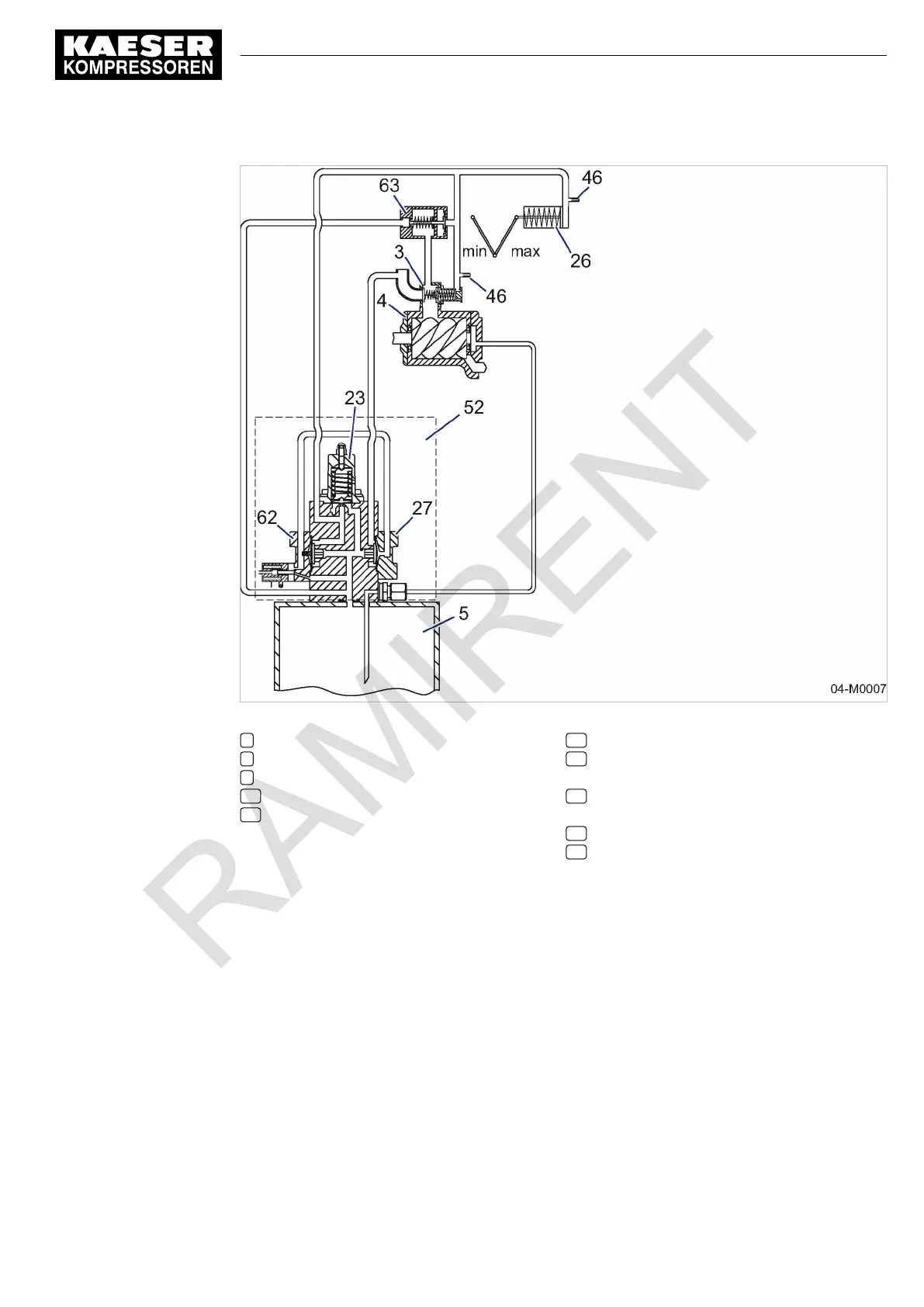

Fig. 6 Stepless regulation of FAD (standstill)
3 Inlet valve
4 Airend
5 Oil separator tank
26 Engine speed control cylinder
46 Nozzle
63 Directional valve (proportional valve)
52 Control valve
comprising the following components:
23 Proportional controller (optionally adjusta‐
ble)
27 Venting valve
62 Combined auxiliary valve (directional con‐
trol valve)
4.5 Safety devices
4.5.1 Monitoring functions with shutdown
The following functions are monitored automatically.
■
Engine oil pressure
■ Coolant temperature
■ Airend discharge temperature
■ Fuel level
■ Engine alternator
4 Design and Function
4.5 Safety devices
No.: 9_6974 20 E
Service manual Portable compressor
M122
35
