10.8.1 Option ea, ec
Tool lubricator maintenance
Material Tool oil (special lubricant for road breakers),
Funnel
Cleaning cloth
Precondition The machine is shut down.
The machine is standing level.
The machine is fully vented, the pressure gauge reads 0 bar.
Machine is cooled down.
All compressed air consumers are disconnected and the air outlet valves are open.

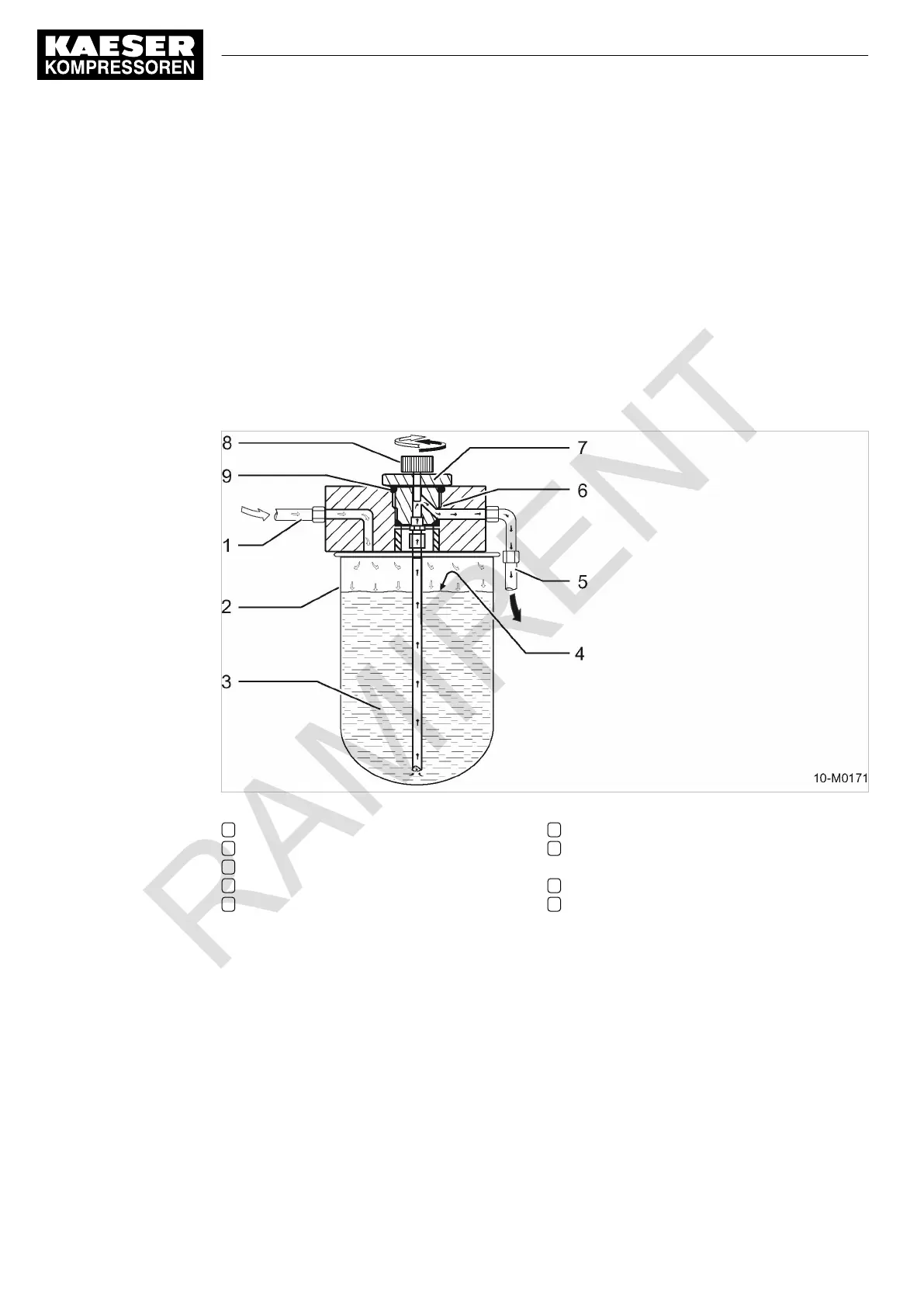

Fig. 71 Tool lubricator maintenance
1 Compressed air inlet
2 Oil tank
3 Oil volume
4 Oil surface
5 Tool oil outlet
6 Tool lubricator upper part with oil filling port
7 Filler plug with dipstick and integrated riser
tube
8 Metering knob
9 O-ring
➤ Open the right-hand access door.
Checking the tool lubricator oil level
Check the oil level daily.
A dip stick is attached to the underside of the oil filler plug with which to measure the oil level.
The oil level should be in the upper third of the dipstick.
1.
Slowly unscrew and withdraw the oil filler plug.
2. Wipe off the dipstick with a lint-free cloth or rag and screw the plug fully in again.
10 Maintenance
10.8 Maintenance of Optional Items
134
Service manual Portable compressor
M122
No.: 9_6974 20 E
