2. Pull on the parking brake to the last ratchet tooth (see Fig. 88/b).
When the hand brake lever is horizontal, the brake is under spring loading.
If the lever is not horizontal, the brake is not fully applied and the machine may roll away.
3.
Detach the breakaway cable.
4. Wind down the jockey wheel.
5. Place chocks under the wheels.
6. Uncouple the compressor from the towing vehicle:
■ Pull up the coupling release lever.
■ Lift the coupling off the towing hitch ball.
Parking the machine with fixed-height chassis (without parking brake):
When parking on a slope, securely chock the machine before uncoupling.

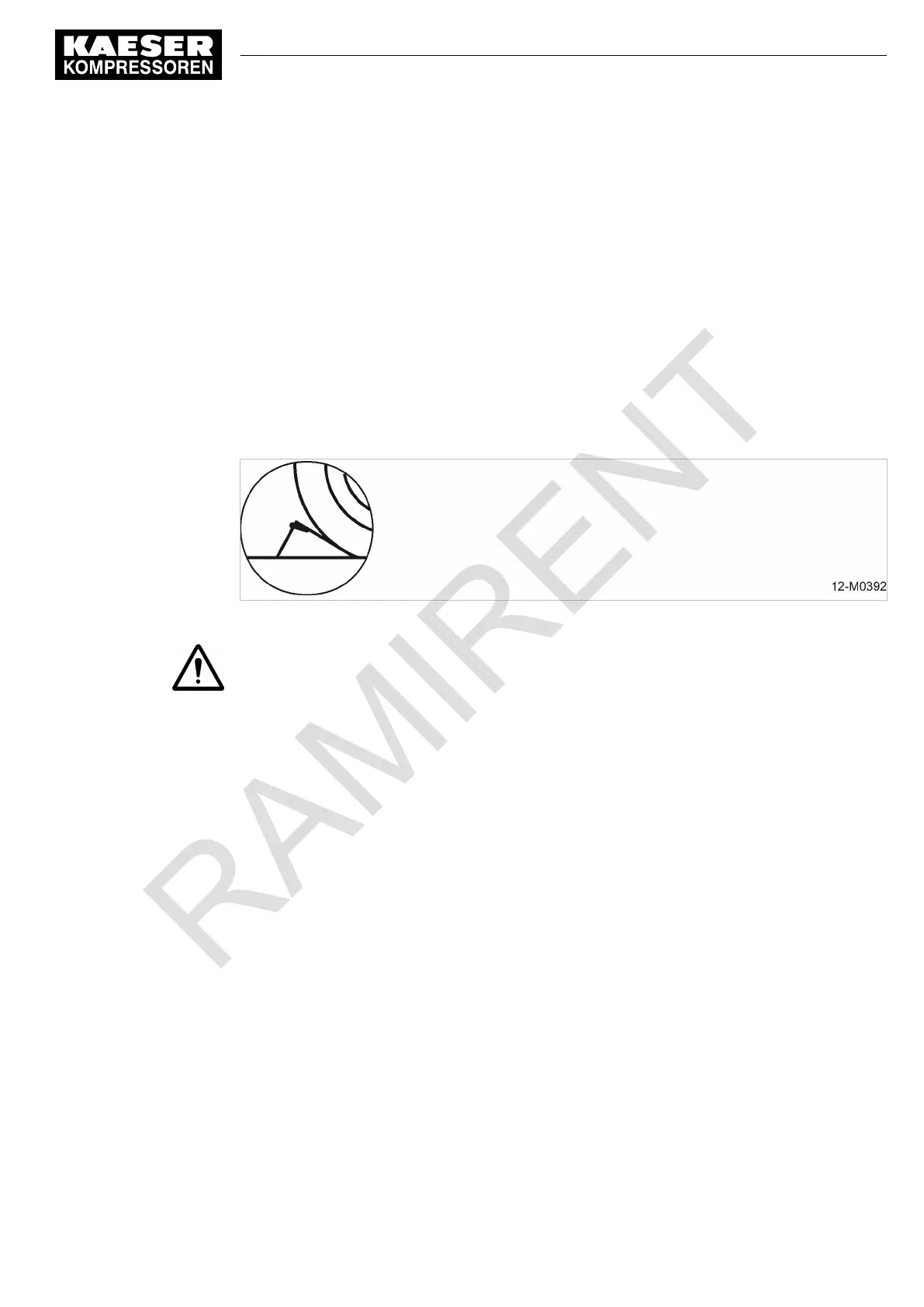

Fig. 89 Safety sign - secure the chocks
1. WARNING!
Machine without parking brake.
Serious injury or death can result from an unsecured machine rolling away.
➤
Securely chock the machine before uncoupling.
➤ As a general rule, the machine should always be blocked with chocks when it is not being
moved.
➤ The machine should not be manoeuvred by hand.
2. Wind down the jockey wheel.
3. Place chocks under the wheels.
4. Dismantle the lighting and signaling system.
5. Uncouple the compressor from the towing vehicle:
■ Withdraw the security pin from the ball coupling.
■ Pull up the coupling release lever.
■ Lift the coupling off the towing hitch ball.
■ Insert the security pin in the ball coupling fixing opening.
12.2.4 Transport with a crane
Additional precautions for conditions of snow and ice:
Considerable snow or ice may build up on the machine under low temperature conditions.
This may adversely effect the machine's centre of gravity.
It is possible that the permissible loading on the crane or lifting eye is exceeded.
12 Decommissioning, Storage and Transport
12.2 Transport
No.: 9_6974 20 E
Service manual Portable compressor
M122
235
