Material Protective gloves
Wrench
Hammer
Installation pin (thin metal rod ø 8–10 mm)
Precondition The machine is shut down.
The machine is disconnected from the towing vehicle and safely parked.
➤ Ascertain which towbar is fitted to the machine.
6.4.2.1 Option sa
Changing the towing eye on a height-adjustable towbar
The following alternative tasks must be carried out to change the towing eye or coupling.

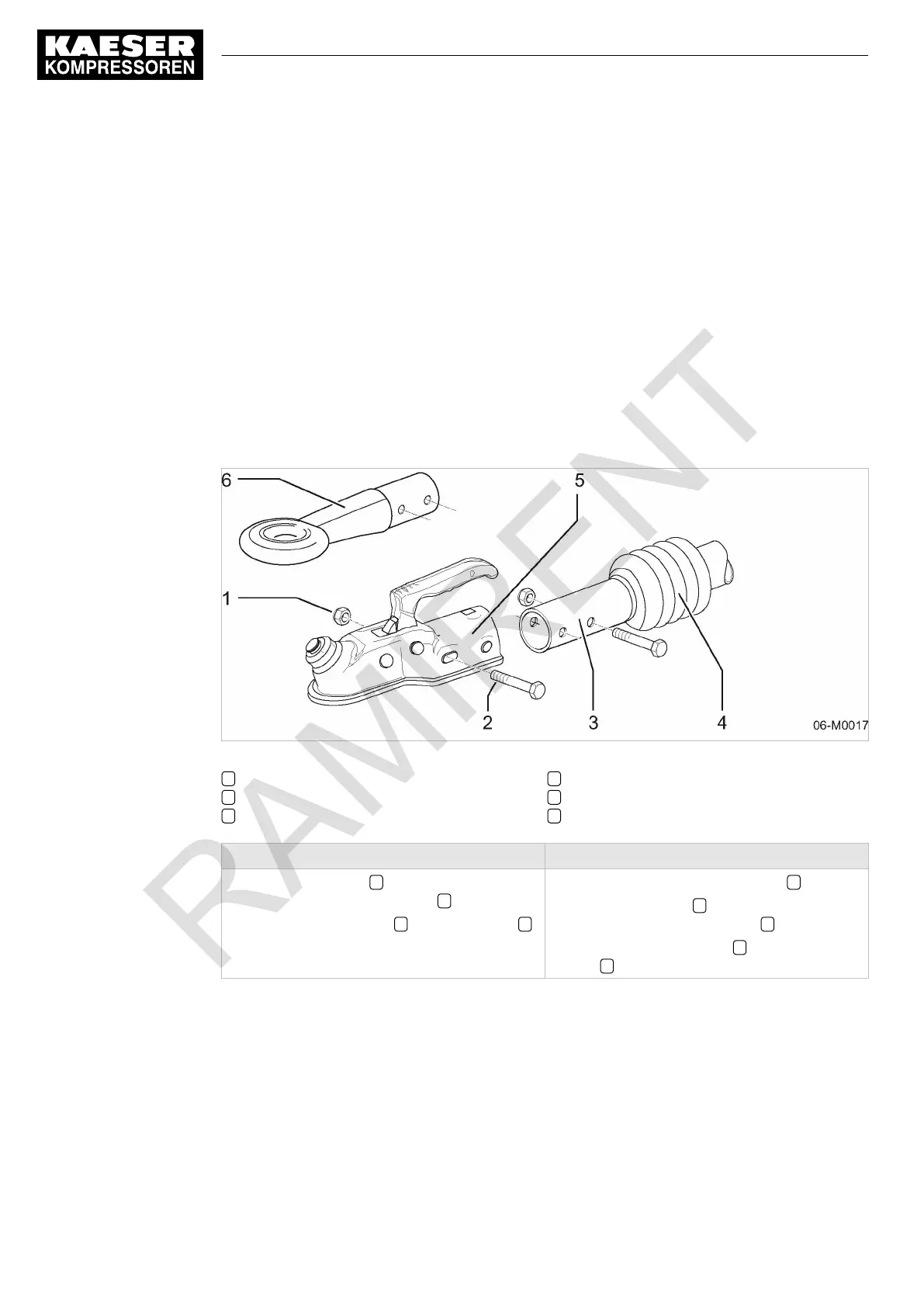

Fig. 24 Changing the towing eye (height-adjustable drawbar)
1 Self-locking hexagon nut
2 Hex-head screw
3 Tension rod
4 Protective sleeve
5 Ball coupling
6 Towing eye
Remove the ball coupling Removing the towing eye
1. Unscrew the nuts 1 of both screw connec‐
tions and withdraw the bolts 2 .
2.
Remove the coupling 5
from the towbar 3 .
1. Push back the protective sleeve 4 .
2.
Unscrew the nuts 1
of both screw connec‐
tions and withdraw the bolts 2 .
3.
Remove the towing eye 6
from the tow‐
bar 3 .
6 Installation
6.4 Adjusting the chassis
54
Service manual Portable compressor
M122 No.: 9_6974 20 E
Option sa
