MULTICAL® 402
Kamstrup A/S · Technical Description · 5512-742_M1_GB_01.2016
31

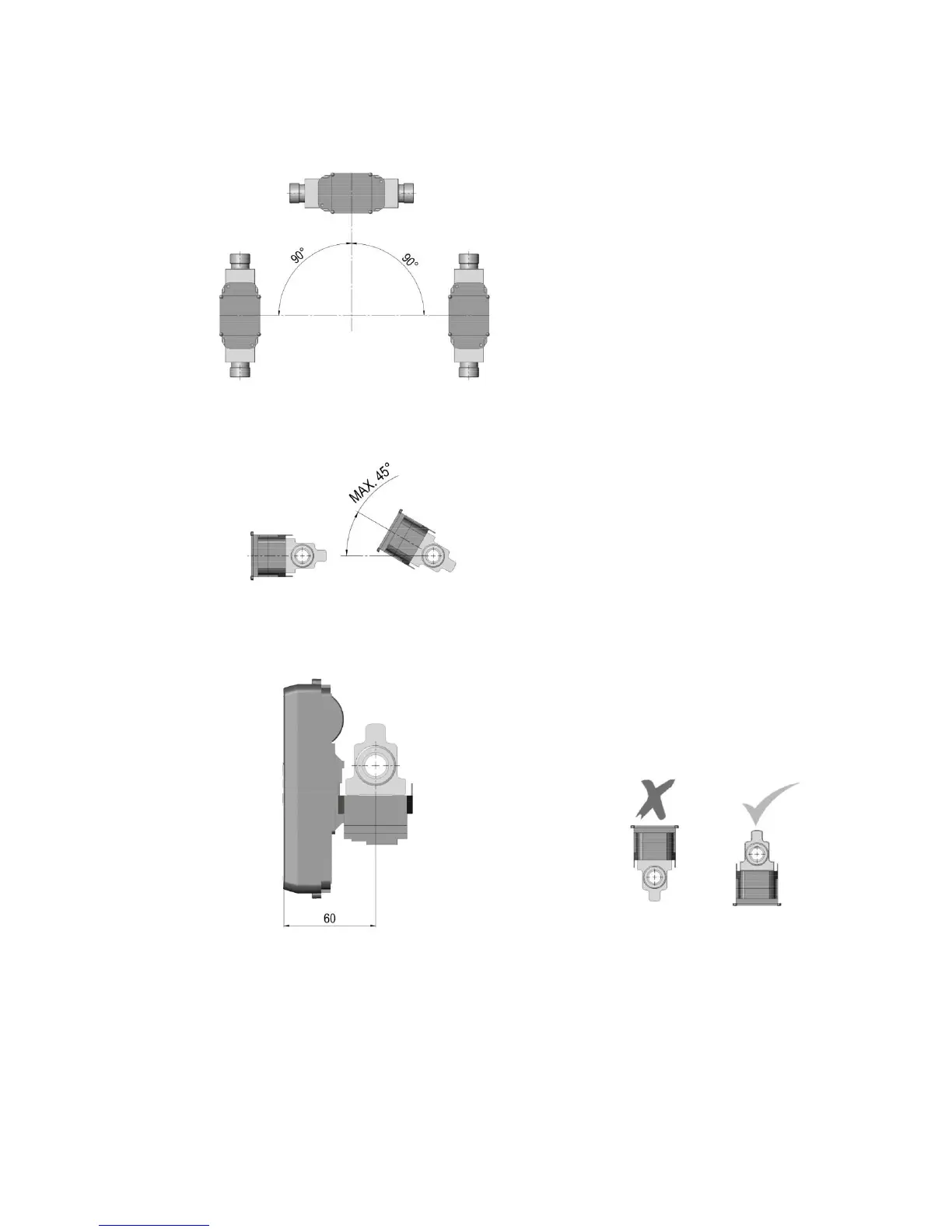

6.2 Installation angle of MULTICAL
®
402
Figure 6
Figure 7
Figure 8 Figure 9
If minimum installation depth (G¾ and G1) is required, The electronics case must not point upwards
the flow sensor must be mounted with the electronics case
pointing downwards and the calculator on the side
MULTICAL
®
402 can be installed
horizontally, vertically, or at an angle
Important!
MULTICAL
®
402 can be turned
max. 45° upwards and max. 90°
downwards compared to the pipe
axis.
