MULTICAL® 402
26
Kamstrup A/S · Technical Description · 5512-742_M1_GB_01.2016

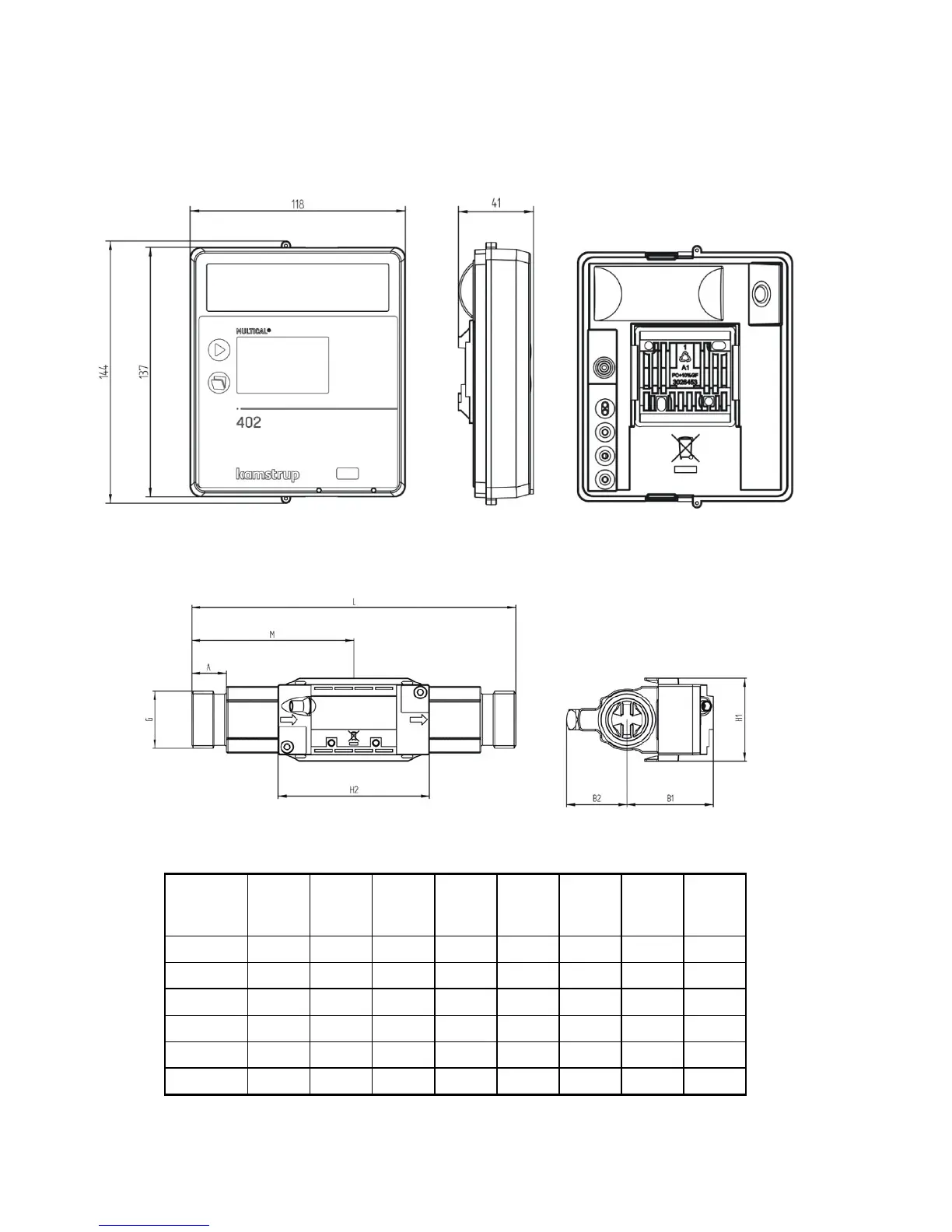

4 Dimensioned sketches
MULTICAL
®
402
Figure 2: Mechanical dimensions of electronics unit
Figure 3: Flow sensor with G¾ and G1 thread connection
Thread L M H2 A B1 B2 H1
Approx.
weight
[
kgs.
]
G¾ 110 L/2 89 10.5 50.5 35 48.5 1.4
G1 (q
p
130 1.5) L/2 89 20.5 50.5 35 48.5 1.5
G1 (q
p
130 3.0) L/2 89 20.5 50.5 35 48.5 1.4
G¾ 165 L/2 89 20.5 50.5 35 48.5 1.8
G1 (q
p
190 1.5) L/2 89 20.5 50.5 35 48.5 2.0
G1 (q
p
190 3.0) L/2 89 20.5 50.5 35 48.5 1.9
Table 2: Weight is inclusive of 3 m short direct sensor set, but exclusive of packing
