7.7 Display functions
MULTICAL
Basically accumulated energy is displayed. Activating the pushbuttons, the display immediately switches to other
readings. The display automatically returns to energy indication 4 minutes after the latest activation of the
pushbuttons.

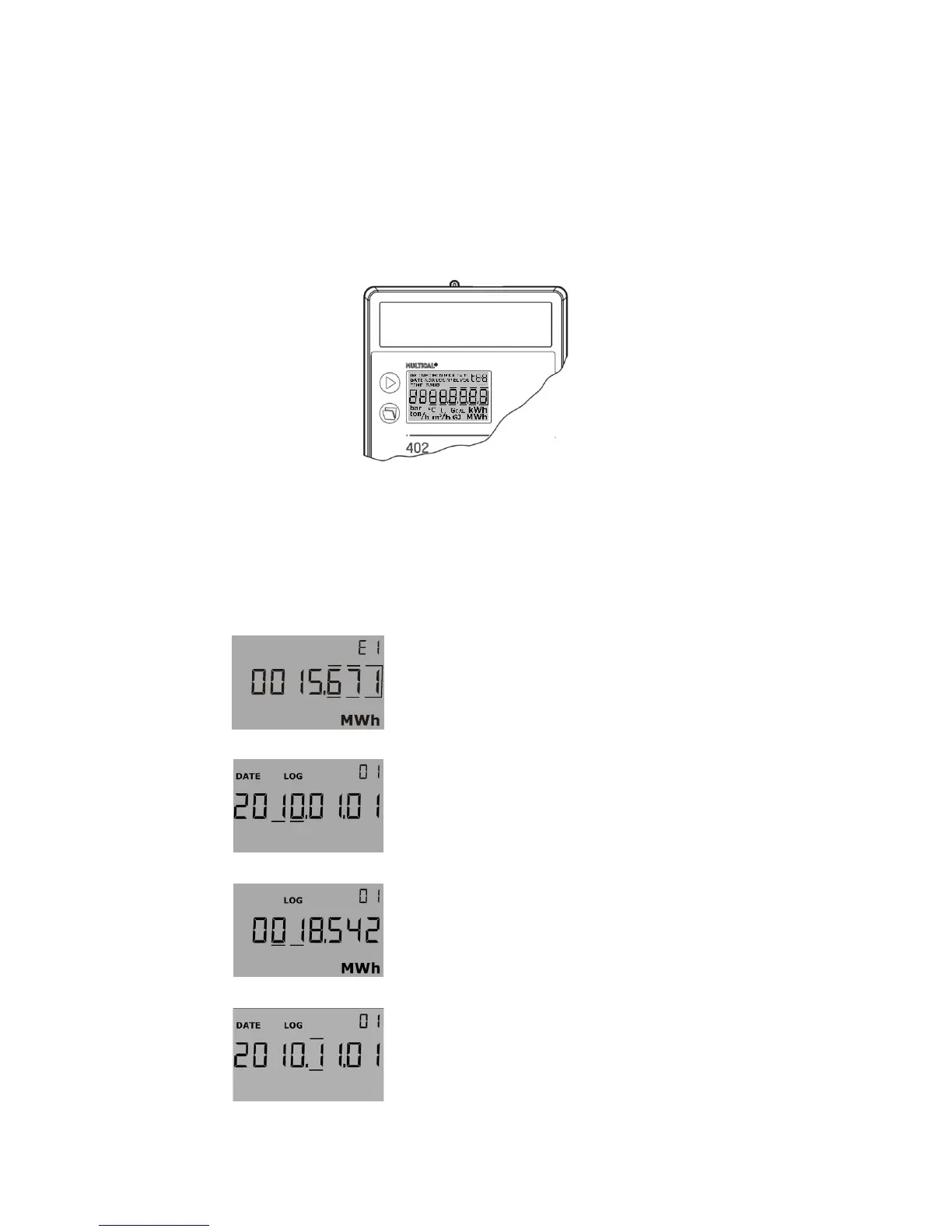

402 is fitted with an easily readable LC-display comprising 8 digits, measuring units and an
information field. Energy and volume readings use 7 digits with corresponding measuring units, whereas 8 digits
are used to display e.g. the meter number.
7.7.1 Primary and secondary readings
The upper pushbutton is shifts between primary readings. Consumers normally use the first primary readings in
connection with self-reading for billing purposes.
The lower pushbutton calls up secondary information on the selected primary reading.
Example: If the selected primary reading is ”heat energy”, the secondary readings can be yearly data and monthly
data for heat energy.
Heat energy E1 in MWh
Yearly data, date of LOG1 (latest yearly reading)
Yearly data, value of LOG1 (latest yearly reading)
Monthly data, date of LOG1 (latest monthly reading)
