MULTICAL® 402
Kamstrup A/S · Technical Description · 5512-742_M1_GB_01.2016
89
13.2.4.1

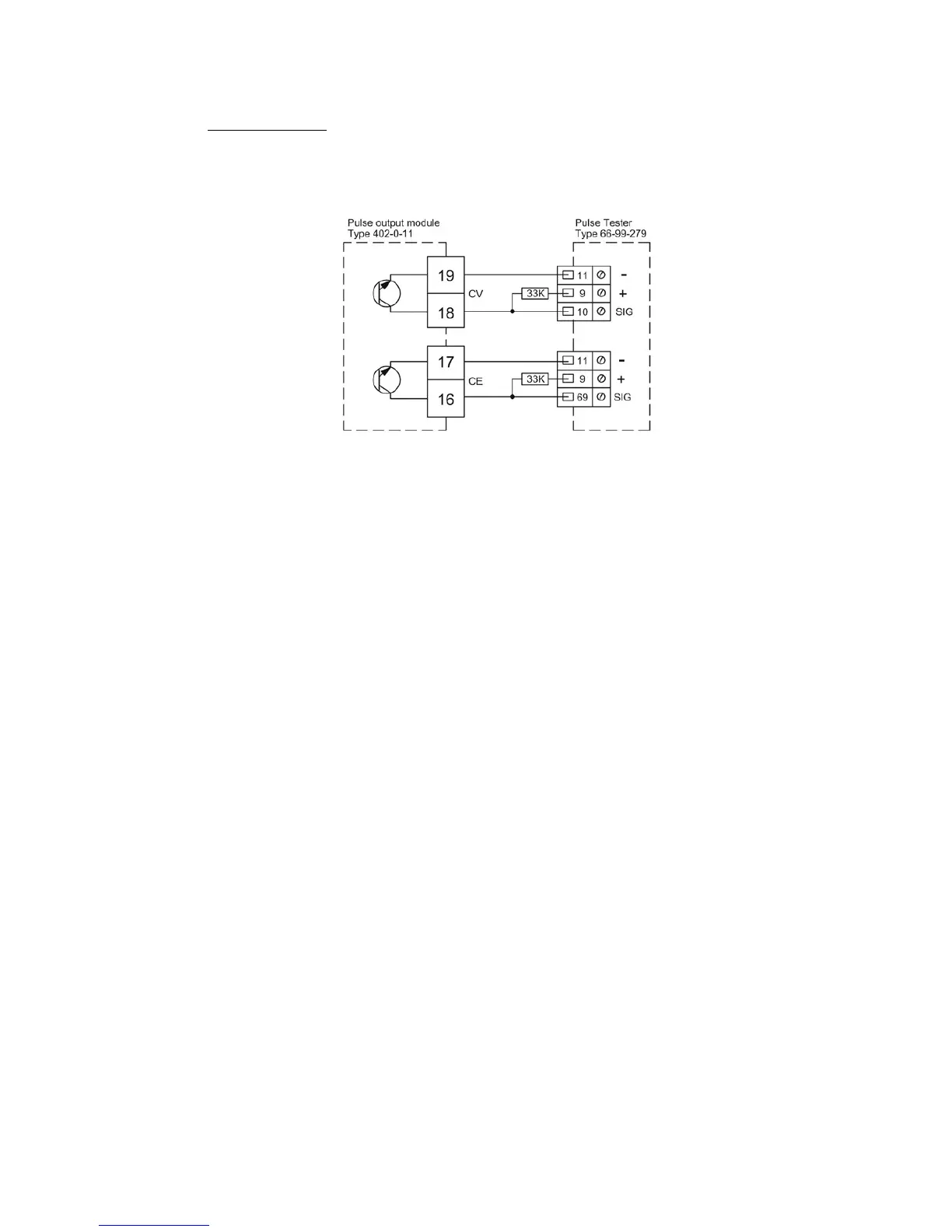

The high-resolution energy and volume pulses can be connected to Kamstrup’s Pulse Tester type 66-99-279 as
shown in the below drawing. It is necessary to connect pull-up resistors of e.g. 33 kΩ as shown in the drawing.
Use of Pulse Tester
