K&R ACD320 Series User Manual

ACD320user manual Type and specification of the inverter
- 7-
2.5 Appearance and parts name explanation

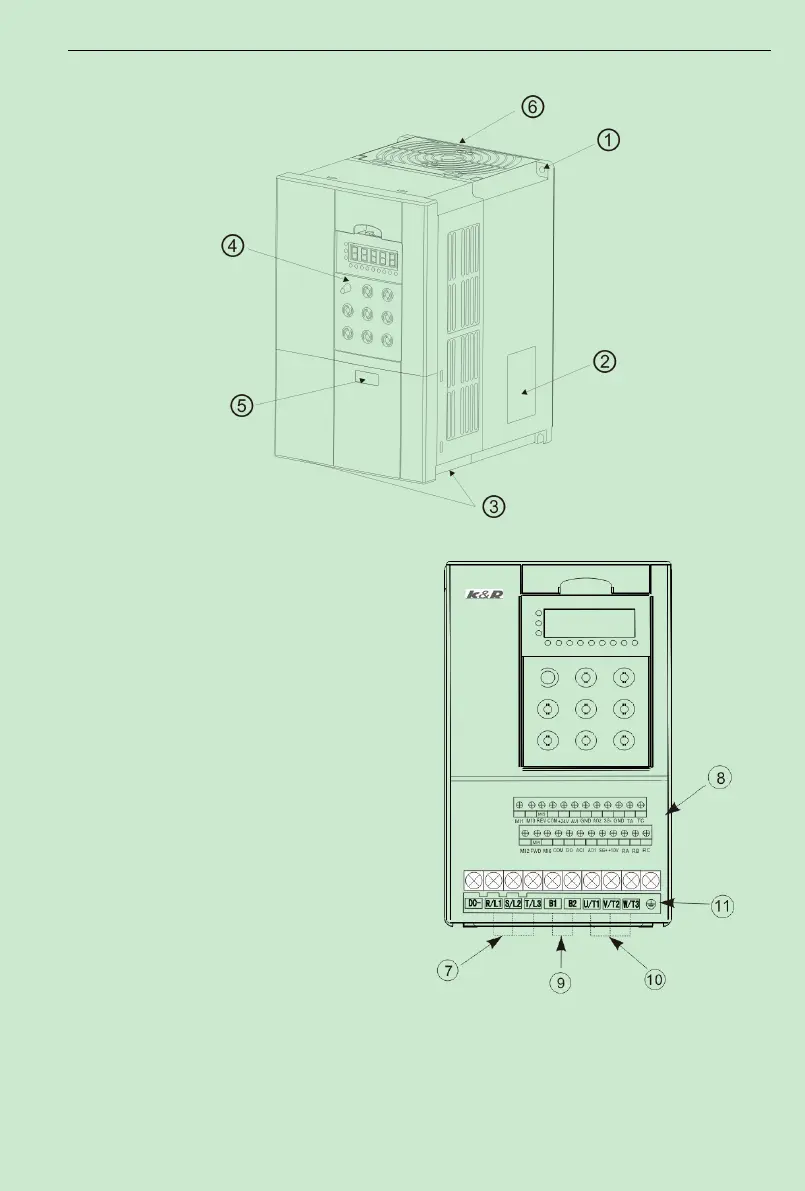

Fig.2-3 parts name sketch
○
1
:Screw hole
○
2
:Nameplate
○
3
:Motor output terminal
lower-cover
○
4
:Operation surface
○
5
:Power input terminal
upper-cover
○
6
:Heat radiation vent
○
7
:Power input terminal
○
8
:External input/output
terminal
○
9
:Energy consumption
braking resistance terminal
○
10
:Motor output end
○
11
:Grounding end

K&R ACD320 Series Specifications

General

Brand	K&R
Model	ACD320 Series
Category	Inverter
Language	English
