ACD320 user manual Parameter Description
- 58-
Value
F0.08 ACCELtime 1 0.1～ 3600.0s 10.0s
F0.09 DECEL time 1 0.1～ 3600.0s 10.0s
Acceleration time means the time t1 required for inverter to accelerate to the maximum
output frequency (F0.04) from 0Hz.
Deceleration time is the time t2 required for inverter to decelerate to 0Hz fromthe
maximumoutput frequency (F0.04).
It is indicated by following figure

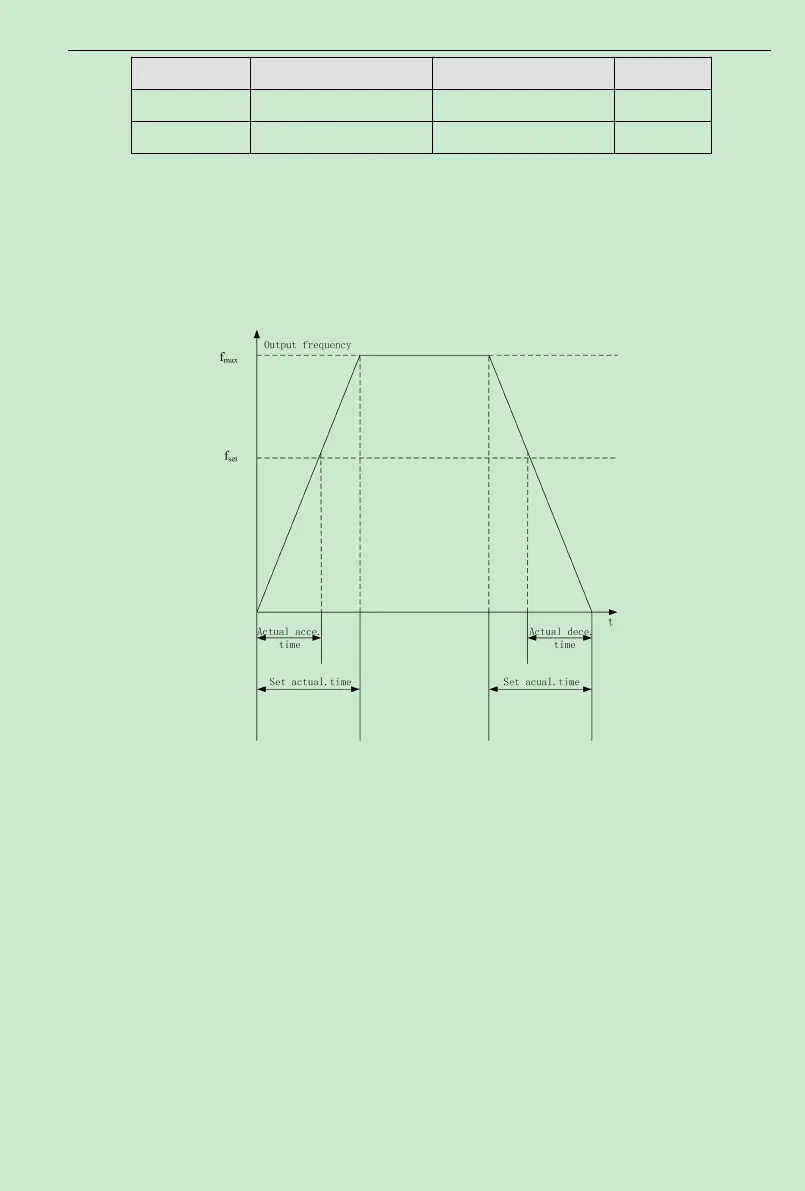

Fig 6-1 Acceleration and Deceleration time diagram
When the set frequency is equal to the maximum frequency, the actual
Acceleration/Deceleration time are equal to the set Acceleration/Deceleration time.
When the set frequency is less than the maximum frequency, the actual
Acceleration/Deceleration time are less than the set Acceleration/Deceleration time.
Actual Acceleration /Deceleration time = set Acceleration/Deceleration time (set
frequency/max.frequency)
ACD320 series inverter has 2 groups ofAcceleration/Deceleration time.
1st group: F0.08, F0.09;
2nd group: F4.00, F4.01;
The Acceleration /Deceleration time can be chosen through multifunction digital input
terminal (F2 Group).
