ACD320user manual Installation and wiring
- 20-
3. 3 BasicWiring Diagram

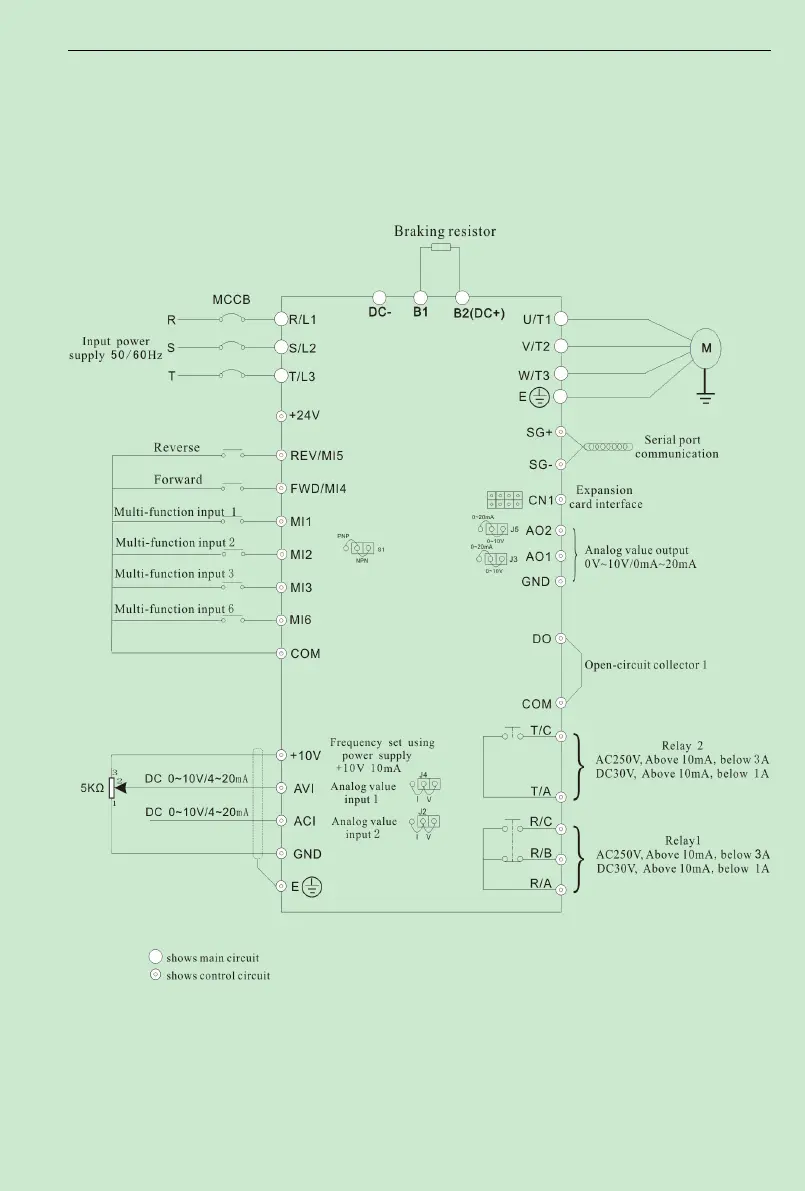

Usersmust connect wires according to the following circuit diagram shown below.
Below 7.5KW
