ACD320 user manual Parameter Description
- 83-
F4.04 The deceleration time of
JOG running
0.1～3600.0s 10.0s
It is to define the inverter set frequency and Acceleration/Deceleration time at Jog operation.
Jog operation is performed by direct start mode and deceleration stop mode.
The Acceleration time of JOG running is the time required for inverter to accelerate from
0Hz to the maximum output frequency (F0.04).
The Deceleration time of JOG runing is the time required for inverter to decelerate from the
maximum output frequency (F0.04) to 0Hz.
Function Code Name Setting Range
Default
Value
F4.05 Skip frequency 0.00～F0.04 0.00Hz
F4.06 Skip frequency range 0.00～F0.04 0.00Hz
When the set frequency is within the skip frequency range, the actual operating frequency
will be operated near the boundary of skip frequency range.
By means of setting skip frequency, the inverter can keep away from the mechanical
resonance point of the load.
This inverter has one skip frequency point available. If these two skip frequencies are both
set to 0, this function will be inactive.

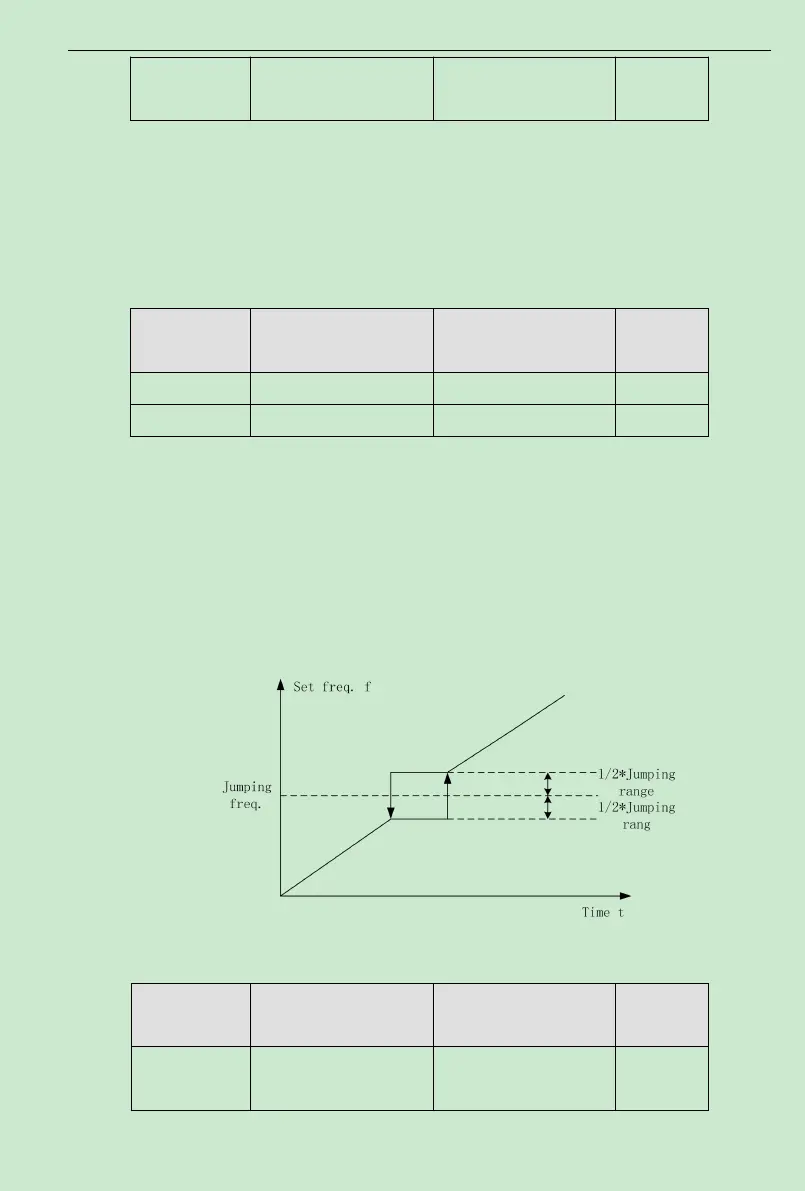

Fig. 6-14 Skip frequency schematic diagram
Function Code Name Setting Range
Default
Value
F4.07 Traverse frequency range
0.0～100.0%（relative to
set frequency）
0.0%
