ACD320 user manual Parameter Description
- 78-
When analog output is current output, 1mAis equivalent to 0.5V For different applications,
the analog output corresponding to 100%output value is different. For details, please refer to the
instruction of each application.
Following figures explain several setting circumstances:

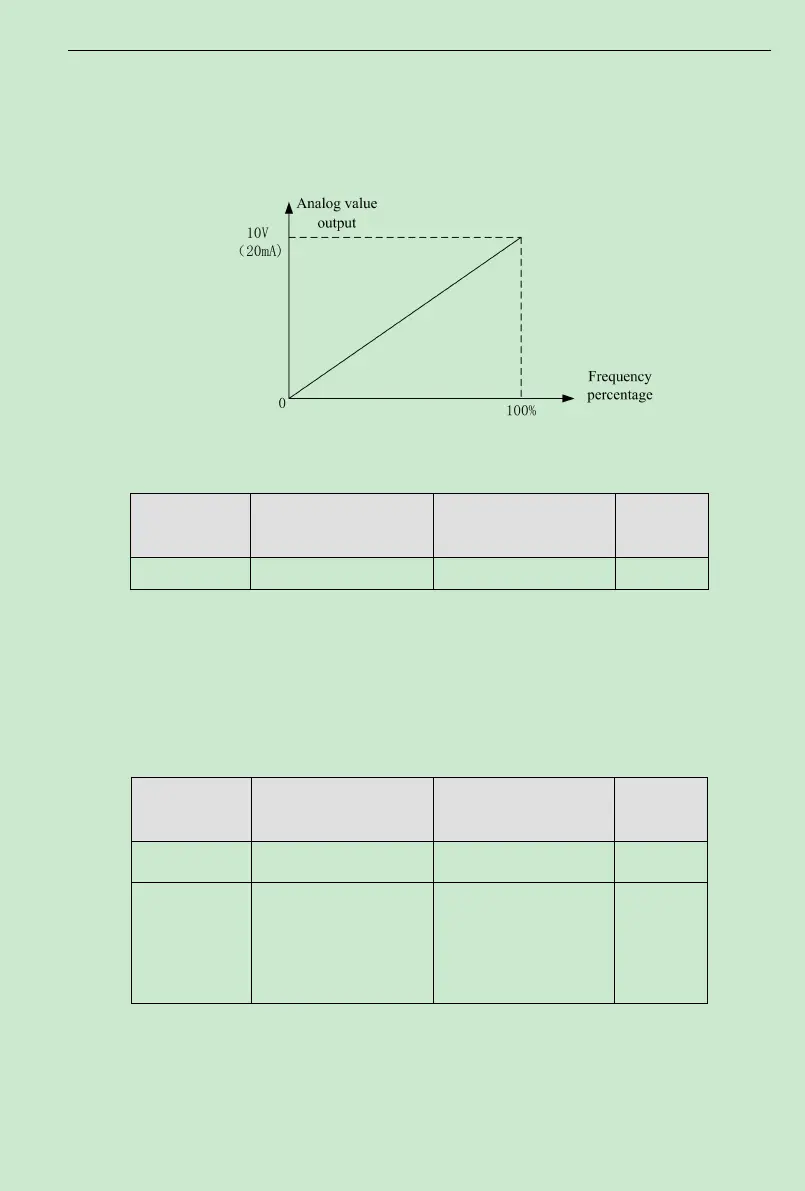

Figure 6-13 The coincidence relationship between assigned value and analog output
6.4 F3 Human Machine Interface Parameters
Function Code Name Setting Range
Default
Value
F3.00 User password 065535 0
User password is applied to prevent non-authorized person to look and modify
parameter.Input a nonzero five digit number as password, then press ENTER/DATA to confirm,
if there is no button operation in one minute, password function becomes effective.
After password becomes effective, customer can not access parameter list if password input
is incorrect. Please remember the password. If it is not necessary to set password, just set 00000
to clear password.
Function Code Name Setting Range
Default
Value
F3.01
Application of
macroinstruction
065535
0
F3.02
Selection of M key
function
0:JOG running
1: Switch between
running forward and
reverse
2: Clear the set of
UP/DOWN
F3.01=1233 the application macro of Offset printing machine, F3.01=1235 the application
macro of engrving machine F3.01=1237 the application macro of constant pressure water
supply.
The only need is to set F3.01 to corresponding macroinstruction, then restore F0.12=1 to
