K&R ACD320 Series - Page 27

ACD320user manual Installation and wiring
- 22-
Above 37KW
：

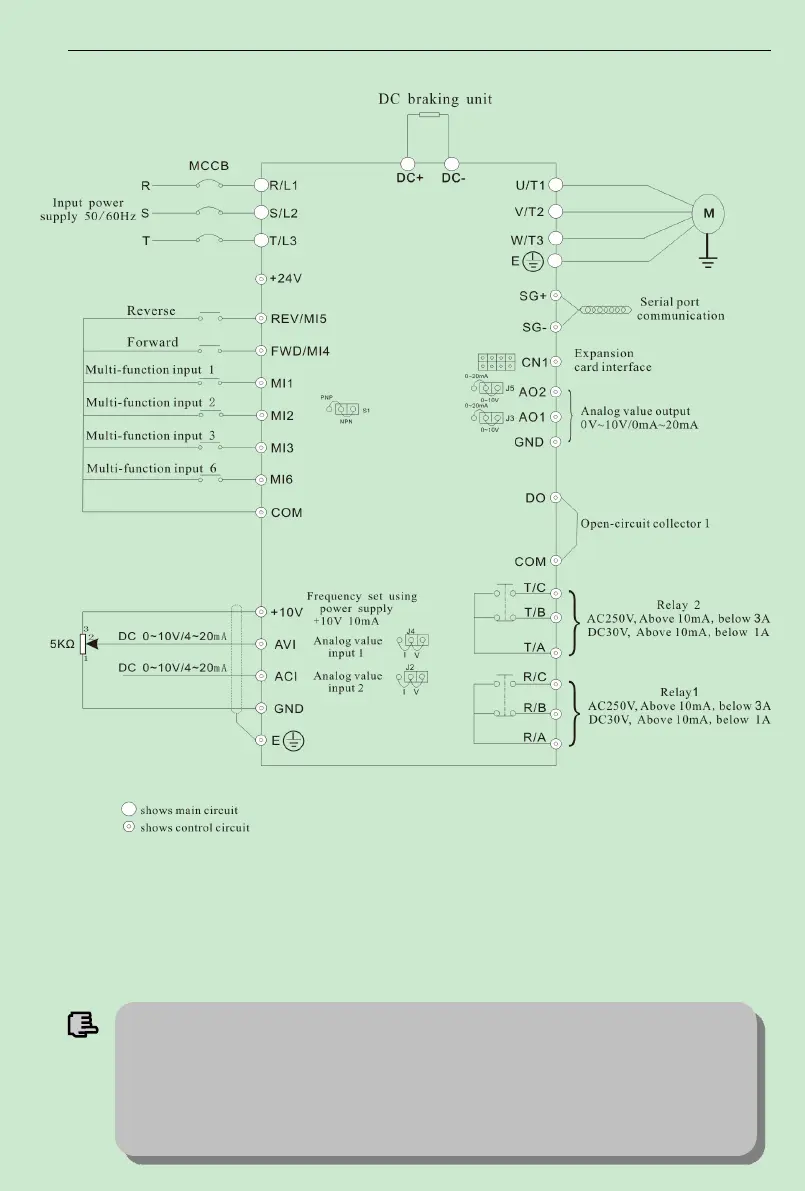

Fig.3-3 Basic running wiring diagram
Note
：
Breaking resistor terminals
（
B2/B1
）
for the inverter of 15KW or below.
Braking unitand and DC link reactor terminals
（
P1/P2/DC-
）
for the inverter 18.5KW~30KW.
Braking unitand terminals
（
DC+/DC-
）
for the inverter above 37KW.
提示
1、 T090、the Cabinet machine of E132、K200、K400 is Built in reactor；
2、 H1 is the height of wall mounted inverter, H2 is the height of clothes closet inverter.
2、E037、E055 is Selection of reactor；
3、The wall hangs machine of E132 is External standard reactor（ ※The wall hangs machine of
E132 has to the outer reactor, The fault of not configued reactor is beyond the scope of the
warranty）
