KEB COMBIVERT F5 Reference Manual

Dimensions in inches
Housing A B C F G H
E 5.12 11. 4 8.75 0.28 - 10.8
G 6.7 13.4 10.0 0.28 5.9 13.0
H 11. 7 13.4 10.0 0.28 9.8 13.0
R 13.5 20.5 14.0 0.394 11. 8 19.5
R* 13.5 20.5 10.9 0.394 11. 8 19.5
U 13.5 31.5 14.0 0.394 11. 8 30.5
W 26.4 37.0 14.5 0.512 24.8 35.8

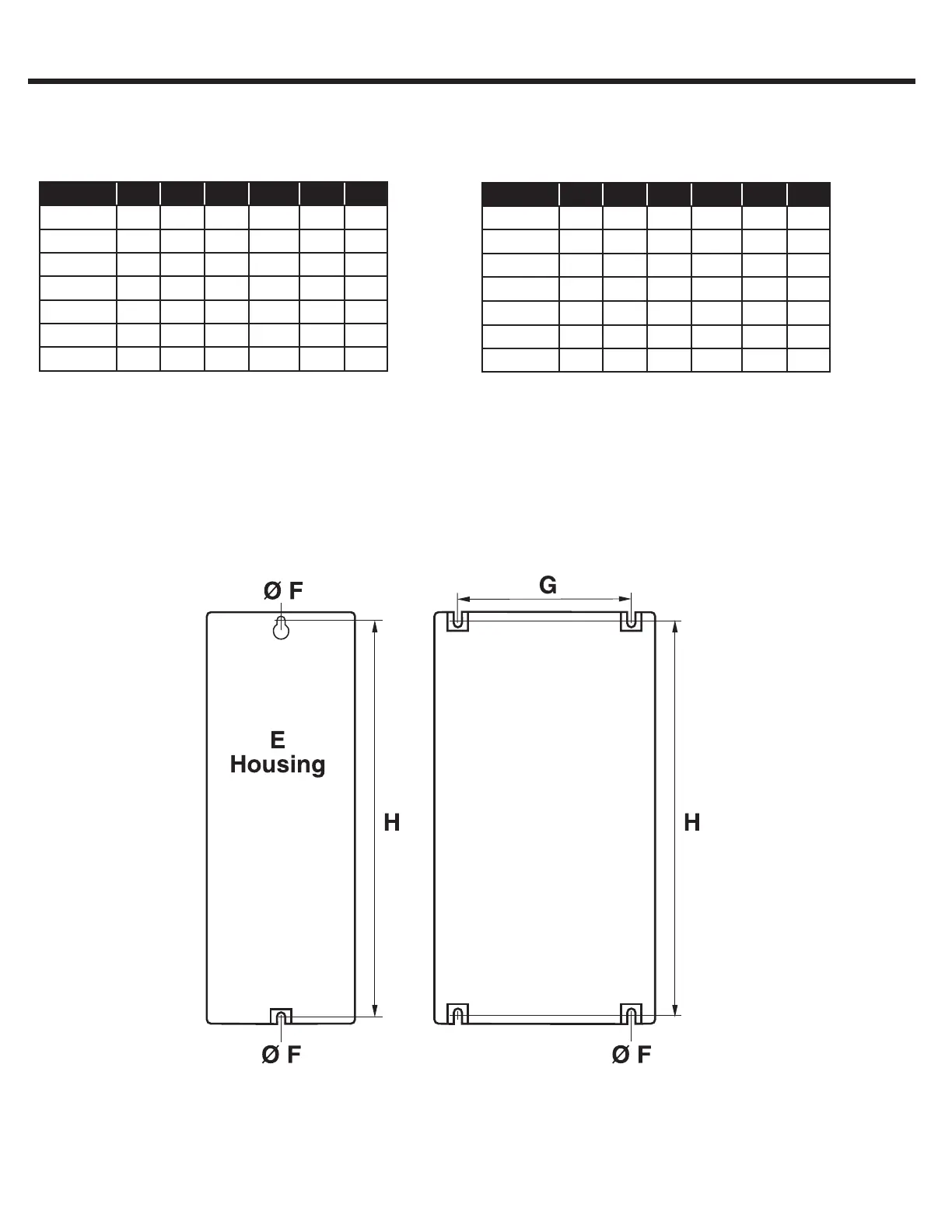

Mounting Holes
Dimensions in mm
Housing A B C F G H
E 130 290 222 7 - 275
G 170 340 255 7 150 330
H 297 340 255 7 250 330
R 340 520 357 11 300 495
R* 340 520 278 11 300 495
U 340 800 357 11 300 775
W 670 940 368 13 630 910
G,H,R,U,W
Housings
Dimensions and weight
32

KEB COMBIVERT F5 Specifications

General

Category	DC Drives
Enclosure Rating	IP20
Control Mode	Vector Control, V/f Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Fieldbus Communication	PROFIBUS, CANopen
Communication Interfaces	RS-485
Input Voltage	380-480V AC
Cooling Method	Forced air cooling (fan)
