5. Initial Start Up
The drive and operator must be “synched” before being able to operate. When
the operator/drive are initially booted up, the parameters of each are compared,
and it is determined if the units are synched. If they are not, the user will be
given programming options.
A drive/operator will not be synched under the following conditions:
• A default drive and/or operator is being installed
• The operator was used to program another drive.

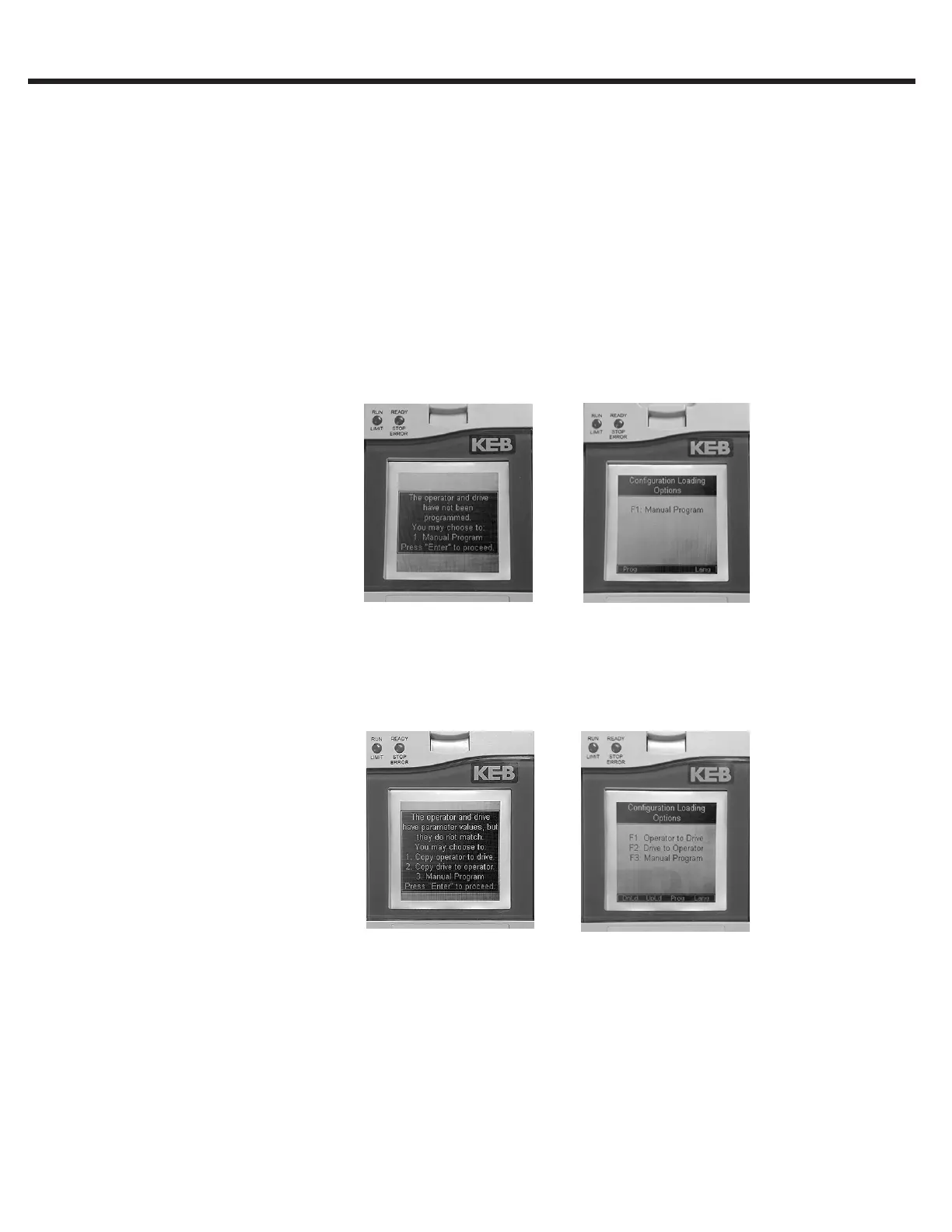

If the drive and operator are default, the user will be prompted to program the
drive manually. See the next section, 5.2 for manual programming.
If either the drive or operator has been programmed previously, the user will
be given three options: 1. Copy operator to drive, 2. Copy drive to operator or
3. Manual program.
Copy operator to drive (Previously Programmed Operator):
1. Install the operator keypad, the boot sequence will begin and the display
will indicate that the settings between the drive and operator do not match and
that they are not synchronized; press the ENTER button to proceed.
2. Press the F1 button under “Dnld.” The operator parameters will be
downloaded to the drive.
3. Once the process is complete, the home screen will be displayed. The mode
window will display “idle” and the Ready / Stop / Error light will be green to
indicate that the drive is ready for operation.
5.1 Connecting the
drive and operator
5.1.1 Default Operator
and Drive
5.1.2 Previously
Programmed Operator
or Drive
Initial Start Up
