The Serial LCD v3.34 is supported by a control card v4.3 or higher. The F5
control card software version can be found in Diagnostics Screen #9 (See
section 4.8 for more information on Diagnostics).
v3.34 can upload and synchronize with drives that have been
programmed with previous versions, beginning with v3.21. However,
previous versions cannot upload and synchronize with drives that
have been programmed with v3.34.
The home screen provides a split menu with basic diagnostics. The F2
hotkey accesses the diagnostic menus. The F3 hotkey accesses the
programming menu. The F4 hotkey accesses the language settings.
F1 F2 F3 F4
4.3 Backward
Compatibility

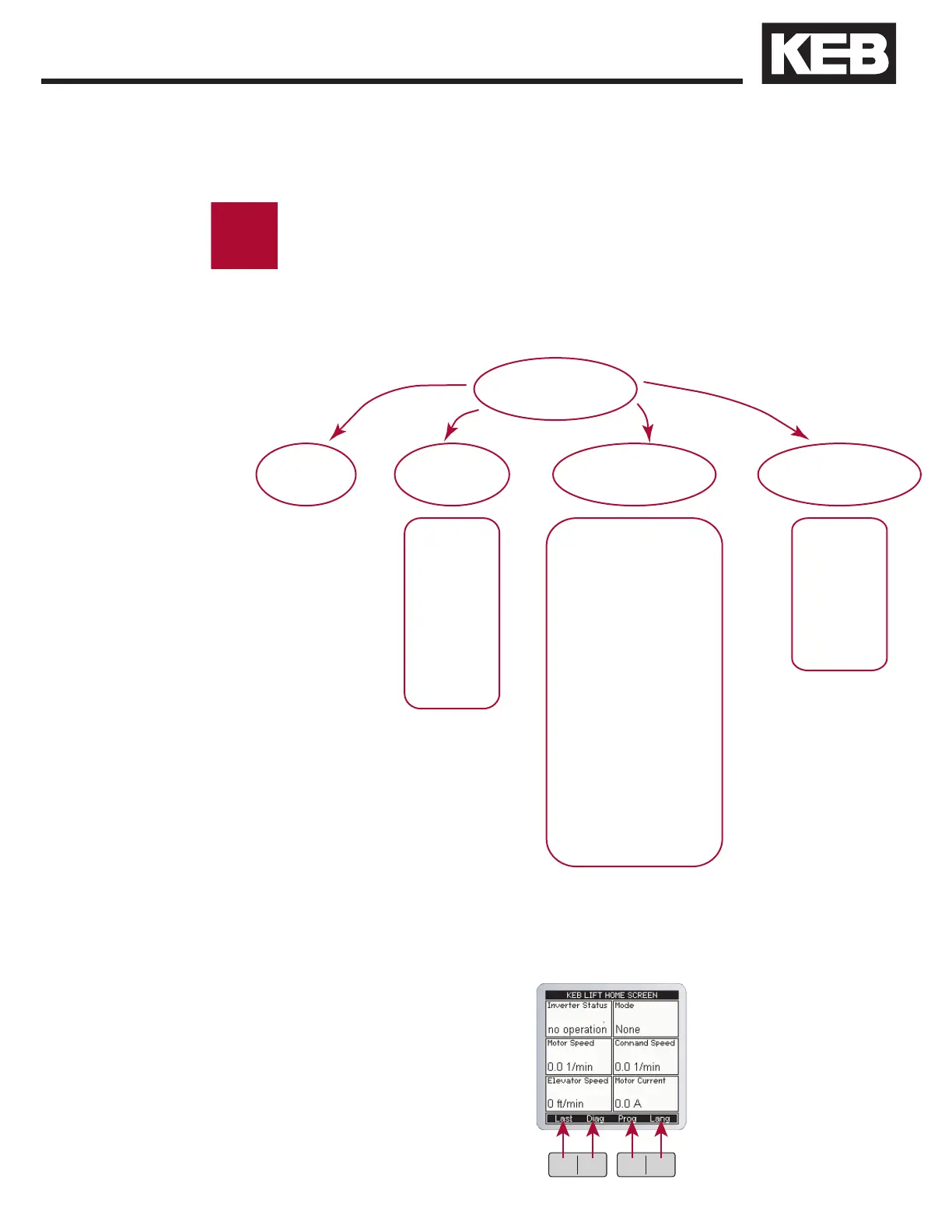

4.4 Menus and
Navigation
Overview
HOME
Lang (F4)Prog (F3)Diag (F2)Last (F1)
Screen #1
Screen #2
Screen #3
...
...
...
Screen #10
Fault Log
Screen # 12
English
Spanish
French
German
Italian
Portuguese
Russian
Operator System
Configuration Handling
Basic Setup
Inputs
Motor Data
Encoder Data
Machine Data
Speed Profile
Tune Parameters
Control Settings
Timer Parameters
Positioning Parameters
Special Functions
Analog I/O
Outputs
Field Bus Configuration
Terminal Slowdown
4.5 Home Screen
LCD Keypad
77
