KEB COMBIVERT F5 Reference Manual

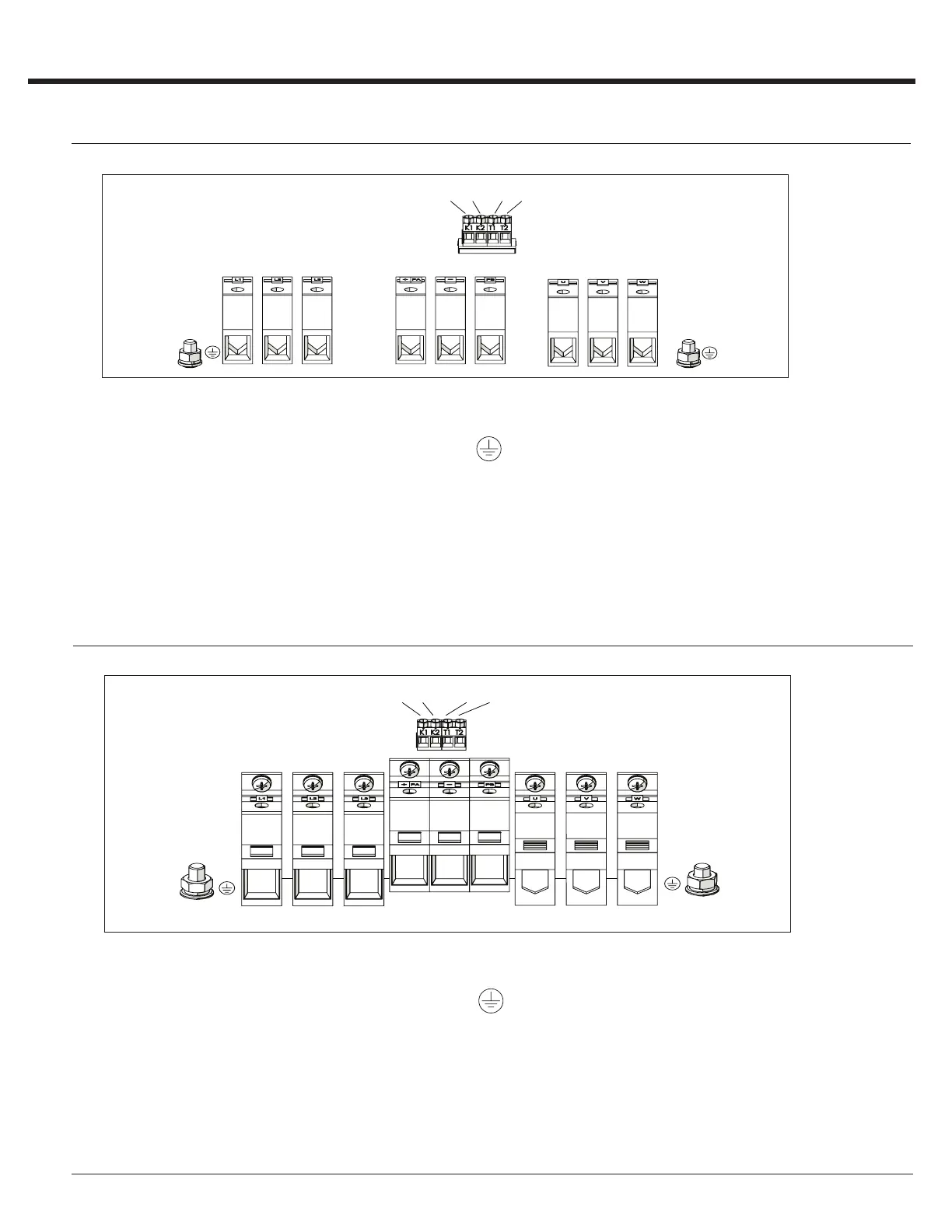

Housing Size R
T1, T2 Connection for temperature sensor
K1,K2 Brake transistor monitor terminals
U, V, W Motor connection
Connection for earth ground M8 stud.
Note: Ground Stud and Nut shall be connected with UL
Listed Ring Connectors (ZMVV), rated suitable.
Note always verify input voltage with name plate for proper connection
L1, L2, L3 3 phase supply voltage
+PA, - DC supply connection
+PA, PB Connection for braking resistor
Terminal Tightening Torque: housings size <= 22: 53 inlb (6Nm)
housings size 23/24: 133inlbs (15Nm)
Ground nut on R housing: 89inlbs (10Nm)
Verify input voltage with name plate for proper connection 230V or 480V

Housing Size W - Refer to power stage manual, Material Number 00F50EB-KW00
L1 L2 L3 +PA- PB UVW
K1 K2 T1 T2
Housing Size U
T1, T2 Connection for temperature sensor
K1,K2 Brake transistor monitor terminals
U, V, W Motor connection
Connection for earth ground M8 stud.
Note: Ground Stud and Nut shall be connected with UL
Listed Ring Connectors (ZMVV), rated suitable.
Note always verify input voltage with name plate for proper connection
L1, L2, L3 3 phase supply voltage
+PA, - DC supply connection
+PA, PB Connection for braking resistor
Terminal Tightening Torque: U housings size 23/24: 133inlbs (15Nm)
U housings sizes > 24: 221inlbs (25Nm)
Ground nut on U housing: 89inlbs (10Nm)
Verify input voltage with name plate for proper connection 230V or 480V

L1 L2 L3
+PA-PB
UVW
K1 K2 T1 T2
Power Connections
34
