KEB COMBIVERT F5 Reference Manual

345

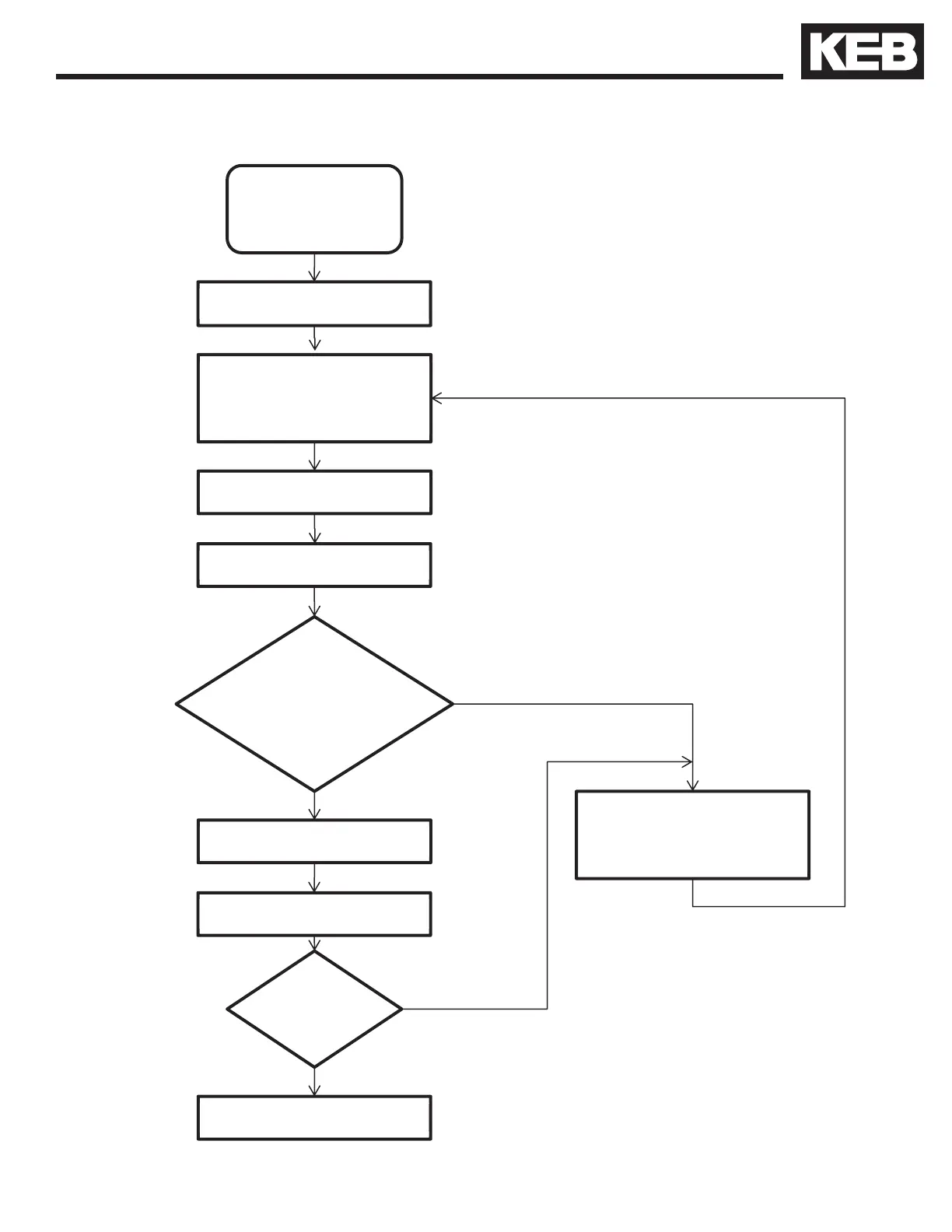

Checking the Brake
Switch Funcon at
stop
Remove 24V on the Brake [1
or 2] Release Confirmaon
input
Drive trips
Brake [1 or 2]
Switch Failure?
Yes
Release the run command
Reset the error
Error is
reset?
Funcon works as intended
Yes
Funcon is not properly
working. Check sengs and
connecons.
No
No
Give a run command
Keep the 24V off the input
Restore 24V to the input
345
Brake Release Conrmation Tests

KEB COMBIVERT F5 Specifications

General

Category	DC Drives
Enclosure Rating	IP20
Control Mode	Vector Control, V/f Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Fieldbus Communication	PROFIBUS, CANopen
Communication Interfaces	RS-485
Input Voltage	380-480V AC
Cooling Method	Forced air cooling (fan)
