KEB COMBIVERT F5 Reference Manual

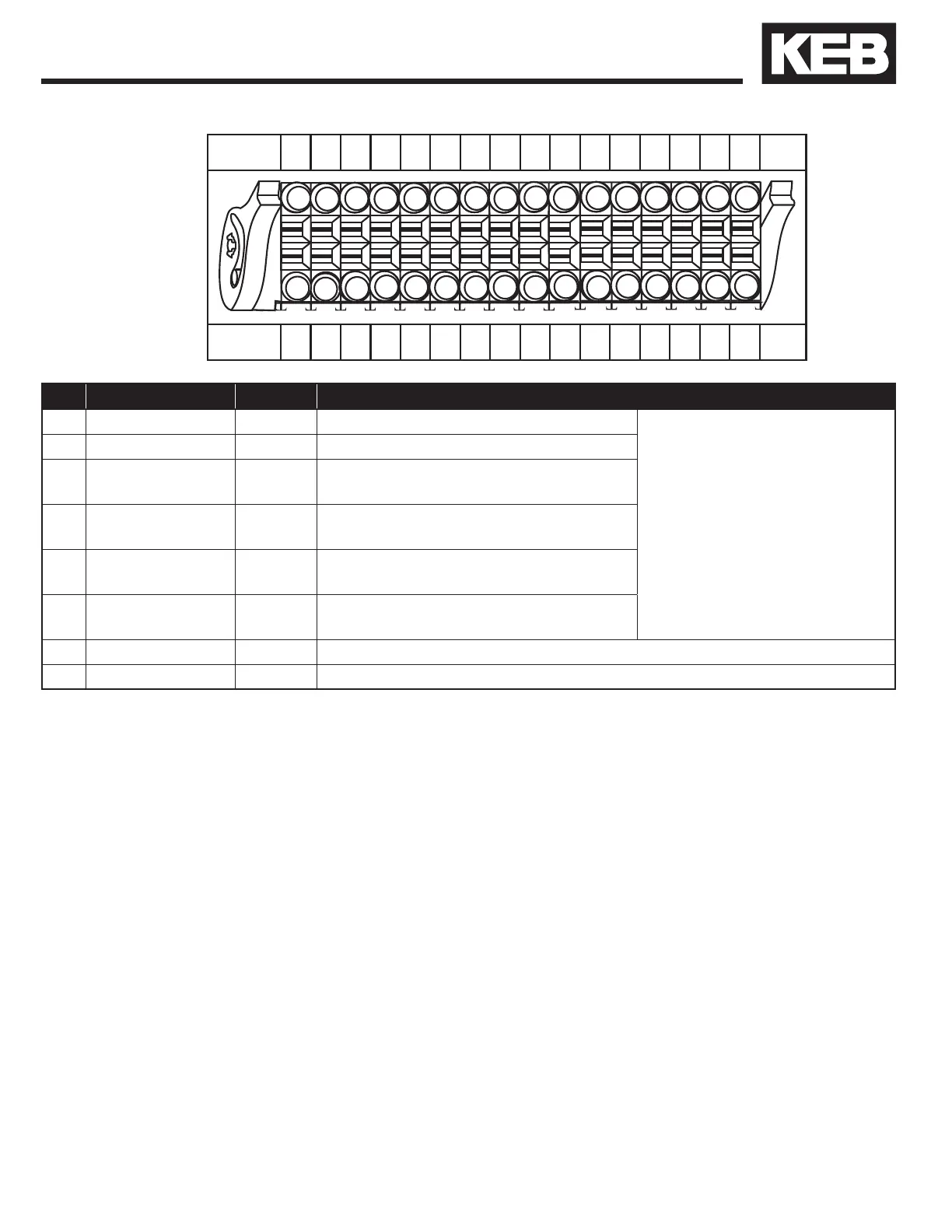

Pin Function Name Description
25 Relay 2 Common COM See pin 29
V
MAX
= 30VDC
I = 0.01...1A
26 Relay 1 Common COM See pin 30
27
Relay 2 NC
Contact
NC
See pin 29
28
Relay 1 NC
Contact
NC
See pin 30
29
Relay 2 NO
Contact
NO Programmable Output LO20
Default = Brake Control
30
Relay 1 NO
Contact
NO Programmable Output LO15
Default = Off
31 Digital Common 0V Reference potential for digital inputs/outputs
32 24V Output V
out
Approx. 24VDC output (max. 100mA load)
312927252321191715131197531
3230282624222018161412108642
47
Control Connections (Safety)

KEB COMBIVERT F5 Specifications

General

Category	DC Drives
Enclosure Rating	IP20
Control Mode	Vector Control, V/f Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Fieldbus Communication	PROFIBUS, CANopen
Communication Interfaces	RS-485
Input Voltage	380-480V AC
Cooling Method	Forced air cooling (fan)
