KEB COMBIVERT F5 Reference Manual

Depending on the type of encoder interface used, below are the general
specications of the incremental channel signals.

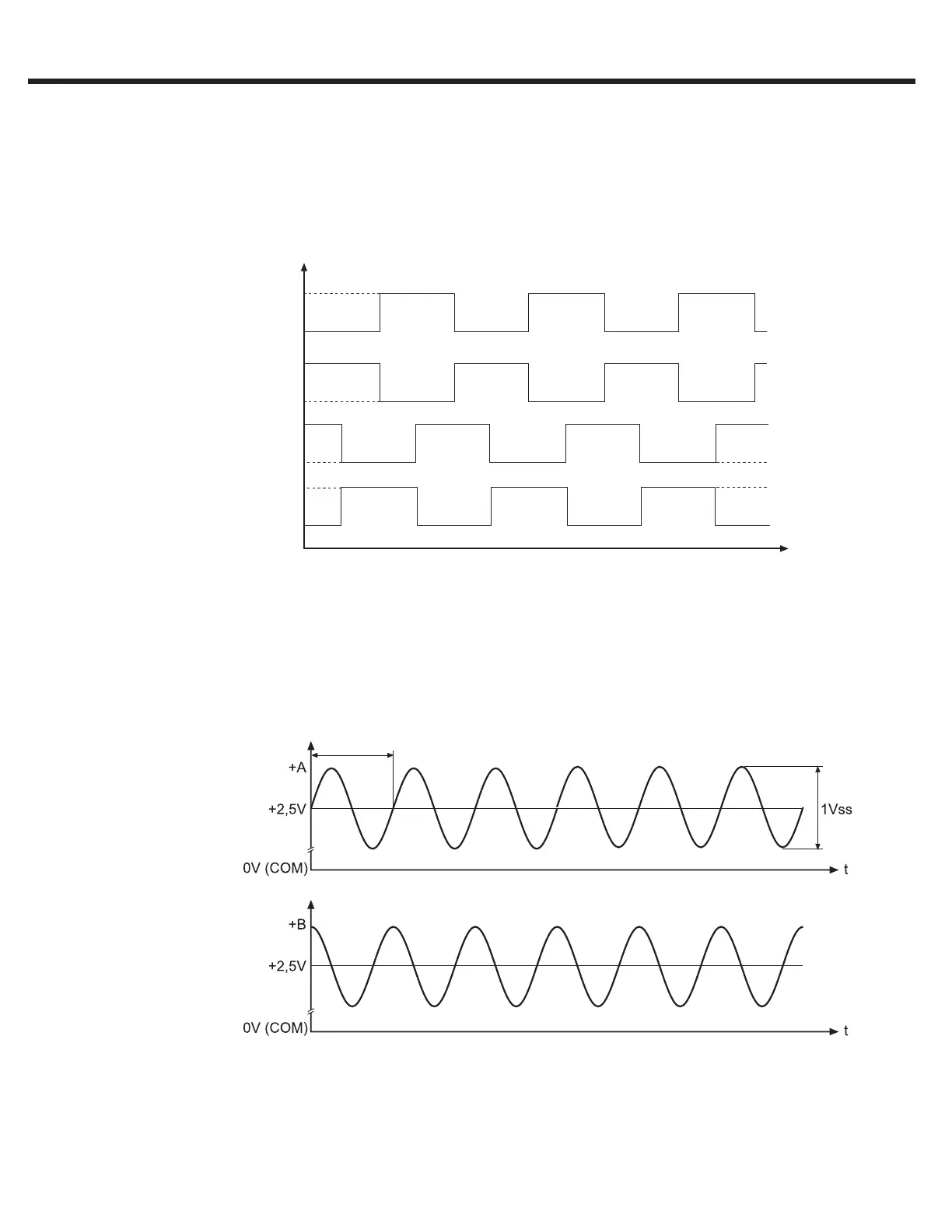

TTL incremental input/output signal channels














 

Signal format of EnDat, Sin/Cos, SSi, Hiperface encoder input chan-
nels A and B (SIN and COS)
1 wave cycle per increment
Encoder Feedback Overview
52

KEB COMBIVERT F5 Specifications

General

Category	DC Drives
Enclosure Rating	IP20
Control Mode	Vector Control, V/f Control
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short circuit
Fieldbus Communication	PROFIBUS, CANopen
Communication Interfaces	RS-485
Input Voltage	380-480V AC
Cooling Method	Forced air cooling (fan)
