Keba ServoOne Series - Page 21

Operation Manual ServoOne Supply Unit
21
ID no.: 1101.21B.6-00 Date:04/2020
ServoOne DC BG1 ServoOne DC BG2
ServoOne DC BG3 ServoOne DC BG4
ServoOne DC BG5
ServoOne DC BG6a
with liquid cooling
ServoOne
Supply unit BG7
with liquid cooling
B
A
20 mm 28 mm
≥ 40 mm

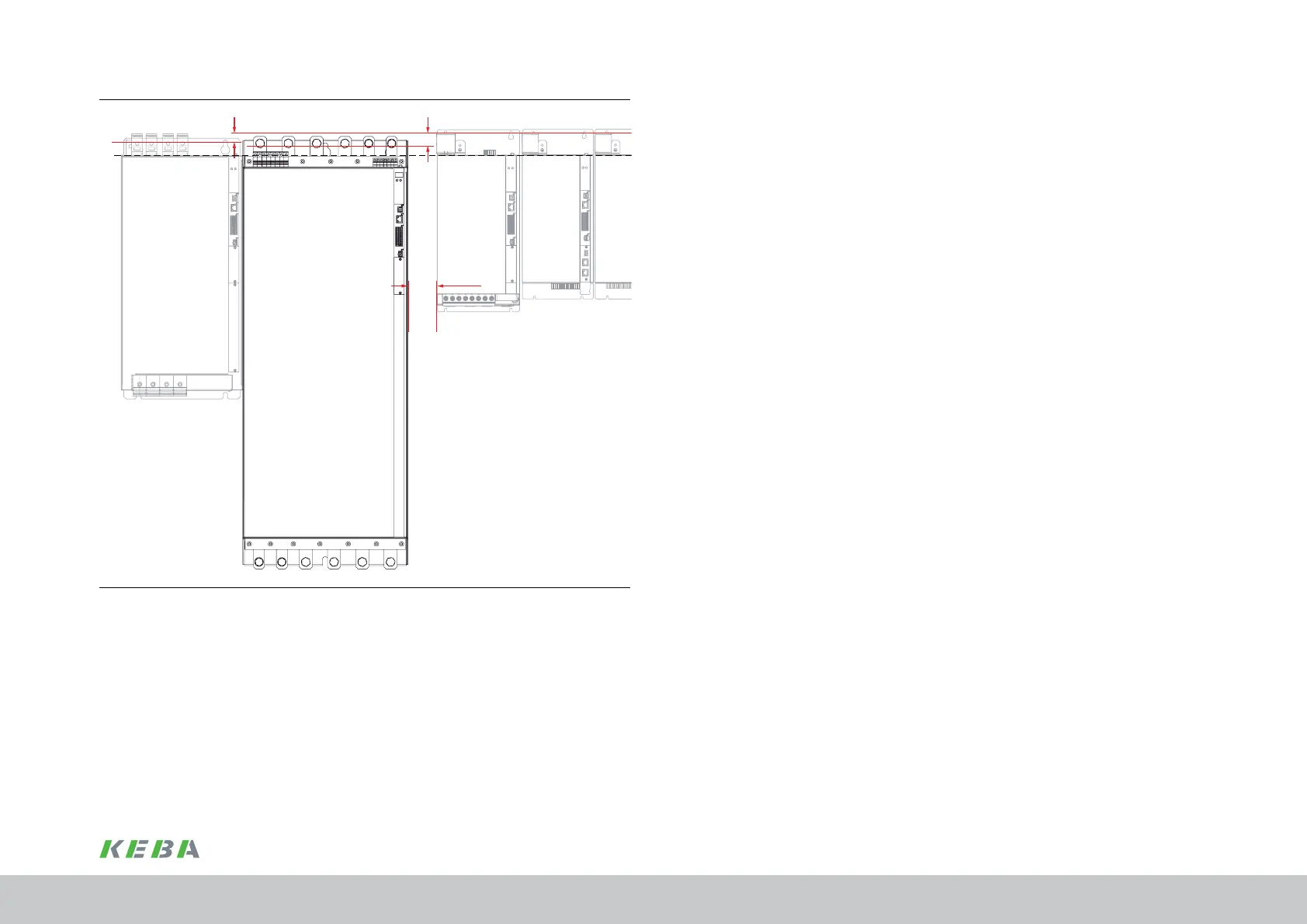

Figure 3.10 Butt mounting axis group with liquid cooling and supply unit BG7
Mechanical installation
