Operation Manual ServoOne Supply Unit
48
ID no.: 1101.21B.6-00 Date:04/2020
ServoOne DC BG1 ServoOne DC BG2 ServoOne DC BG3 ServoOne DC BG4
ServoOne
Supply unit BG 5
+ +
+
–
–––
+
–
+
X11 X11 X11 X11 X11

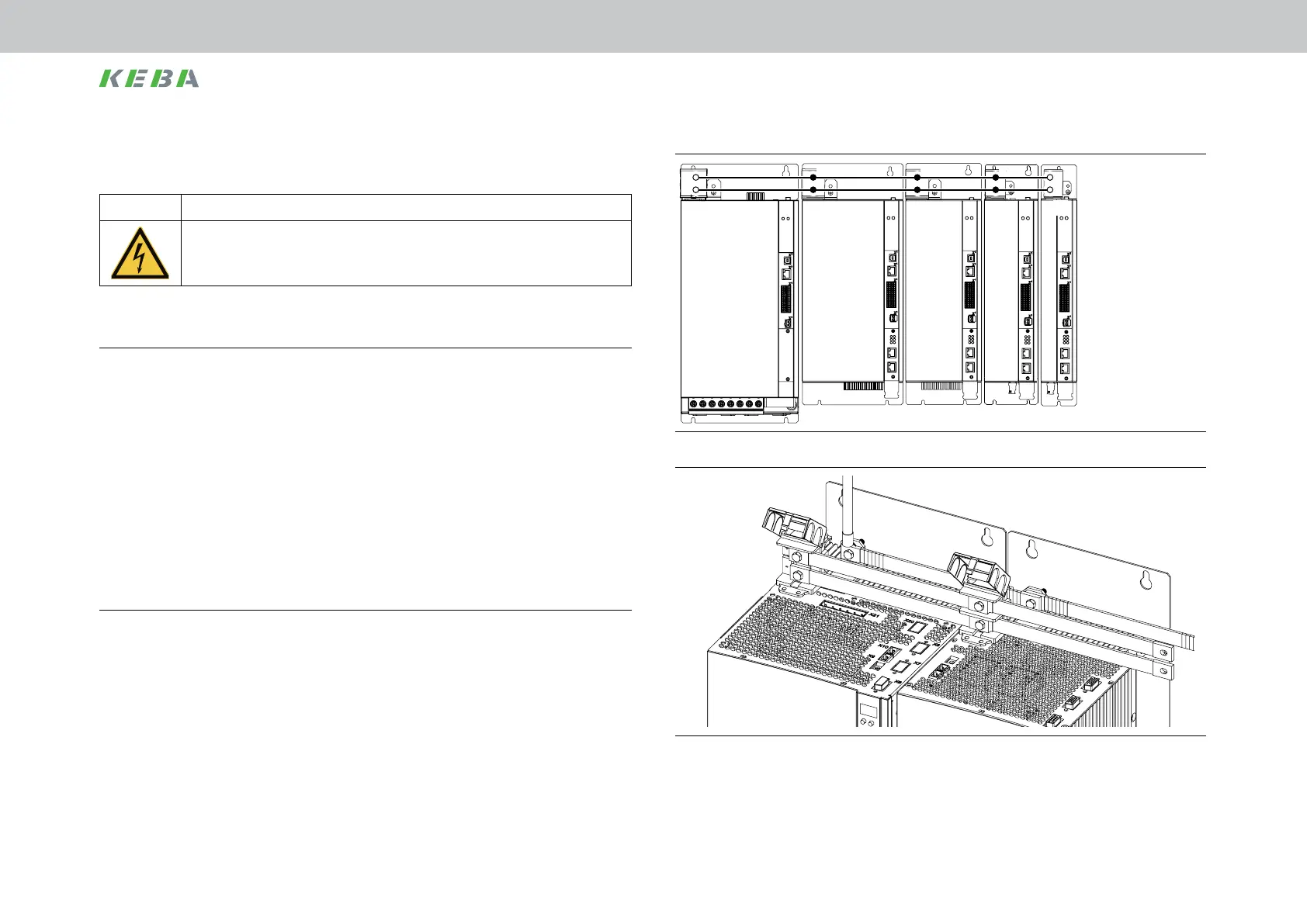

Figure 4.20 Schematic: connection, DC power supply BG5 to DC axis controllers
Figure 4.21 Detail: connection, DC power supply BG5
4.8 Connection of the DC power supply
DANGER! Risk of injury due to electrical power!
• Carelessness will result in serious injuries or death.
ThecoverforterminalX11(DCconnection)onsizesBG1toBG5istobeclosedaftertting
thepre-assembledconnectioncables.Operationwithoutacoverisnotallowed.
4.8.1 Connection, DC power supply (X11) BG5
1.
Connect terminal X11/+ on the supply unit to terminal X11/+ on the next DC axis
controller in the row.
Connect the DC power supply cable on the DC axis controller to the next DC axis
controller in the row.
For this purpose use the pre-assembled DC power supply cables.
2.
Connect terminal X11/– on the supply unit to terminal X11/– on the next DC axis
controller in the row.
Connect the DC power supply cable on the DC axis controller to the next DC axis
controller in the row.
For this purpose use the pre-assembled DC power supply cables.
3.
Close the touch protection on the DC link terminals X11.
You will nd further information in the ServoOne DC Axis Controller Operation
Manual.
Electrical installation
