Keba ServoOne Series User Manual

Operation Manual ServoOne Supply Unit
71
ID no.: 1101.21B.6-00 Date:04/2020
6 Diagnostics
6.1 Device states

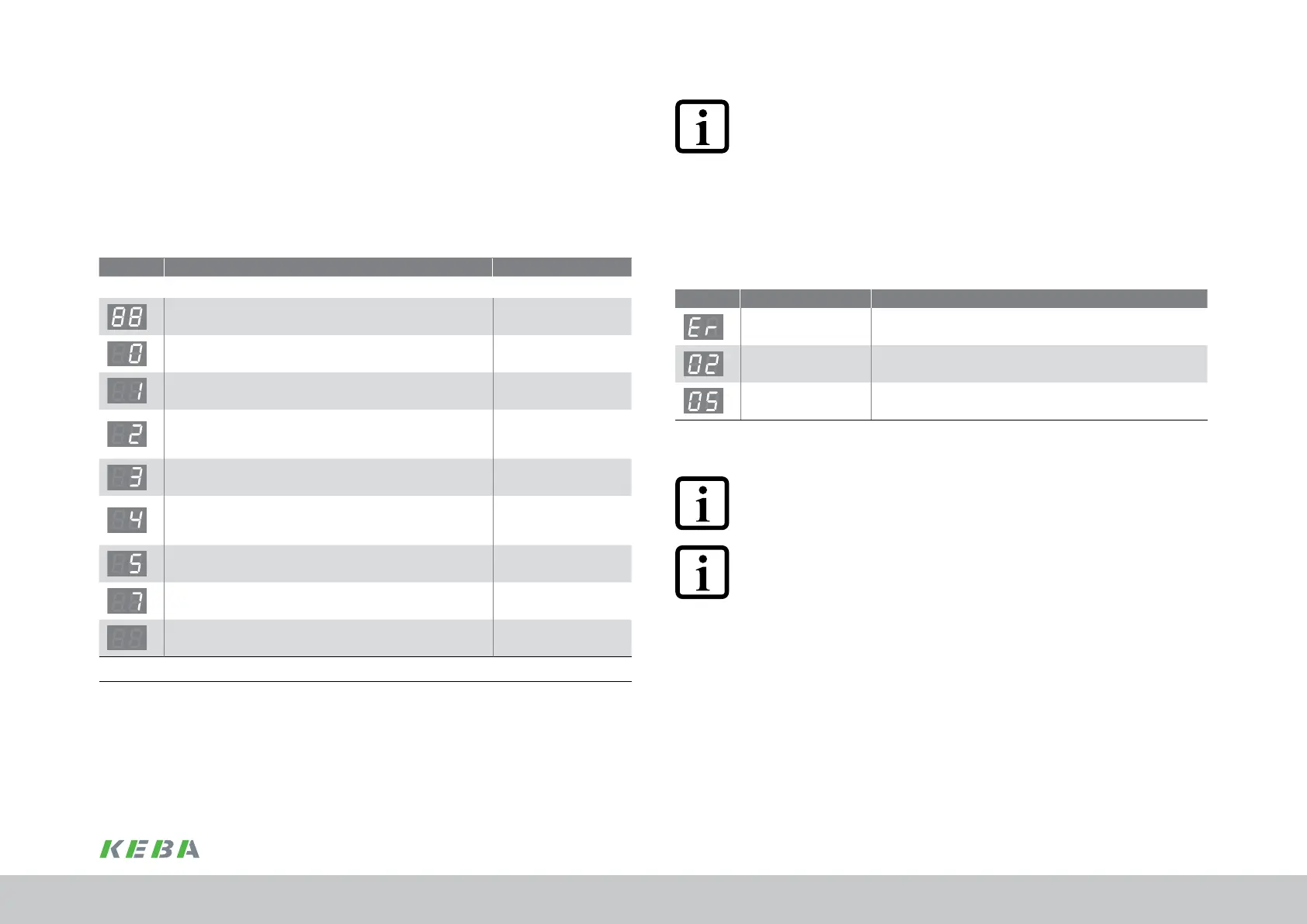

The device states can be read on the 7-segment display (D1, D2).
Display Meaning Parameter
System states
Device in reset state
Self-initialisation on device startup (Start)

1)
Not ready to switch on
(no DC link voltage)
(NotReady-
ToSwitchOn)

1)
Switch on disabled (ENPO not set )
(DC link precharged to ideal DC link voltage, power stage
not ready)
(SwitchOnDisabled)
Ready to switch on (ENPO set)
(power stage ready)
(ReadyToSwitchOn)
Switched on
(DC link voltage will be increased to setpoint / soft start
active)
(SwitchedOn)
Supply unit ready
(setpoint for the DC link voltage reached)
(OperationEnabled)
Fault reaction active (FaultReactionActiv)
Fault (for list of faults see chap.6.2, p.72) (Fault)
1) This not a "safe indication" in the context of EN 61800-5-2.
Table 6.1 Device states
NOTE:
The safety function STO (Safe Torque OFF) is not required for the ServoOne
supply unit, as no motors are connected. To be able to start the supply unit, a
jumper must be placed between X4/14 and X4/22.
If this jumper is forgotten, there is a ashing point on the device display. The
safety function STO is used for ServoOne DC axis controllers.
6.1.1 Errors
If there is an error, the following is displayed alternately: ER > 02 > 05 * ER > 02 > 05 ...
Display Meaning Explanation
Error ER = "Malfunction"
Error name: 02 = "Error in the parameter list"
Error description: 05 = "Function for checking the actual parameter list"
Table 6.2 Indication if there is an error
NOTE:
The errors can be reset according to their programmed reaction (ER) or only
by means of a 24V reset (X9/10) (ER.).
NOTE:
Errors marked with a point can only be reset once the cause of the error has
been rectied.
