Operation Manual ServoOne Supply Unit
46
ID no.: 1101.21B.6-00 Date:04/2020
4.7.5 Connection, mains 400/480VAC (X12)
Note the following points:
y Switching the mains power:
− In the event of excessively frequent switching of the precharging, the device
protects itself by means of high-impedance decoupling from the mains. After
a rest phase of a few minutes the device is ready to start once again.
y TN system and TT system: operation is allowed:
− For device with phase conductor voltage 3 x 400 V AC, 3 x 460 V AC and 3
x 480 V AC if
5. The star point of the supply system is earthed and
6. The supply system is compliant with the maximum overvoltage category
III as per EN61800-5-1 with a system voltage (phase conductor  star
point) of max. 277 V.
y IT system (isolated star point): operation is not allowed!
− If there is an earth fault the voltage is approx. twice as high. Clearances and
creepages as per EN 61800-5-1 are no longer maintained.
NOTE:
You will find further information on current carrying capacity, technical data
and ambient conditions in the appendix.
For connection diagrams for BG5, BG6a and BG7, see from chap.4.3.3 and
following text
4.7.4 Precharging (X44) and mains synchronisation (X45) for
BG7
The regenerative unit is synchronised with the mains via the terminals X45/S1,S2,S3,SN.
The regenerative unit in the BG7 is pre-charged via the terminals X45/ P1, P2, P3. This
contact is disconnected again from the main after pre-charging by means of an auxiliary
contact on the mains contactor, see Figure 4.11.
NOTE:
The cable must be protected, see chap.A.10 and chap.A.12. During
installation pay attention to the correct conductor phase angle.

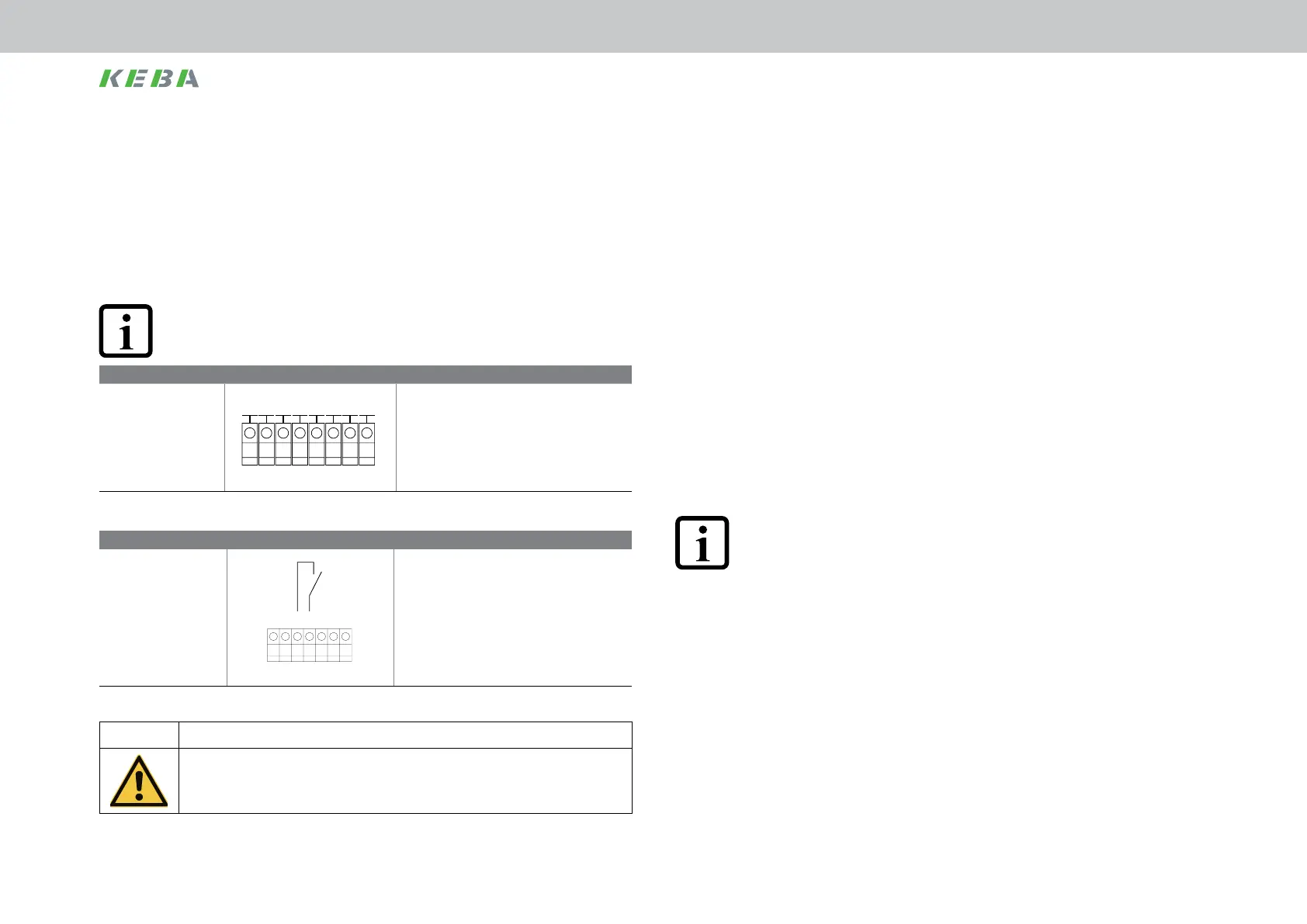

Specification, mains synchronisation X45
Mains synchroni-
sation
(S1,S2,S3,SN)
X45
P1 SNP2 P3 PE S1 S2 S3
• U = 400/460/480VAC
• I
Synchronisation
< 100mA
• Cable cross-section = 1.0...1.5mm
2
Table 4.7 Specication, mains synchronisation BG7
Specification, precharging auxiliary relay X44/ 3 + 4
Precharging auxiliary
relay (HREL)
X44
1 234567
• Connection ratings
• Umax = 30 V
• Imax = 6 A
Table 4.8 Specication, precharging auxiliary relay BG7
Caution! Risk of injury or damage to the device due to incorrect operation!
• Carelessness may result in minor injuries or damage.
Forsafetyreasons,duringoperationtheconnectionX44/3+4mustbeconnectedtoSELV/
PELVpotential.
Electrical installation
