4.18 Overview of the mains lter connections
In the following you will nd the layout with the corresponding positions and labels on the
terminals. For technical data on the mains lter, see chap.A.9, p.84.
L1.1 L2.1 L3.1
L1 L2 L3
PE
PE
L1 L2 L3 PE
L1.1 L2.1 L3.1 PE

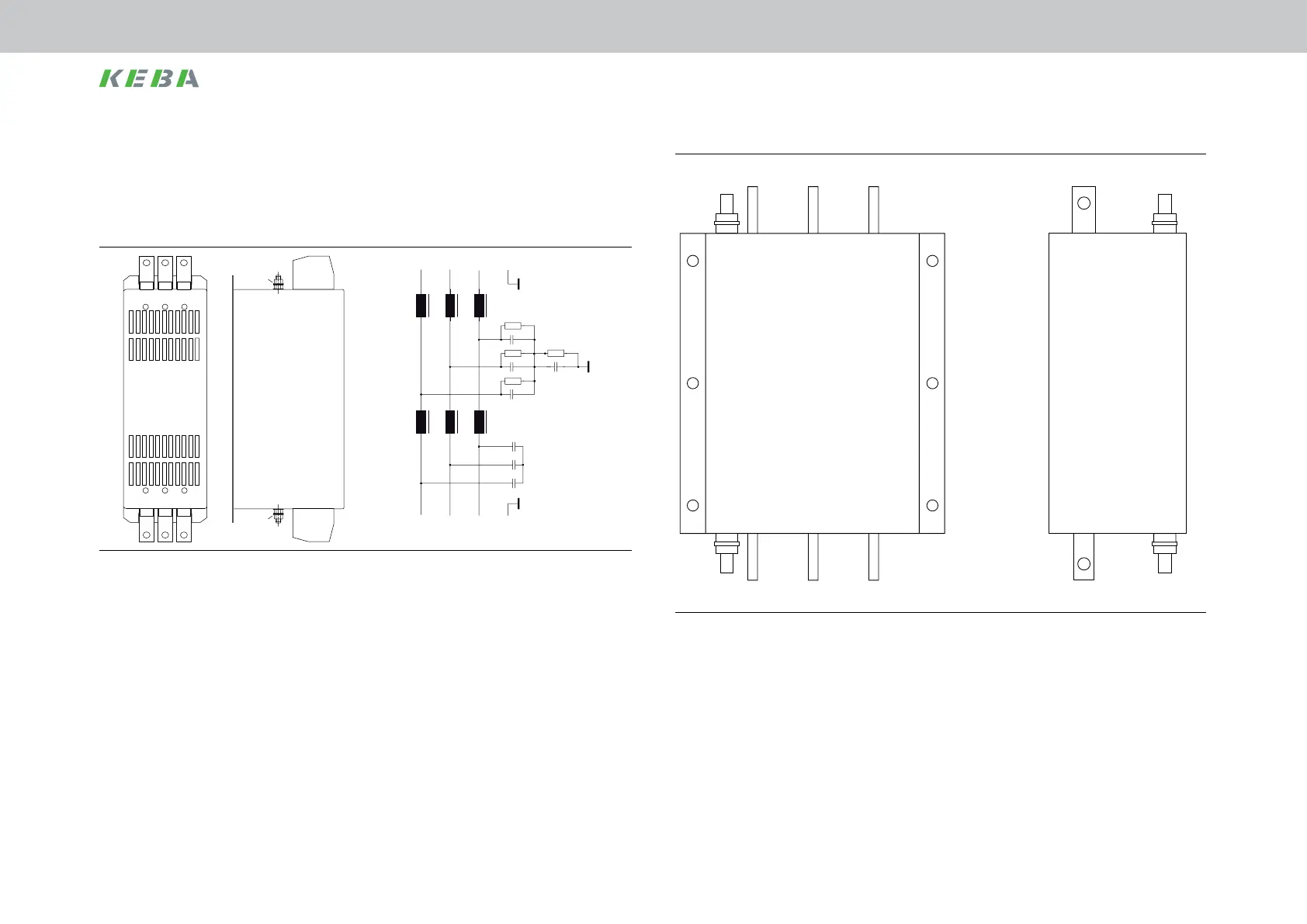

Figure 4.30 Connections, mains lter for BG5 and BG6a
PE L3 L2 L1
PE L3' L2' L1'
Figure 4.31 Mains lter, based on BG7 as an example
