Install the bearing in the reverse order of removal.
Attentions:
Lubricate front shaft, gear seat assembly, oil seal (lip), shaft sleeve, bearing 6301-2RS, and middle sleeve.
Recommended lubricant is calcium base grease.
Install front shaft (3), front wheel, gear seat
assembly (5) and Nut M12Χ1.25 (14).
Gear seat assembly shall be halved at
installation.
If odometer gear seat assembly does not
align and lock the front shaft, the odometer
gear seat will be distorted.
Install front brake assembly to the front
brake disc.
Tighten front shaft.

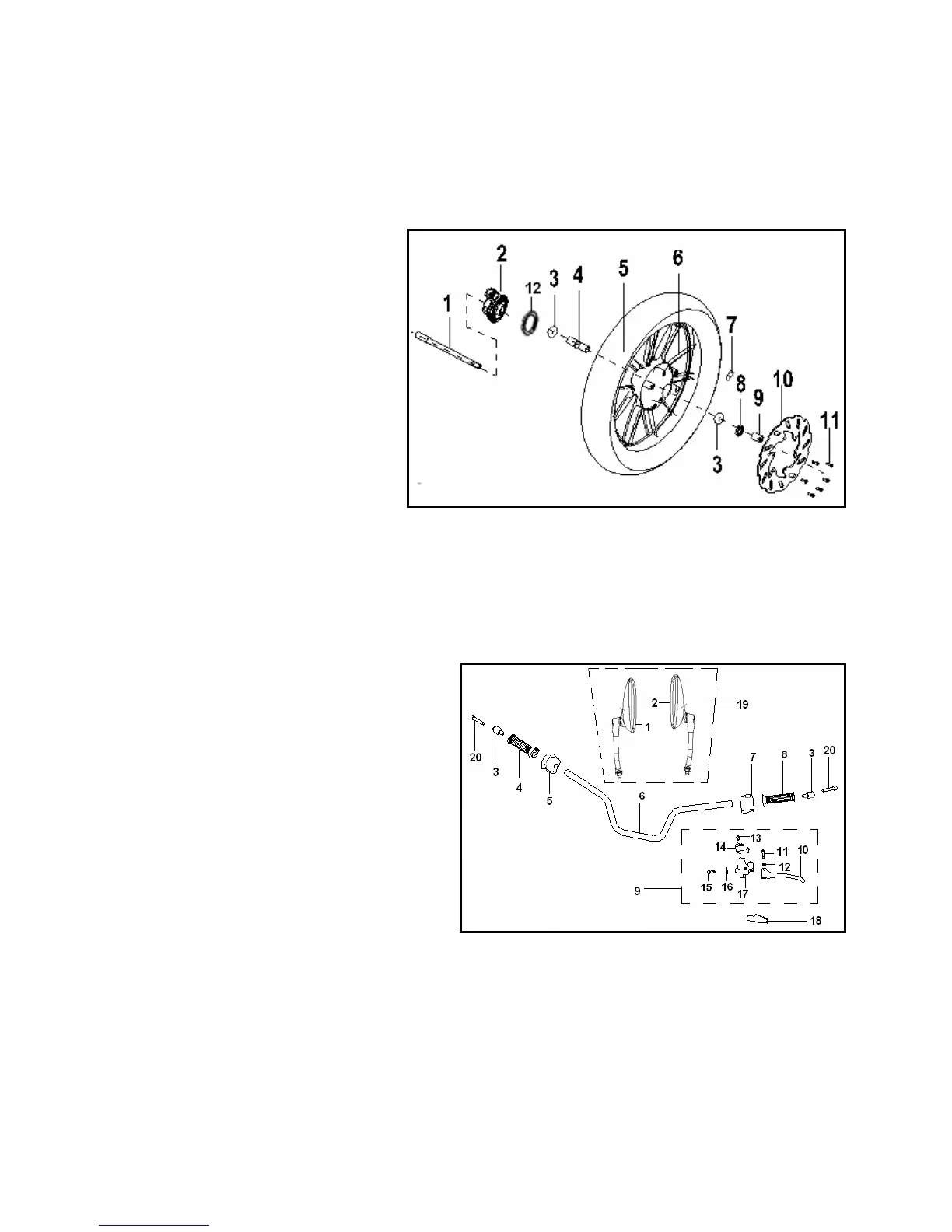

* Note: Refer to Page 95 of the manual
for detailed KW125 Motorcycle front
wheel disassembly and assembly diagram
Front wheel locknut tightening torque: 55-62 N·m
7.4 Steering Handle
7.4.1 Removal
Remove left and right rear mirror assemblies (1) and
(2).
Open the fixed cover
Remove left handle assembly (10) of front brake.
Remove balancer assemblies (3) and (20).
Remove left and right combination switches (5) and
(7).
Remove left handle grip assembly (8), throttle
control handle (3) and steering handle upper holder
mounting bolt (hexagon socket bolt M8X25) (13).
Take down steering handle upper holder (17).
Remove steering handle assembly (6).
7.4.2 Installation
* Note: Refer to Page 96 of the manual for KW125 Motorcycle steering handle disassembly and assembly
diagram.
Install the steering handle in the reverse order of removal.
Top bracket assembly mounting bolt
