1.3 Storage Battery
1.3.1 Battery Removal

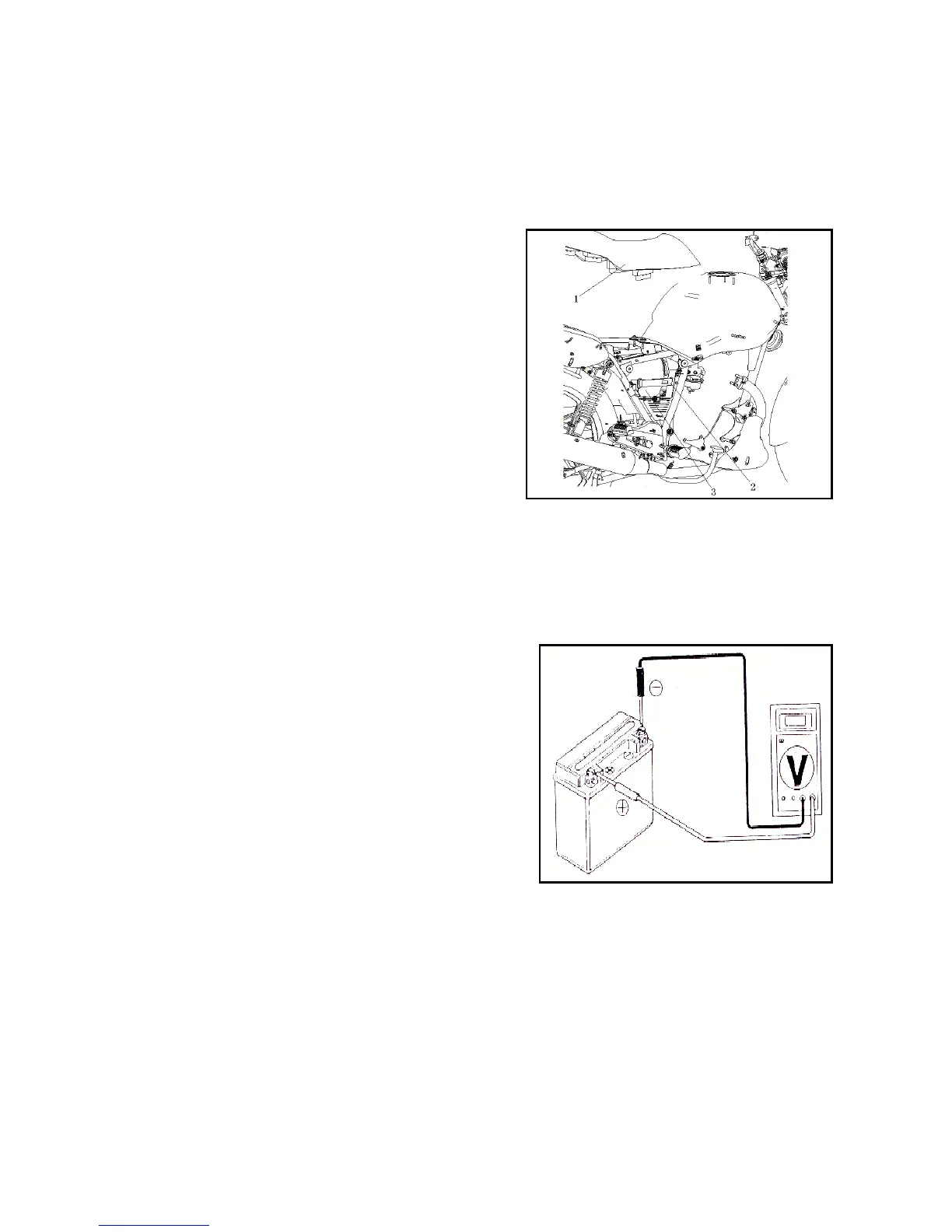

Take down the right protecting plate (1).
Disconnect the battery negative (-) lead wire first and then the positive (+) lead wire.
Remove the battery breather.
Remove battery mounting bracket (2).
Remove the battery (3).
Warning!
During positive lead wire disconnection, be sure to prevent the
tools being used from touching the frame; or it will result in
short circuit sparks, which may ignite gasoline and damage
battery. It is dangerous!
During the whole motorcycle adjustment, please do not
disconnect the battery, which may result in interior component
damage of the whole vehicle
Install the battery in the reverse order of removal.
*Attention
To avoid short circuit, please connect positive (+) lead wire first, then the negative (-) lead wire.
Battery charging (circuit voltage) inspection
Open the battery cover and remove battery pressure plate assembly.
Disconnect lead wire of the battery connector.
Measure voltage between terminals of the battery
Fully charged: 13.1V
Undercharged: 12.3V (battery does not work for 1hour)
* Attention
A voltmeter shall be employed to check recharged battery.
1.3.2 Charging
Connection method: positive pole of battery charger is
connected to battery positive lead wire; Negative pole of
battery charger is connected to battery negative lead wire.
Warning!
• Battery shall be away from fire.
• Shut off charger switch first before or after charging in case sparks may be generated at connection parts, which
may result in explosion.
• During charging, please take the current time labeled on the battery as basic time.
* Attention
• Battery quick recharging is not recommended except in case of emergency.
• After recharging, wait at least 30minutes and then measure the battery voltage.
