5.2 Fault Diagnosis
Braking System
Poor braking performance Brake drags or tight handle
1. Improper brake adjustment 1. Improper brake adjustment
2. Worn braking shoe assembly and brake disc 2. Worn braking shoe assembly and brake disc
3. Braking shoe assembly improperly installed 3. Braking shoe assembly improperly installed
4. Braking shoe assembly and brake disc contaminated
Noisy Braking
1. Braking shoe assembly and brake disc are worn.
2. Braking shoe assembly and brake disc are contaminated
5.3 Front Hydraulic Brake
5.3.1 Removal
* Attention
• Replace braking shoe assembly.
• If a braking shoe assembly will be used
again, please mark it on the side before
removal so as to re-install it to its original
place.

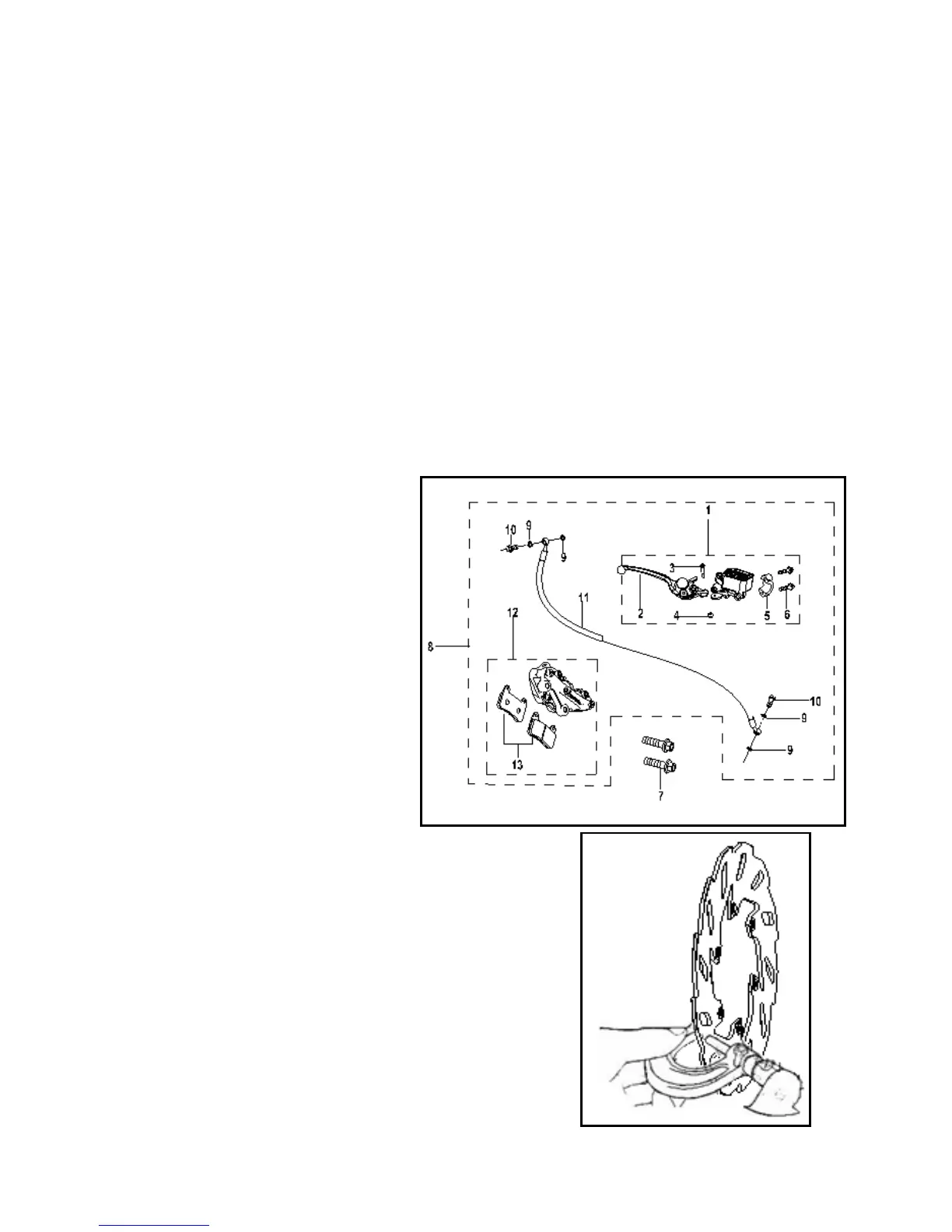

Remove from right handle and front shock
absorber the following assemblies.
Front brake:
1. Hydraulic brake handle (7)
2. Oil pump block assembly (5)
3. Braking hose assembly (4)
4. Braking cylinder assembly (6)
5. Hydraulic brake disc (2)
Note: Detailed breakdown drawing refers to P85.
* Attention
•Please do not contaminate braking shoe assembly with oil while
assembly or disassembly
•Please use specified detergent to clean the braking assembly, or it may
reduce braking performance.
