Rear Swing Arm
A
Side clearance (opening swing arm end) limit value：1.0mm
B
Tightening torque of Nut 3 in the diagram is：70-83 N·m

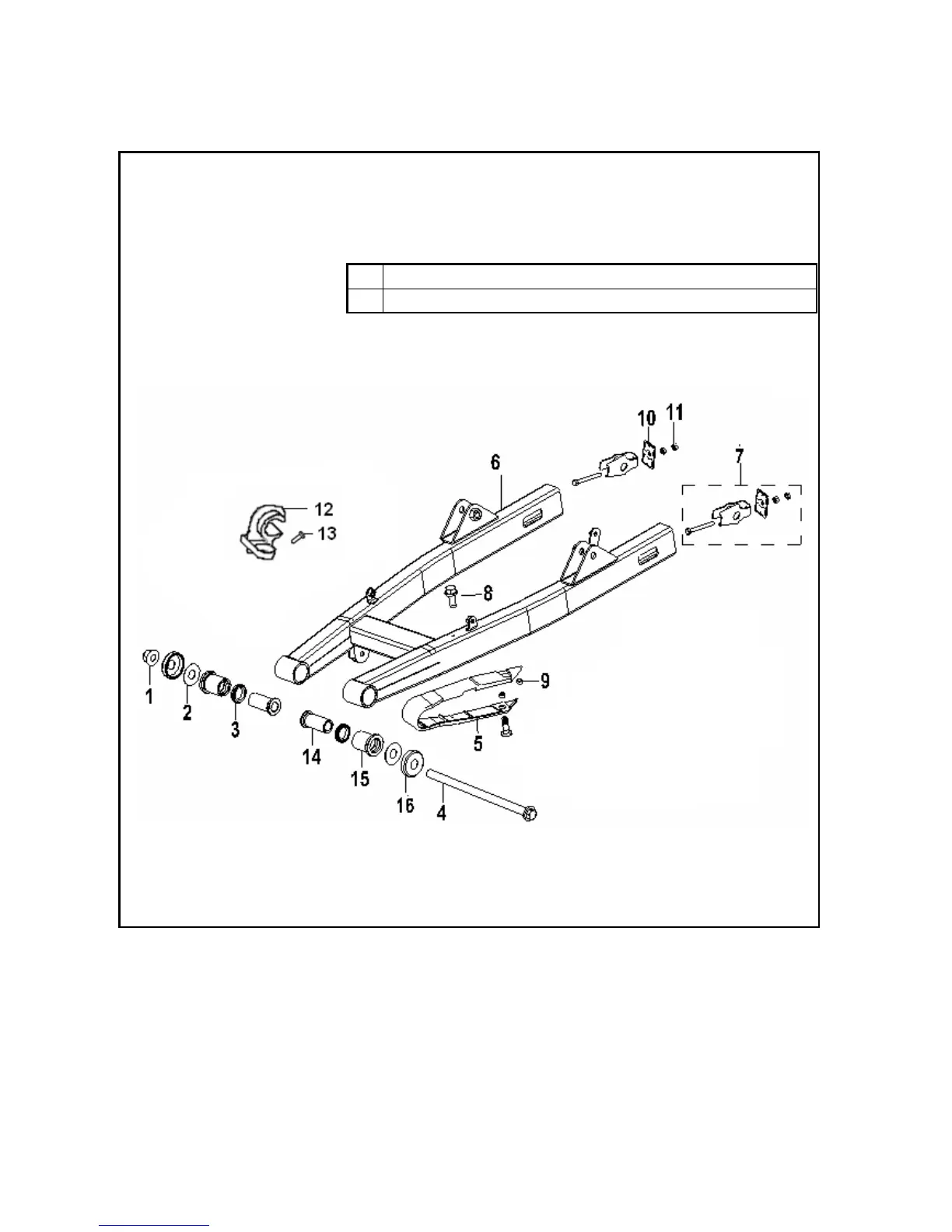

1 Locking nut M14X1.5 2 Rear swing arm mounting washer 3 Oil seal 4 Rear swing arm shaft
5 Chain protector 6 Rear swing arm welded assembly 7 Chain adjuster 8 Screw M5X12 9 Spacer 2
10 Chain adjuster plate 11 Nut M8 12 Rear hydraulic brake wire clip 13 Screw M6X12
14 Intermediate spacer 15 Rear swing arm bush 16 Dust ring assembly
