Tightening torque: 40-60 N·m

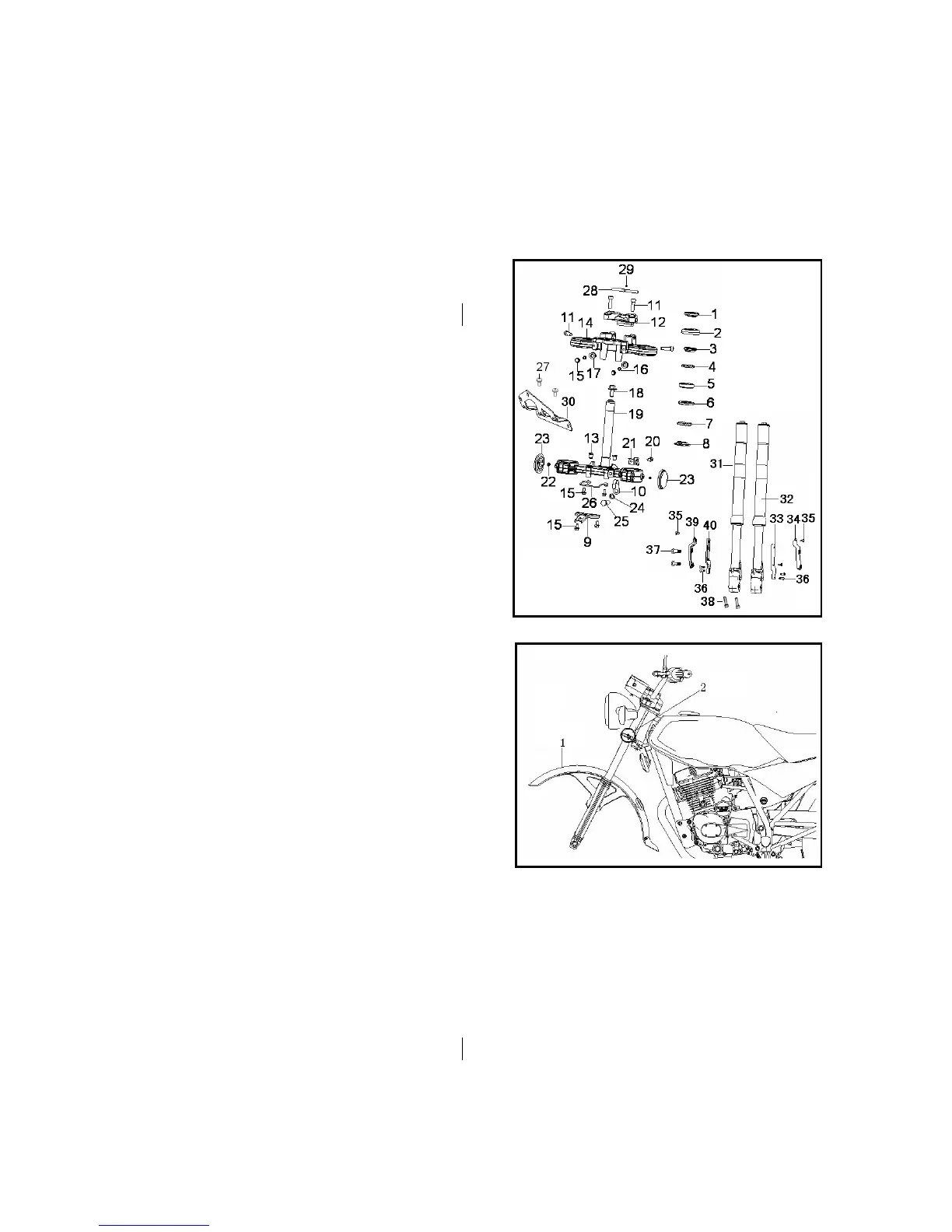

7.5 Front Fork
7.5.1 Removal
Support the motorcycle with the middle stand.
Remove front wheel.
Remove brake caliper and brake pipe clip.
Remove front mudguard (1) and reflector (2).
Remove the handle.
Screw off upper bracket mounting bolt and lower bracket
pinch bolt.
Remove headlamp bracket.
Remove the front fork.
Tools:
Steering handle welded assembly mounting bolt wrench.
Locknut wrench
Special remover for bearing steel bowl
* Attention:
Clean the opening part of protecting plate of motorcycle block with a cloth.
Upper and lower bearing steel bowls shall be removed with special bearing steel bowl remover.
7.5.3 Installation

KEEWAY RKV125 Specifications

General

Engine Type	Single cylinder, 4-stroke, air-cooled
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Front Brake	Disc
Rear Brake	Drum
Cooling System	Air-cooled
Seat Height	770 mm
Weight	135 kg
Fuel Tank Capacity	17 L
Rear Suspension	Dual shock absorbers
